Home > Electrical & Electronics > Electric Motor > DC Motor > 28mm Brushless Motor Price

28mm Brushless Motor Price

Name: 28mm Brushless Motor Price
Brand: dong hui
SKU: 112069155
Availability: InStock

US$ 6 - 25 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

dong hui

Model Number:

28mm brushless dc motor

Contact Supplier Request Quote Chat Now

Shenzhen Xin Dong Hui Motor Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shen zhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name dong hui

Model Number 28mm brushless dc motor

Usage Fan, Home Appliance, Other, Fan, Home Appliance, 28mm brushless dc motor

Certification ROHS

Type Micro Motor

Torque 12mNm

Construction Permanent Magnet

Commutation Brushless

Protect Feature Other, 28mm brushless dc motor

Speed(RPM) 4480rpm no load

Continuous Current(A) 0.11A

Output Power 4.04W

Voltage(V) 12V

Efficiency IE 1

Specifications

1.Long life, low noise, low EMI;
2.CW & CCW, Signal function available;
3.Locked rotor protection, Stepless speed regulation.

Specifications:

28mm dc brushless motor

1.Low noise, Low EMI;

2.Long life 10000~30000 hours;

3.CW & CCW, Signal function available;
4.Locked rotor protection, Stepless speed regulation;

5.High effciency, Adjust speed, Medium cost.

28mm dc brushless motor:

Performance:

28mm dc brushless motor:

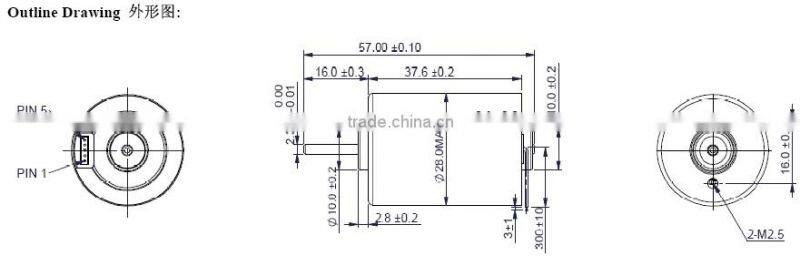

Outside drawing:

24mm dc brushless motor:

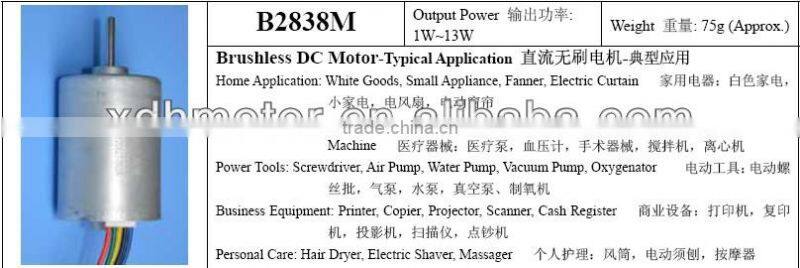

Application:

24mm dc brushless motor:

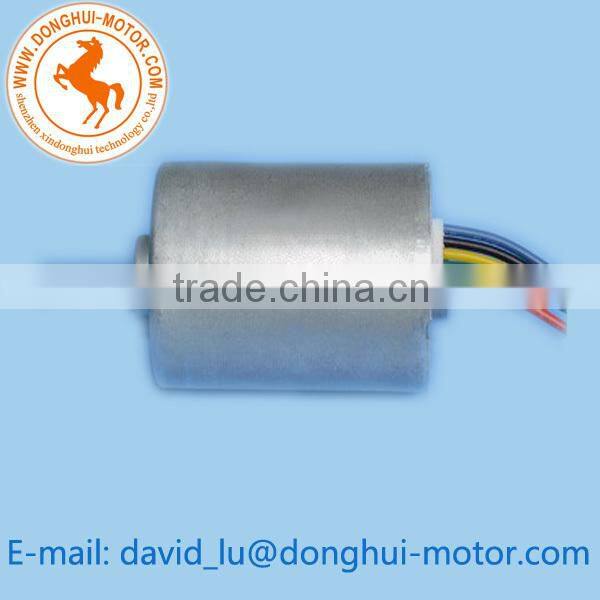

Photo:

Factory Show:

Since Dong Hui Motor established in 2003, has been committed to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless dc motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance,office automation equipment, medical equipment, power tools, automotive and other fields. Learn More About us:

1. Our main products: Dia4~100mm DC Micro motor, Auto dc motor, Electric motor,Coreless motor, Brushless dc motor, Gear motor, DC motor, Brush dc motor, Spur Gear motor, Micro motor, Vibration motor etc.

2. Products size range: Diameter: 4-100mm

3. DC Voltage range: 1.5V -42V

AC rectify: 100V, 110V, 220V, 230V, 240V etc.

4. Speed range: 1 RPM-30,000RPM

5. Stall torque: 1g.cm-30kg.cm

6. Application: Home appliances, Business equipment, Medical & Personal care, Power Tools, Toys & Model, Precision Instrument, Office equipment, Automotive, Audio& Visual equipment etc.
