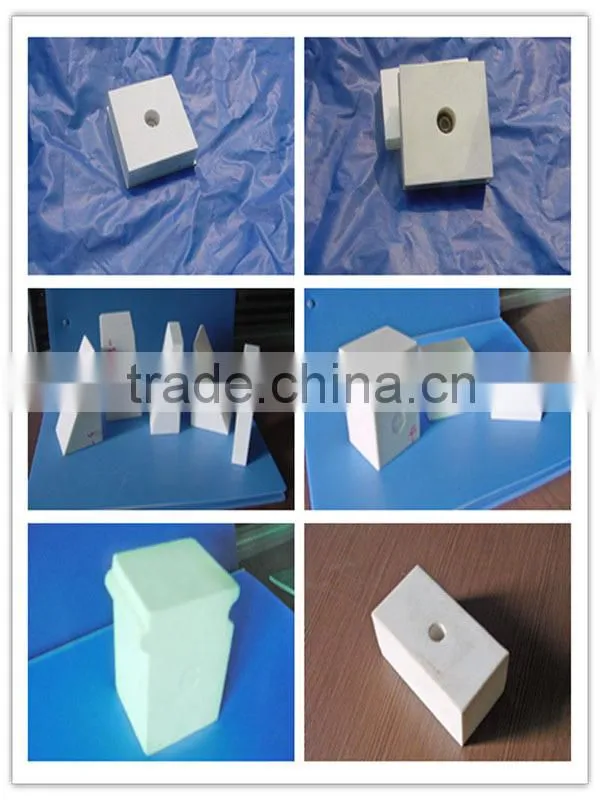

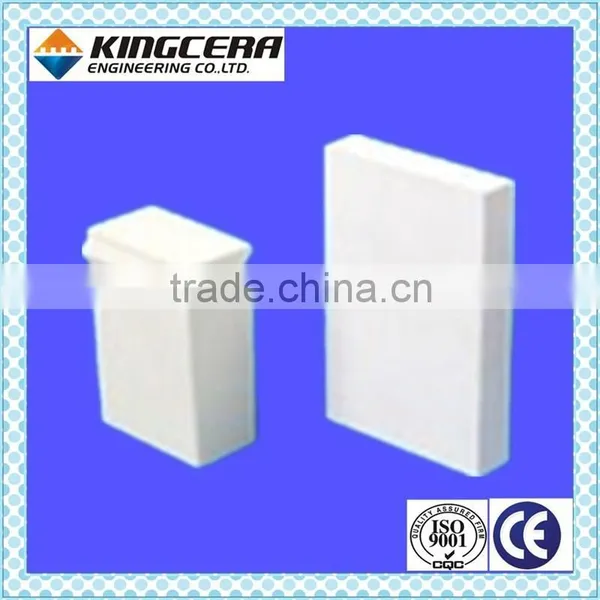

Alumina ceramic tile(NMC-Z )
This alumina ceramic lining is directly affixed on the inner wall of equipment by our high-temperature-resistance inorganic adhesive.This alumina ceramic lining is applicable for the air and wind power-feeding, and can be used in a temperature of 350 in long time without aging and peeling.
Kingcera has developed various series of alumina ceramic lining that widely used in wear resistance and system protection in different industries and thick ceramic bricks for special application as well.
Adopting high purity alumina powder as materials, Kingcera alumina ceramic lining have excellent characteristics of high hardness, superior wear abrasion resistance, amazing impact resistant ability, smooth surface, outstanding dimensional stability, low density and convenient assembly in practice.
The alumina ceramic lining of these series have many shapes and the structures
are complicated. In most cases, we will design the products according to the clients' requirements.
Advantages:
1. Superior abrasion resistance
2. Great acid&corrosion resistance
3. Dimensional stability
4. Chemical resistance
5. High hardness
6. Excellent impact and high temperature resistant ability.
Applied industry:
The wear resistant alumina ceramic linings are widely used in the cement ,
steel ,chemical ,mining ,smelting,port ,coal fired thermal power plant .
The alumina ceramic lining are a ideal wear resistance material for delivering the sand,mine,slag ,ash ,dregs in Pneumatic ,hydraulic material handling and feeding system.

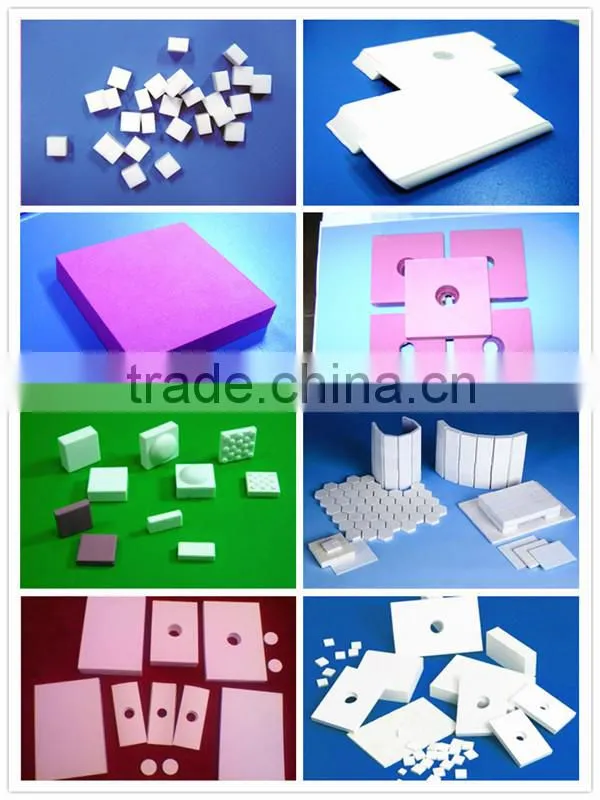

The alumina ceramic lining size:
NMC-Z1 |
17.8*17.8*5 |
NMC-Z2 |
17.8*17.8*7 |
NMC-Z3 |
17.8*8.9*3 |
NMC-Z4 |
17.8*8.9*5 |
NMC-Z5 |
17.8*17.8*3 |
NMC-Z6 |
17.8*17.8*4 |
NMC-Z7 |
17.8*17.8*5 |
NMC-Z8 |
17.8*17.8*6 |
NMC-Z9 |
17.8*17.8*10 |
NMC-Z10 |
10*10*6 |
NMC-Z11 |
10*10*7 |
NMC-Z12 |
10*10*3 |
NMC-Z13 |
10*10*10 |
NMC-Z14 |
50*50*25 |
NMC-Z15 |
100*50*25 |
NMC-Z16 |
100*50*30 |
NMC-Z17 |
100*150*25 |
NMC-Z18 |
100*150*30 |
The technical spcifications:
The performences |
Content of AL2O3 |
≥95% |
Density |
≥3.8 g/cm3 |
|
Rockwell hardness |
≥85 HRA |
|
Rupturing toughness |
≥4.8MPa.m1/2 |
|
Compression-resistant strength |
≥850MPa |
|
Bend-resistant |
≥290MPa |
|
Thermal conductivity |
20W/m.K |
|
Thermal expansion coefficient |
7.2×10-6m/m.K |
The making procedure of the alumina ceramic tile

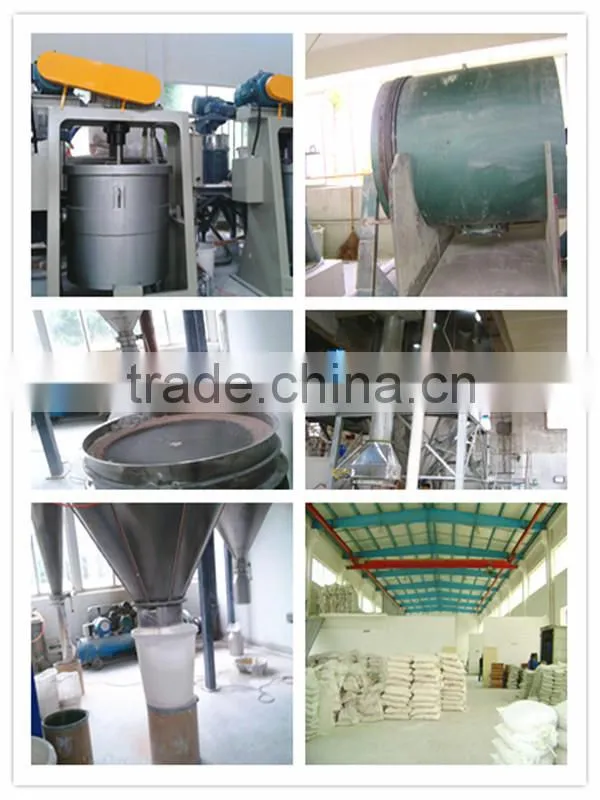

1. Powder makeing

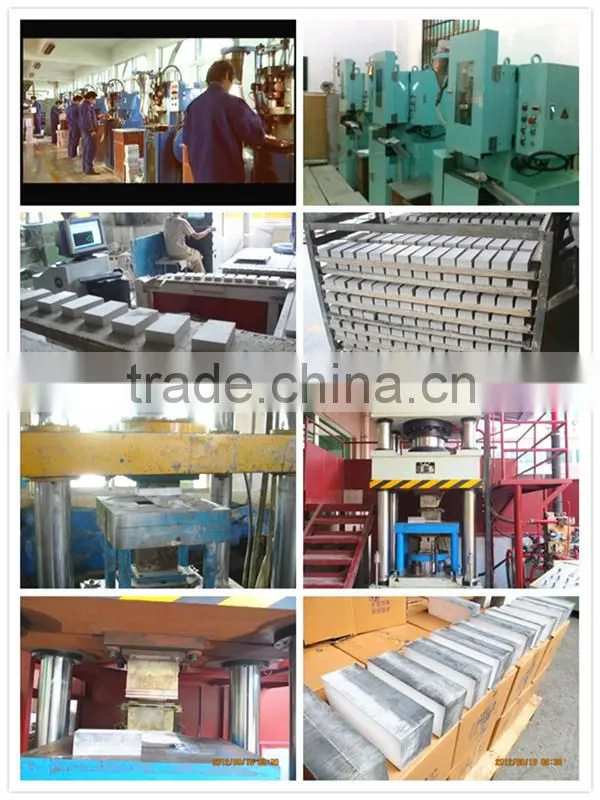

2.The pressing of alumina ceramic powder

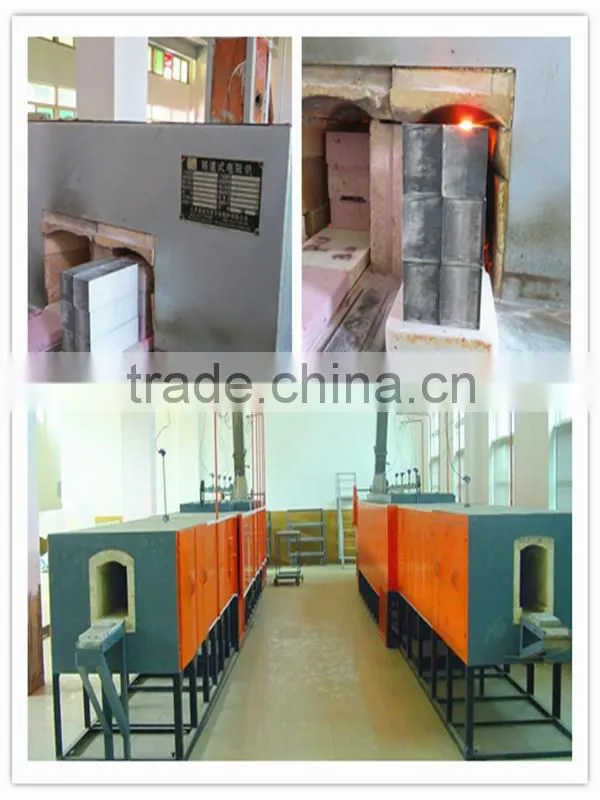

3.The firing of the alumina ceramic tile

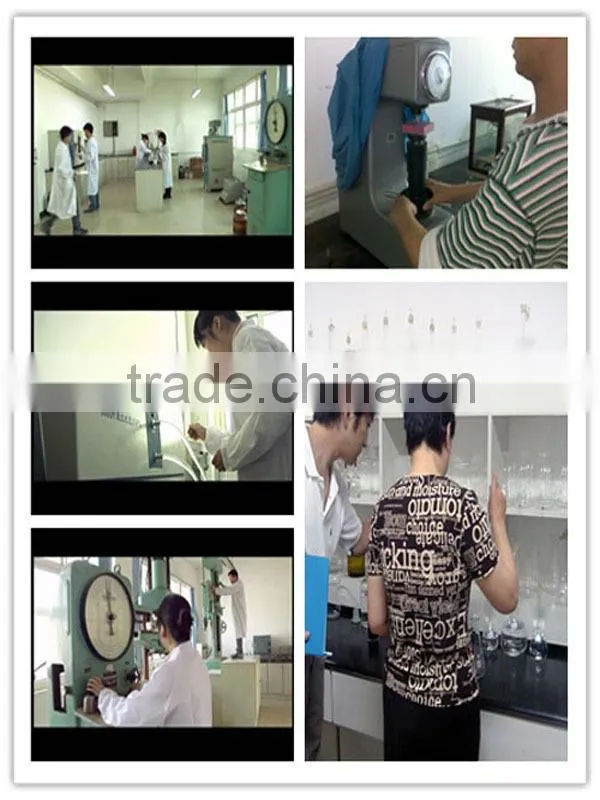

4.The checking for the alumina ceramic tile

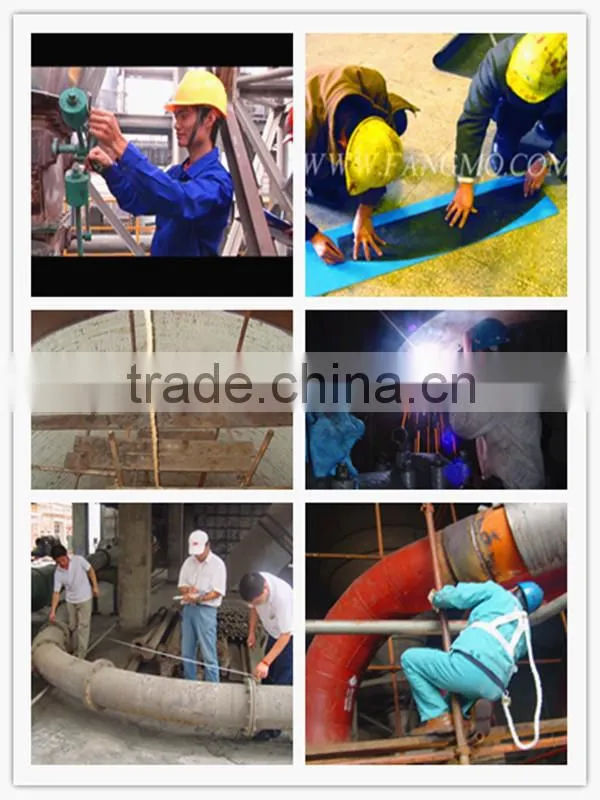

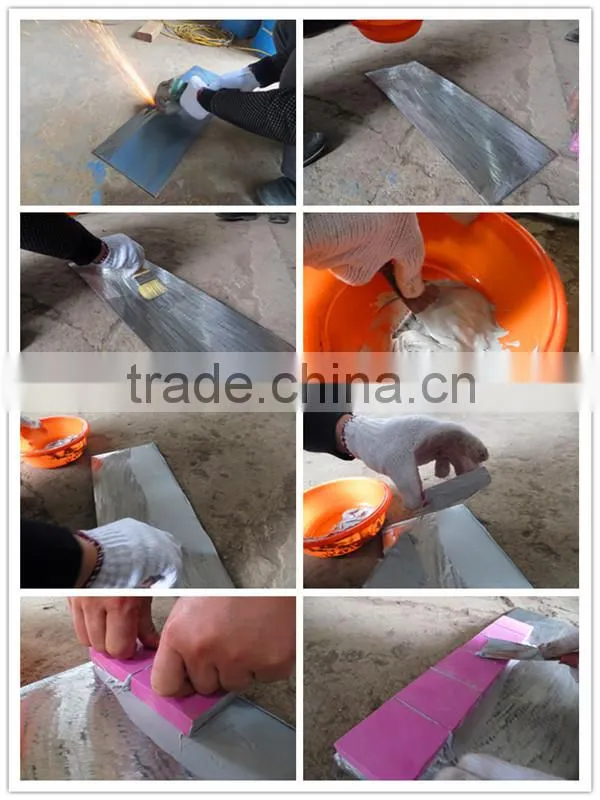

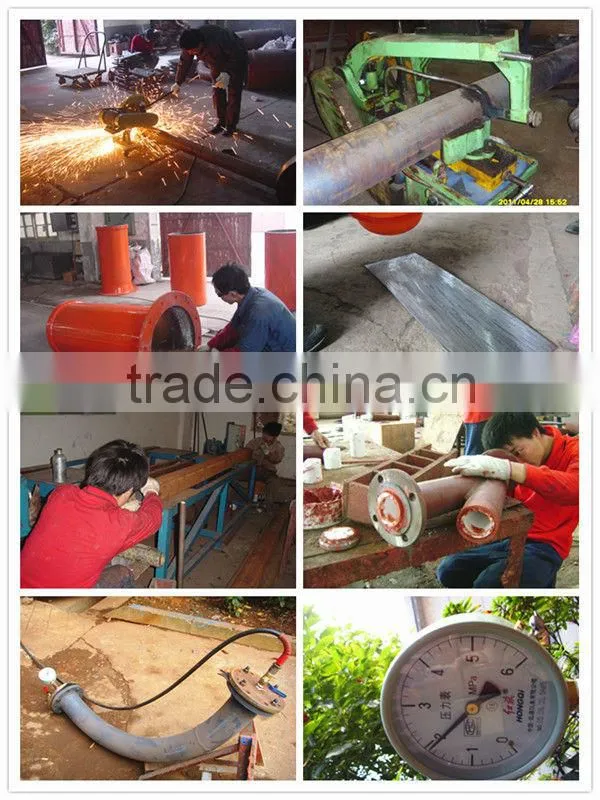

5.The installasions

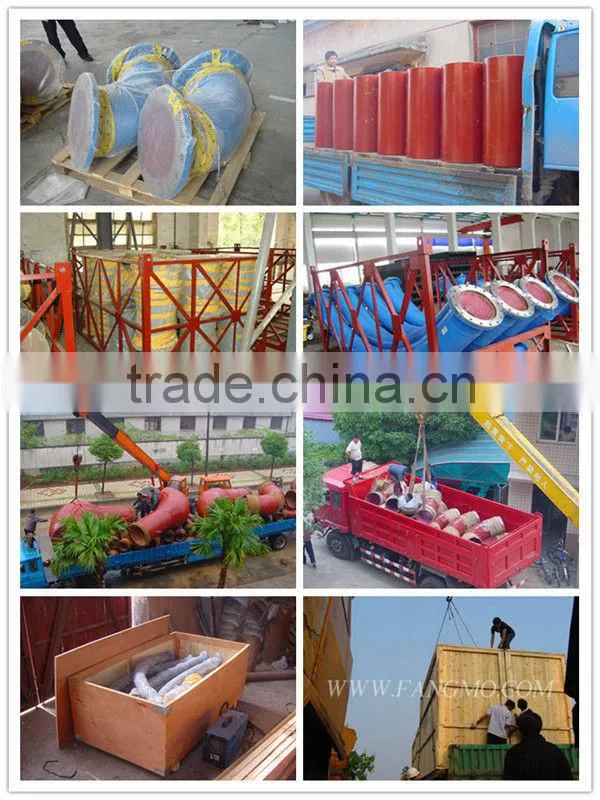

6.The packages and the delivery

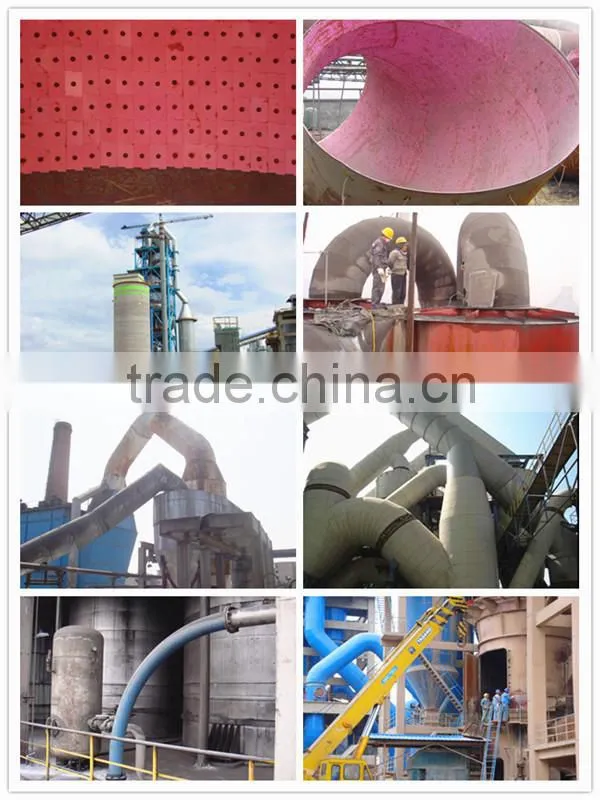

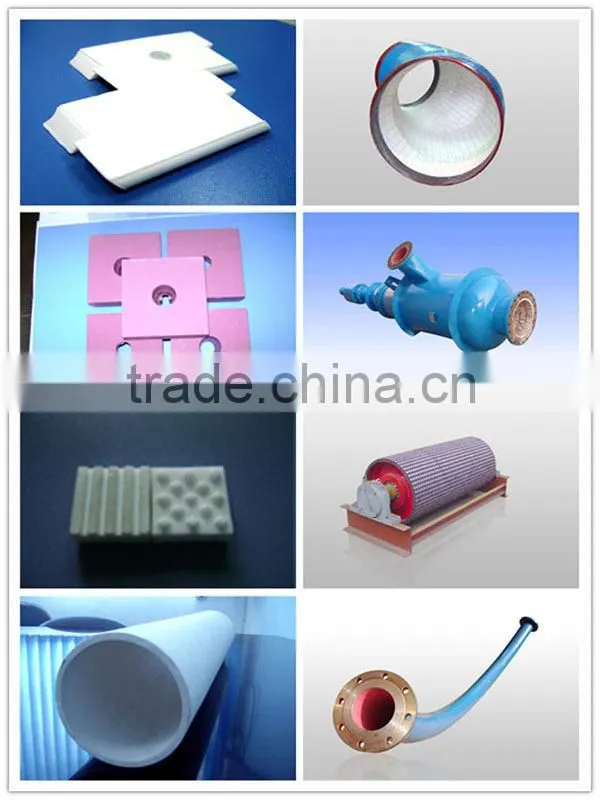

7.The Applications for the alumina ceramic tile
8.Our Exhibitions and customers
