12v dc Electronic Door Lock Actuator Motor | FK-280A

Specifications

12v car door motor electric Door Lock Actuator motor car back mirror motor 12V dc motor high rpm
1. Dia25*L30.5 mm, shaft 2mm
2. High quality high rpm
3. Plastic End Cap
4. ROHS comliance

12v car door motor electric Door Lock Actuator motor car back mirror motor 12V dc motor high rpm

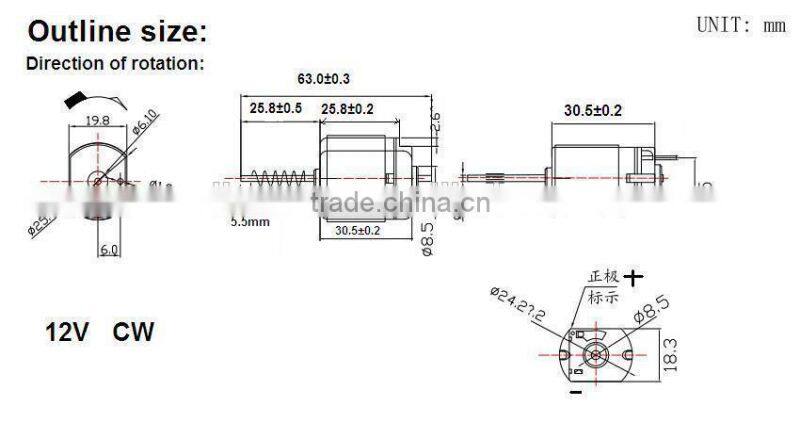

Outline Drawing for your reference.

Technical characteristic:(only for reference,we are capable of meeting the sourcing needs of diverse buyers).

Drawing

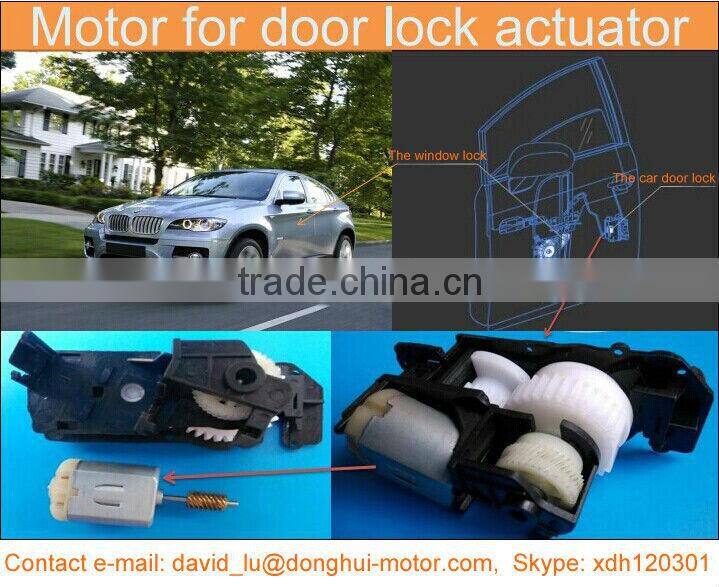

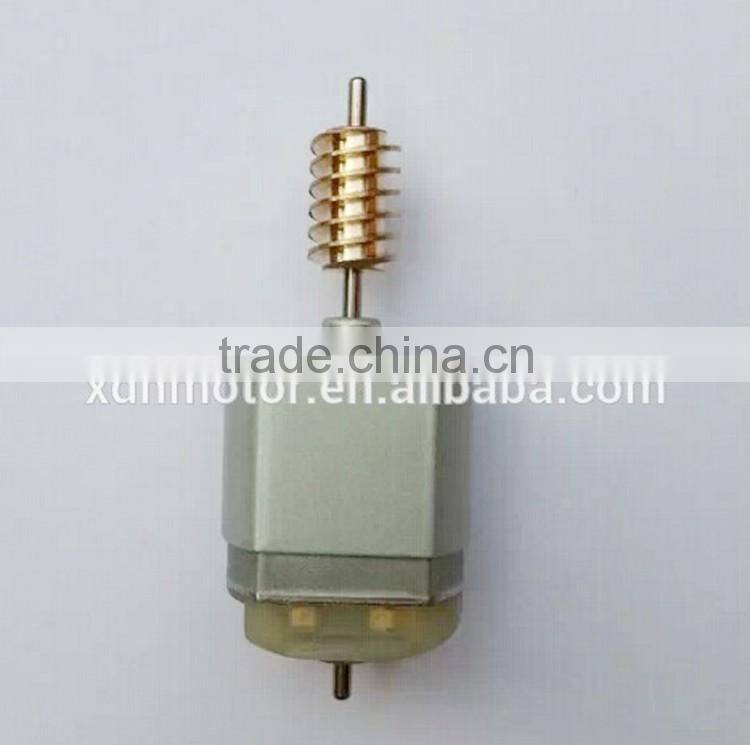

Photo of door lock actuator motor:

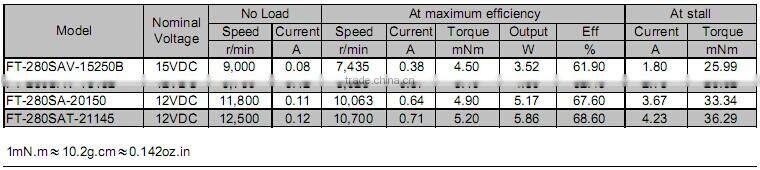

Specifications of door lock actuator motor:

Performance curve  of door lock actuator motor:

Factory Show of door lock actuator motor:

Production equipment of door lock actuator motor:

The production line of door lock actuator motor:

Since Dong Hui Motor established in 2003, has been committed to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance,office automation equipment, medical equipment, power tools, automotive and other fields.
