Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > CYJ-12 Manunal Operation Laboratory Hydraulic Press With Hydraulic Pressure

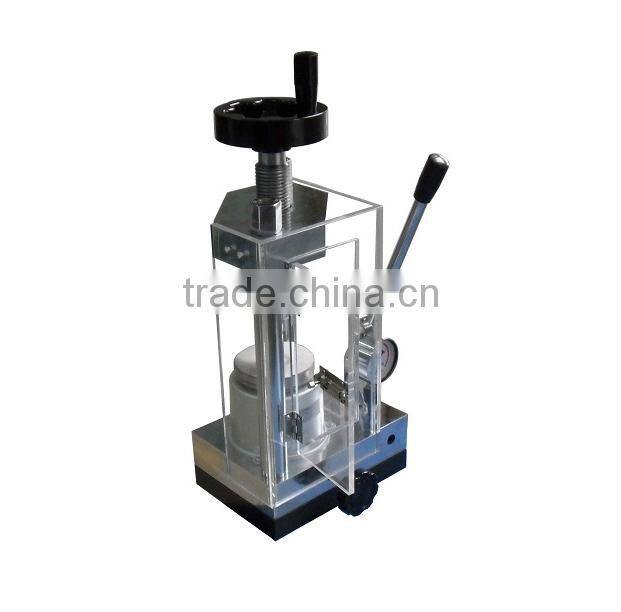

CYJ-12 Manunal Operation Laboratory Hydraulic Press With Hydraulic Pressure

CYJ-12 Manunal Operation Laboratory Hydraulic Press With Hydraulic Pressure photo-1

CYJ-12 Manunal Operation Laboratory Hydraulic Press With Hydraulic Pressure photo-2

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Liaoning, China

Model Number:

CYJ-12

Contact Supplier Request Quote Chat Now

Zhengzhou CY Scientific Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

zhengzhou qingdao shanghai tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Liaoning, China

Model Number CYJ-12

Machine Type Pipe and Tube Bending Machine

Raw Material Steel Bar

Material / Metal Processed Aluminum

Power Hydraulic

Automation Manual

Extra Services Cut To Length

Certification CE

After-sales Service Provided Overseas third-party support available

CYJ-12 Manunal operation Laboratory Hydraulic Press with Hydraulic pressure

Parameters of Laboratory Hydraulic Press

Max Pressure

12 metric tons
Pressure gauge is built in

Gauge Pressure Value to Force Conversion

Gauge Displayed Pressure Value (Mpa)	5	10	15	20
Actual Force Applied on the Hydraulic Cylinder (Ton)	3	6	9	12

Notes:
- o The actual force applied on the Hydraulic Cylinder (Ton) equal to the force applied on your working piece
- o For calculating the actural pressure (Mpa) applied on your working piece, please follow the equations in below:

P = T/πr^2

P: Pressure (Mpa) applied on your working piece
T: Force (metric ton) Applied on the Hydraulic Cylinder
π: ~3.14
r: Radius (cm) of your working piece
*1000 Kg = 1 Metric Tone; 1 Mpa = 10 Kg/cm2

Max Lifting Height of Bottom Cylinder

25 mm

Top Support Screw Adjustable Height

150 mm

Protection Cover

Transparent plastic ( click picture below ) for safety

Note: Must close the protection door during pressing

Dimensions of Machine

270mm(L) x 200mm(W) x 450mm(H)

Length of Press Rocker

16.5''

Net Weight

30 Kg ( 66 lbs)

Dimensions of Shipment

40" x 25" x 28"

Weight of Shipment

120 lbs

Warranty

The pressing machine was quality inspected in USA, lifetime support is provided
One year limited standard warranty (Extended warranty is available
upto 5 years at extra cost)

Compliance

CE Certified

Features of Laboratory Hydraulic Press

Model CYJ-12 is a CE Certified desktop manual pressing machine up to 12 metric tons for materials / chemistry research laboratories to prepare compound ceramic sample. CYJ-12 has built in Hydraulic pump with auto return function and transparent protection cover. It is suitable to be operated in a glove-box under oxgyen and inert gas.
