Help CenterSK840A Semi-automatic Case Make
US$ 12,850 - 12,850
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Hardcover Equipment
Power:
Electricity
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ou ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Photo Album Book Edge Stamping MachineNegotiableMOQ: 1 Piece -
Pneumatic Picture Creasing Machine for Album Making (WD-560)US$ 400 - 450MOQ: 1 Piece
-
Manual Press Machine Book Pressing Flat Machine (WD-900B)NegotiableMOQ: 1 Piece
-
Album Three-in-One Making Machine Photo Book Making MachineUS$ 1,200 - 1,250MOQ: 1 Piece
-
Manual Press Machine Book Pressing Flat Machine (WD-900A)NegotiableMOQ: 1 Piece
Type
Other, Hardcover Equipment
Power
Electricity
Place of Origin
Zhejiang, China
Brand Name
WD
Model Number
WD-SK480A
SK840A Semi-automatic case maker
Hot gluing Auto edge folder
Program control Optaical fibre detection
Quantitative filling water Corner cutter
Suction assistance 220V power supply
Wide scope of application:
Not only suitable for the common hard cover papers, but also suitablt for the leather and other materials.
Cheaper cost:
Microthermal protein glue dry quickly, no deformation and lower cost.
Easy operation:
Reciprocating automatic edge fold system fold two edges automatically at one time.
High speed optical fibre detection control the length and position of the paper feeding accurately.
Multi-functions:
Independent homothermal impermeable herater unit can use both protein glue (hot) and white latex (cold).
Quantitative filling the water automatically and the water yield can be adjusted.
Stepless glue application speed.
Soft light reflection and center position.
Standard and three spines hard covers are available by change and add the spine guides quickly.
The corner cutter can cut four standard corners on different thickness of cardboard without adjustment.
Paper guides go up and down and controlled by pneumatic foot valve.
Easy installation:
Split type model can enter into elevator door and office door.
Glue part can be choosed to set on the Left/Right side, the standard model is on the Left side.
Equipped with high load casters, convenient to level adjusting, fixing and moving the machine.
Not only suitable for the common hard cover papers, but also suitablt for the leather and other materials.
Cheaper cost:
Microthermal protein glue dry quickly, no deformation and lower cost.
Easy operation:
Reciprocating automatic edge fold system fold two edges automatically at one time.
High speed optical fibre detection control the length and position of the paper feeding accurately.
Multi-functions:
Independent homothermal impermeable herater unit can use both protein glue (hot) and white latex (cold).
Quantitative filling the water automatically and the water yield can be adjusted.
Stepless glue application speed.
Soft light reflection and center position.
Standard and three spines hard covers are available by change and add the spine guides quickly.
The corner cutter can cut four standard corners on different thickness of cardboard without adjustment.
Paper guides go up and down and controlled by pneumatic foot valve.
Easy installation:
Split type model can enter into elevator door and office door.
Glue part can be choosed to set on the Left/Right side, the standard model is on the Left side.
Equipped with high load casters, convenient to level adjusting, fixing and moving the machine.
SSK840A can be operated by one person, protein glue (Hot) and white latex (cold) are both available, fold two edges automatically at one time.
It also has the functions like corner cutter, Quantitative filling the water, fast to adjust the thickness of the cardboards, soft light reflection, center position and cover suction assistance.

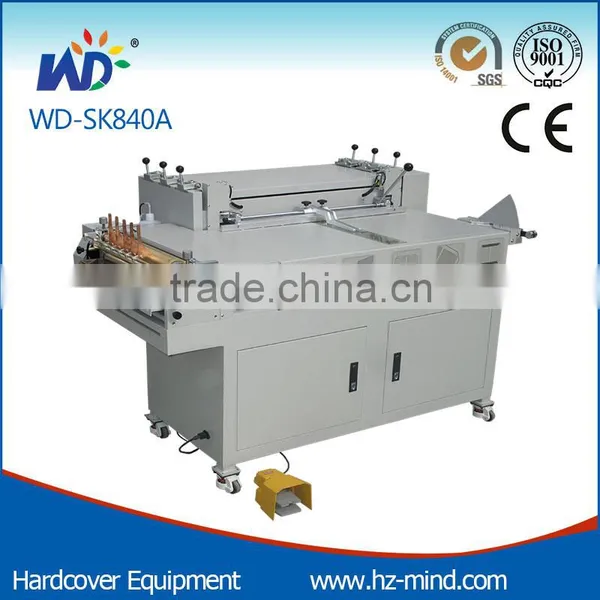

SK840A Semi-automatic case maker
Multifunction SK840A includes Hot gluing, suction and position, corner cutter, automatic edge folder etc.
It's a flexible, high-efficiency and affordable case maker to make different kinds of hard covers for book, album, loose-leaf book, diary, and desk calendar. Suitable for multispecies, short to medium run and wide range of materials to make hard covers.
SSK840A can be operated by one person, protein glue (Hot) and white latex (cold) are both available, fold two edges automatically at one time. It also has the functions like corner cutter, quantitative water filling, fast to adjust the thickness of the cardboards, soft light reflection, center position and cover suction assistance.
PLC system control the feed position, distance of edge folder and running time automatically.
High speed optaical fibre detection control the length and position of the paper feeding accurately.
Independent homothermal impermeable herater unit can use both protein glue (hot) and white latex (cold).
Copper alloy made glue application roller and glue reservoir make the heat conduction fast and well distributed.
Microthermal protein glue dryquickly, no deformation and lower cost.
Quantitative filling the water automatically and the water yield can be adjusted.
Stepless glue application speed.
Large amount of air suction positioning.
Soft light reflection and center position.
Adjust the thicknees to fit the thickness of cardboard quickly, easy to change the spine guides.
The corner cutter can cut four standard corners on different thickness of cardboard without adjustment.
High speed induction automatic feed device.
Reciprocating automatic edge fold system fold two edges automatically at one time.
The base of the machine is equipped with high load bearing footmaster casters, which is convenient for moving the machine, level adjustment and rising fixed.
Four steps to make hard covers:
Hot gluing: Spread the glue on the back of the cover uniformly. | |
|
High accuracy glue roller makes the glue ell-distributed.
Copper alloy made glue application roller and glue reservoir make the heat conduction fast and well distributed.
Quantitative water filling device fill proper amount of water according to the use conditions which avoid the glue from drying and soliding.
Independent homothermal impermeable heater unit, protein glue, jelly glue and white latex can be used separately.
The thickness of the glue can be adjusted.
|
|
Suction and Position: Bound the cardboard and spine with cover paper. | |
|
Flexible and fast to change the different version of spine guides, easy to create many fully decorated have cases.
Suction assistance makes the cover material positioned accurately, and avoid the bubbles when the cover glued with cardboard.
It's easy to see the spine position by soft light table with center positing line which labels the reference meshed line for variety of formates
Humanized back gauge can be adjusted and fixed to ensure the same size of each finished hard cover.
|
|
Corner cutter: Cut four corners of the cover paper. | |
|
|
Automatic edge folding: Put the bound cardboard into the edge folder and the edges will be folded automatically. | |
|
Edges of feed direction will be folded after put the bound cardboards in to the edge folder with optical reflex detection.
The size and position of the edge folding can be adjusted.
The folding pressure can be adjusted to adapt different thickness of the cardboards.
| |
Max. size of product |
840×480mm |
The size of operation desk |
980×466mm |
Gluing width |
500mm |
Hardcover edge width |
840mm |
Thickness of the cardboard |
1.5~4mm |
Thickness of the cover paper |
80~400g/m^2 |
Power Supply |
220V |
Machine gas |
0.6MPa |
Machine Weight |
500kg |
Machine dimensions |
1650×1460×1110mm |
