Plasma Cleaner for for Cleaning, Bonding, Adhesion, Disinfecting, Polymerization, and Activation in the Field of Optics
US$ 800 - 1,698
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CYKY
Model Number:
CYKY- plasma
Material:
PVC
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Chinese port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plasma Cleaner / Desktop Impact High Power Plasma Cleaner for Cleaning, Bonding, Adhesion,etcUS$ 800 - 1,698MOQ: 1 Set -
CY Conductor Chip Plasma Cleaner/Wafer Plasma Cleaner With LCD Touch ScreenUS$ 5,460 - 11,650MOQ: 1 Set
-
CYKY Plasma Cleaning System Equipment / Plasma Cleaners/ Plasma Cleaner MachineUS$ 800 - 1,698MOQ: 1 Set
-
CY New Design 2L Vacuum Plasma Cleaner With Vacuum PumpUS$ 5,560 - 12,360MOQ: 1 Set
-
Plasma Cleaning System / Plasma Cleaners/ Plasma Cleaner Machine With Vacuum PumpUS$ 800 - 1,698MOQ: 1 Set
Brand Name
CYKY
Model Number
CYKY- plasma
Material
PVC
Use
Other, plasma cleaning
Place of Origin
Henan, China
Type
Other, plasma cleaner
CYKY desktop plasma cleaner with vacuum pump
desktop impact high power plasma cleaner (Φ4″ x 9.45″) for cleaning, bonding, adhesion, disinfecting, polymerization, and activation in the field of optics, electronics, materials science, MEMS, life science, polymer science, bio-medicine, microfluidics, and semiconductors, et al.
Specification of the plasma cleaner:
| 1 | Model | cyky-plasma |
| 2 | Power Supply | 110-240V AC, 50/60Hz, single phase |
| 3 | Working Current | < 3.5A (excluding vacuum pump) |
| 4 | RF Power | 200W |
| 5 | RF Frequency | 40KHz (deviation < 0.2KHz) |
| 6 | Impedance | 50 ohm |
| 7 | Vacuum Level | ≤100Pa (750 mtorr) |
| 8 | Gas Flow Rate | 60 – 600 ml/min |
| 9 | Micron Control Unit | Auto and manual |
| 10 | Chamber Size | Φ 4 x 9.45 inch (Φ100 x 240 mm) |
| 11 | Chamber Temperature | < 65 oC |
| 12 | Cooling Method | Air blast cooling |
| 13 | Vacuum Pump | Mechanical pump, 3.18 CFM (90 liter/min) |
| 14 | Dimensions | 17.7 x 17.7 x 8 inch (450 x 450 x 200 mm) |
| 15 | Net Weight | 39.6 Lbs. (18Kg), excluding vacuum pump |
| 16 | Compliance | CE Certified |

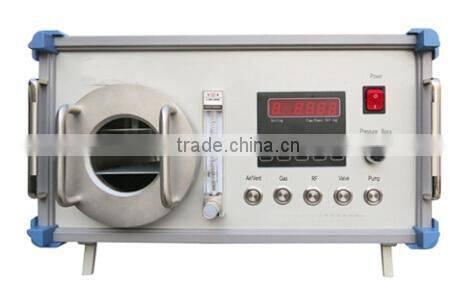

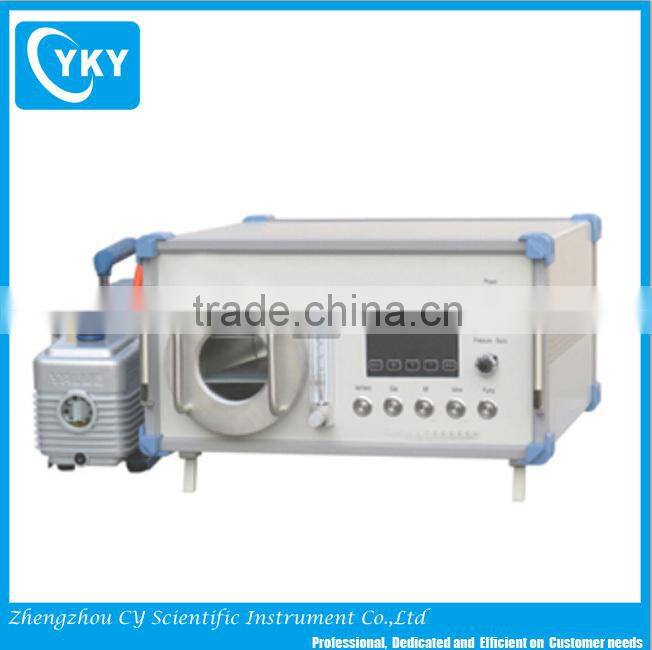

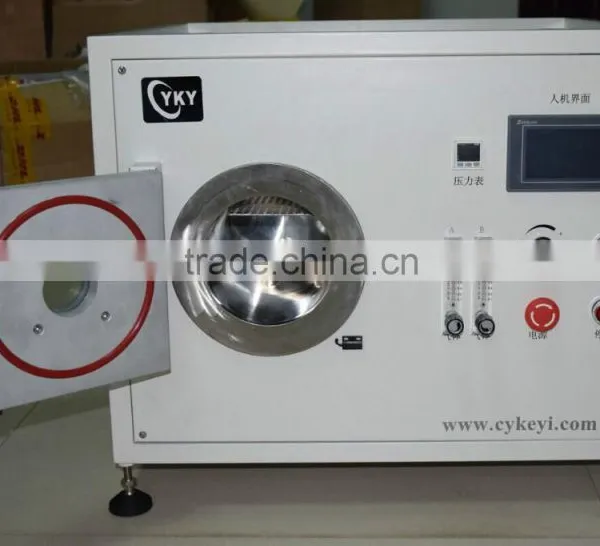

Photos of the desktop plasma cleaner:
