Desktop Dip Coater With Variable Speed (1-200 Mm/min) - PTL-MM01

Zhengzhou CY Scientific Instrument Co., Ltd.
Desktop Dip Coater With Variable Speed (1-200 Mm/min) - PTL-MM01 thumbnail-1
Desktop Dip Coater With Variable Speed (1-200 Mm/min) - PTL-MM01 photo-1
US$ 5,600 - 13,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Powder Coating Booth
Substrate:
Ceramic
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou Qingdao etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Powder Coating Booth
Substrate Ceramic
Coating Powder Coating
Place of Origin Henan, China
Brand Name CYKY
Model Number PTL-HT dip coater
Voltage 110V AC
Power(W) 2KW
Dimension(L*W*H) 560x470x1435mm
Weight 137KG
Certification CE/ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

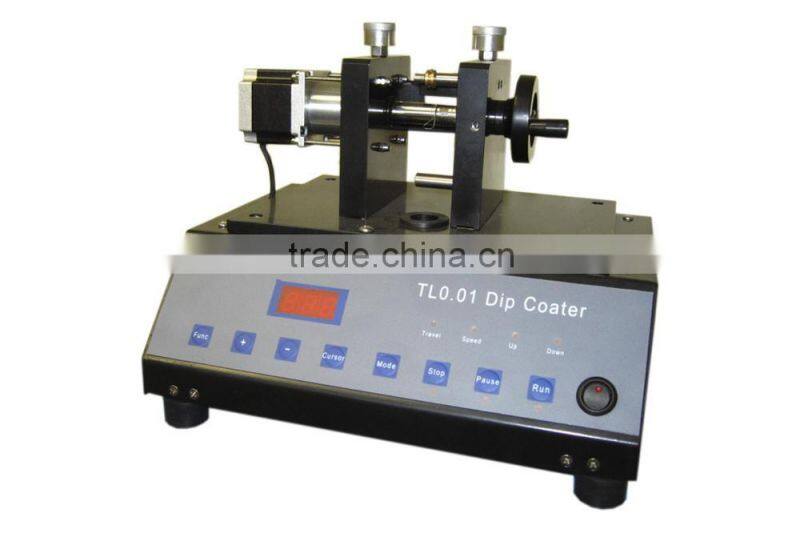

Desktop Dip Coater with variable Speed (1-200 mm/min) - PTL-MM01



Introduction of desktop dip coater



  desktop dip coater



PTL-MM01 is a CE certified Desktop Dip Coater designed for R&D Lab to prepare various optical or



epitaxial films from liquid solution.



  desktop dip coater



Technical parameters of desktop dip coater



Dipping/Pulling

  • Dipping/Pulling Speed:        1-200 mm/minute Adjustable via digital pannel
  • Travel Distance:                  0-200mm Adjustable via digital panel



Voltage

AC 110V/220V

Sample holder

  • Two screw sample clips are installed in the sample holder to carry the
  • samples sliding
  • up and down through one precision ball bear guide rod
  • (ball bear guide rod updated from Sep. 6, 2014)

Beaker Holder

The beaker which contains the coating material (coating solution) will be

placed into the slot of the beaker holder

Solution container

One 150ml beaker is included

Max. Sample size

50mm(L) x 25mm(W) x 2.5mm(T)

Sample weight

less than 250g

Dipping/Pulling Motor

DC Stepping motor

Product dimension

320mm(L) x 255mm(W) x 540mm(H)

Certificate

CE Certified

Warranty

One year limited with lifetime support

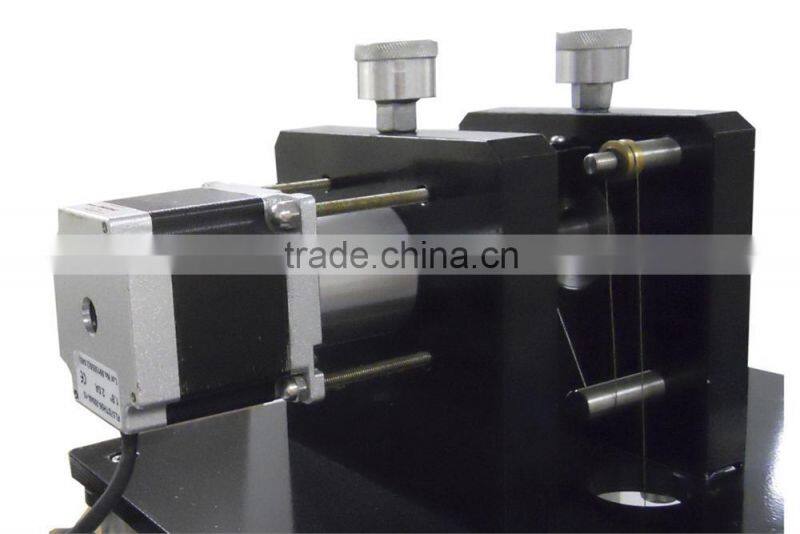

 Dip plulling for dip coater

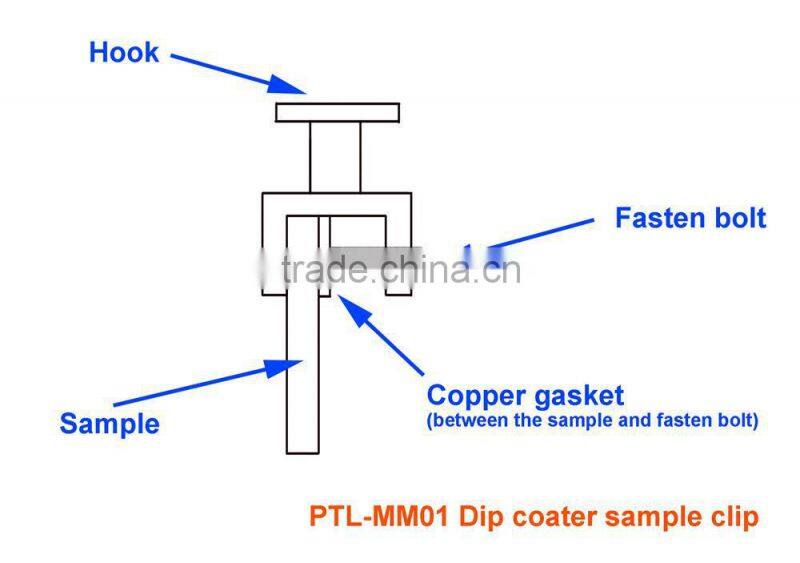

Sample holder for dip coater



Other types of dip coater

Packaging & Shipping





Our Services



1.One  year free warranty.

2.All machines are debugged before shipment.

3.Lifetime technical support  and service.

4.24 hours on line or phone or by email technical support.

5.We offer detailed machine manual and software manual.

6.Our factory make a vivid training CD.

7.Life-long free maintenance.

8.Free training in our factory.

Welcome to visit our factory, learn machine face to face.



24-hours online service makes your inquiry be reply immediately.
