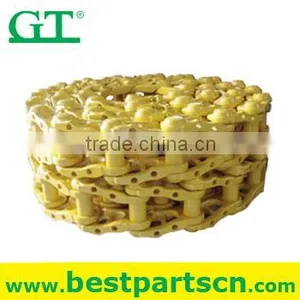

D5/D5B lubricate dozer link assembly
- 100 Piece / Pieces per Month
- XIAMEN PORTS OR SHANGHAI OR NINGBO
- T/T Credit Card
- Internal gear 40cr 41A0076 for Liugong loader parts ,axle parts
- Liugong Wheel loader parts Liugong spare parts SP104817 Gland
- Liugong Spare parts Castle nut 03B0050 Standard parts for Liugong Wheel loader parts
- Conical roller bearing 23B0019 Standard parts for Liugong Wheel loader parts
- Liugong spare parts flasher relay 31B0005 fpr Liugong Wheel loader parts
- Air tank assembly ,pressure controller 13C0015 for Liugong Wheel loader parts
Product Details
Place of Origin: | China | Brand Name: | GT | Model Number: | D5B |
Product Description
Part Name | Dozer link assy |
Model/Parts no. | D5B |
Working environment | Mining/quarry/rocky/construction/earthmoving/sand |
Warranty: | 12 month or 2000 working hours |
Material | 35MnB |
Surface hardness | 50-56HRC |
Surface hardening | 6mm(standard 4-8mm) |
Heat treatment | Full enough |
Colour | Black or yellow |
Delivery time | 30 days |

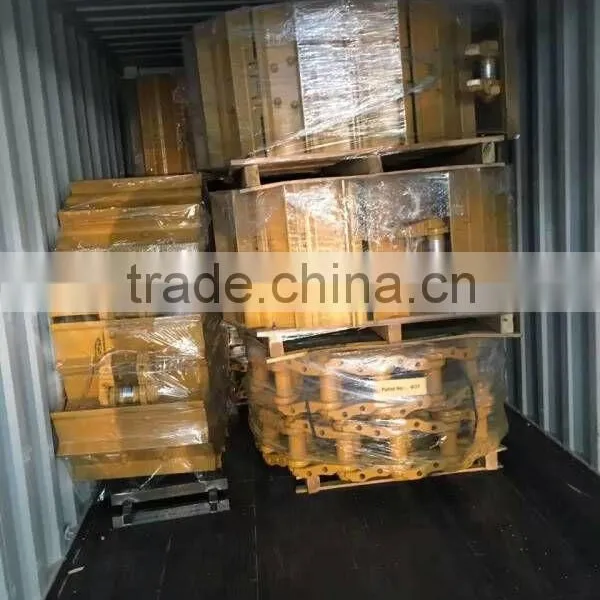

Packing | Seaworthy fumigate pallet |
MOQ | 2pcs |
Technical drawing | Supply when order established |
Analyze component | |||
The track link has been done special hardening treatment which ensures its high strength and excellent abrasion resistance&inductive harden surface | The bushing shaft has been carburized and quenched the surface with medium frequency,which guarantees its reasonable hardness of core and abrasion resistance of the inner and outer surfaces. | The pin shaft is quenched the surface with medium frequency after quenching and tempering,which ensures its sufficient core strength and wear-resistance of inner and outer surfaces. | Lubricated track link assemblies subassemblies,such as oil seals,are made from world well-known brands.high-quality oil seals guarantee the maximum longevity of lubricated track link assemblies. |
EXCAVATOR | ||||||||
Model | Pitch (mm) | Bolt hole (mm) | Model | Pitch | Bolt hole | Model | Pitch (mm) | Bolt hole (mm) |
E70B | 135 | PC15 | 101 | SK015 | 90 | |||
E110B | 171 | 16.5 | PC20/PC30 | 101.6 | SK40 | 135 | ||
E320 | 190 | 20.5 | PC40-7 | 135 | 12.5 | SK100 | 171 | 16.5 |
E325 | 203 | 20.5 | PC60-5 | 135 | 12.5 | SK120 | 171 | 16.5 |
E330 | 216 | 22.5 | PC60-6 | 154 | 14.5 | K907 | 175.4 | 18.5 |
E345 | 216 | 22.5 | PC100-1 | 154 | 14.5 | SK200 | 190 | 20.5 |
E350 | 228.6 | PC100-5 | 175 | 16.5 | SK300 | 203 | 20.5 | |
EX15 | 90 | PC200 | 190 | 18.5 | SK450 | 228.6 | 24.5 | |
EX30 | 101 | PC200-5 | 190 | 20.5 | SH40 | 135 | ||
EX60 | 154 | 14.5 | PC300-1 | 203 | 22.5 | SH100 | 171 | |
EX70 | 154 | 14.5 | PC300-6 | 216 | 22.5 | SH180 | 175 | |
EX100/EX120 | 171 | 16.5 | PC400-1 | 216 | 22.5 | SH200 | 190 | |
FH150 | 171 | 16.5 | PC400-5 | 216 | 24.5 | SH450 | 228 | 24.5 |
EX200 | 175.4 | 18.5 | PC400-6 | 228 | 24.5 | R55/R60 | 135 | 12.5 |
FH220 | 190 | 18.5 | PC650-8 | 228 | 24.5 | R200 | 171 | 16.5 |
EX300 | 203 | 20.5 | VIO30 | 101 | FL4 | 140 | 12.3 | |
EX700/ZX870 | 260 | 27.5 | VIO050 | 135 | FL6 | 160 | 14.5 | |
BULLDOZER | ||||||||
D3B/D3C | 155.6 | 14.5 | D20 | 135 | 12.5 | |||
D4/D4D/D4E | 171.5 | 16.5 | D30/D31 | 154 | 14.5 | |||
D4H/D5C/D5G | 171 | 16.5 | D41P-6 | 171.5 | 16.5 | |||
D5/D5B | 175 | 16.5 | D50/D51EX-22 | 175 | 16.5 | |||
D6M/D6N/D5H | 190 | D65/D65EX-12/D65-8 | 203 | 20.5 | ||||
D6D/D6R/D6H | 203 | 19.5 | D80/D85/D85ESS-2 | 216 | 20.5 | |||
D7G/D7H | 216 | 19.5 | D150/D155 | 228.6 | 24.5 | |||
D8N/D8K | 228.6 | 22.5 | D355 | 260 | 27.5 | |||
Remark:
------------------------------------------------------------------------------------------------------------------------------------------------
1.Our company have specialized in construction machinery parts for 18 years.
2.Our manufacturer of undercarriage parts for 14 years. 260 workers, 30000m2workshop,
and have cooperated with ITR,V-track; ITM, etc;
We are the manufacturer of MS brand underacarriage spare parts
--------------------------------------------------------------------------------------------------------------------
Contact person:Mr.Harrison
Skype:harrison-xmgt Whatsup:0086 18750267010 Wechat:0086 18750267010
Mobile:0086 18750267010
-------------------------------------------------------------------------------------------------------------------------------------------------
