D3C Dozer Track Chain/track Link/link Assy With Lubricate Quality Choice

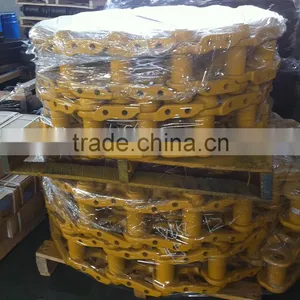

D3C Dozer Track Chain/track Link/link Assy With Lubricate Quality Choice thumbnail-1
D3C Dozer Track Chain/track Link/link Assy With Lubricate Quality Choice photo-1
US$ 450 - 700 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
GT
Model Number:
D4D
Contact Supplier Request Quote Chat Now
Xiamen Globe Truth (GT) Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN PORTS OR SHANGHAI OR NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name GT
Model Number D4D
Basic information



Part Name Dozer track link
Model/Parts no. D3C
Working environment Mining/quarry/rocky/construction/earthmoving/sand
Warranty: 12 month or 2000 working hours
Material 35MnB
Surface hardness 50-56HRC
Surface hardening 6mm(standard 4-8mm)
Heat treatment Full enough
Colour Yellow
Delivery time 30 days
Packing Seaworthy fumigate pallet
MOQ 2pcs
Technical drawing Supply when order established

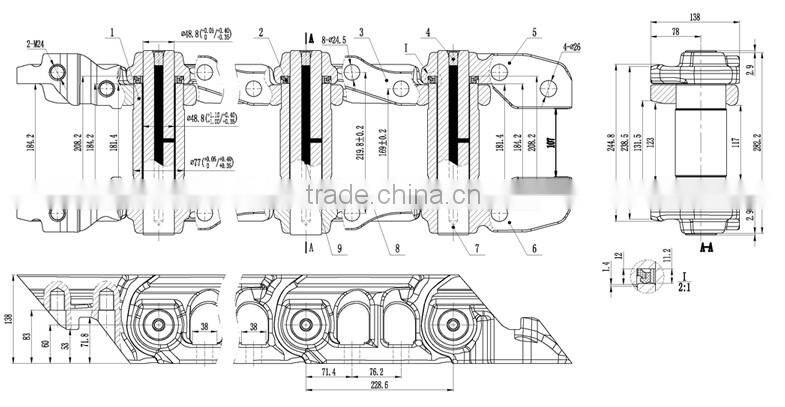

Technical drawing



D3C dozer track chain/track link/link assy with lubricate

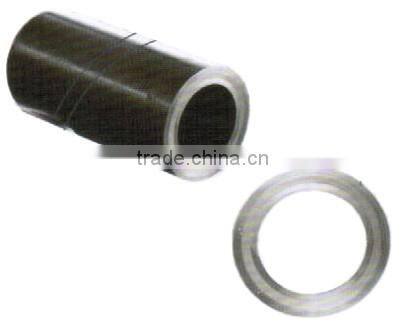

Analyze component
D3C dozer track chain/track link/link assy with lubricate D3C dozer track chain/track link/link assy with lubricate D3C dozer track chain/track link/link assy with lubricate D3C dozer track chain/track link/link assy with lubricate

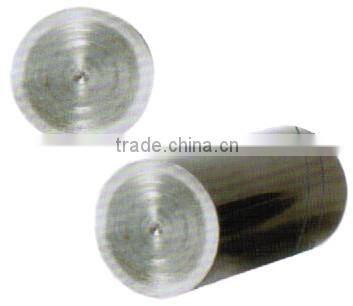

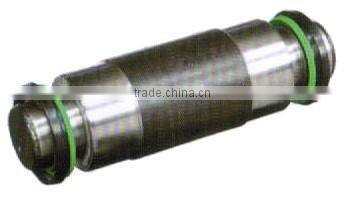

The track link has been done special hardening treatment which ensures its high strength and excellent abrasion resistance&inductive harden surface The bushing shaft has been carburized and quenched the surface with medium frequency,which guarantees its reasonable hardness of core and abrasion resistance of the inner and outer surfaces. The pin shaft is quenched the surface with medium frequency after quenching and tempering,which ensures its sufficient core strength and wear-resistance of inner and outer surfaces. Lubricated track link assemblies subassemblies,such as oil seals,are made from world well-known brands.high-quality oil seals guarantee the maximum longevity of lubricated track link assemblies.

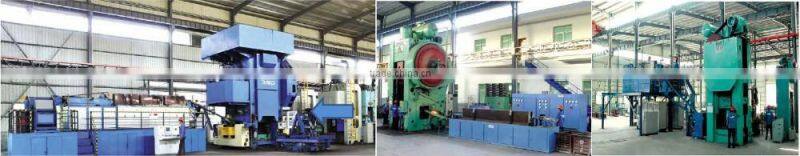

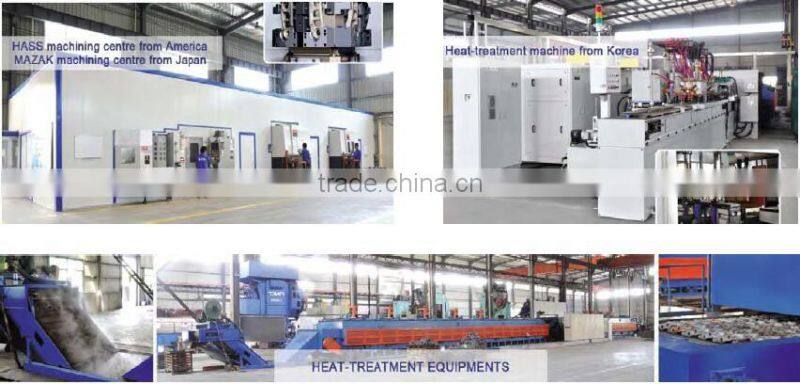

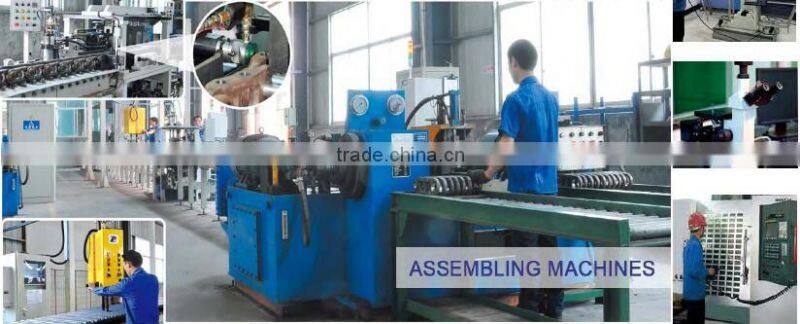

Advance equipment



D3C dozer track chain/track link/link assy with lubricate D3C dozer track chain/track link/link assy with lubricate
D3C dozer track chain/track link/link assy with lubricate

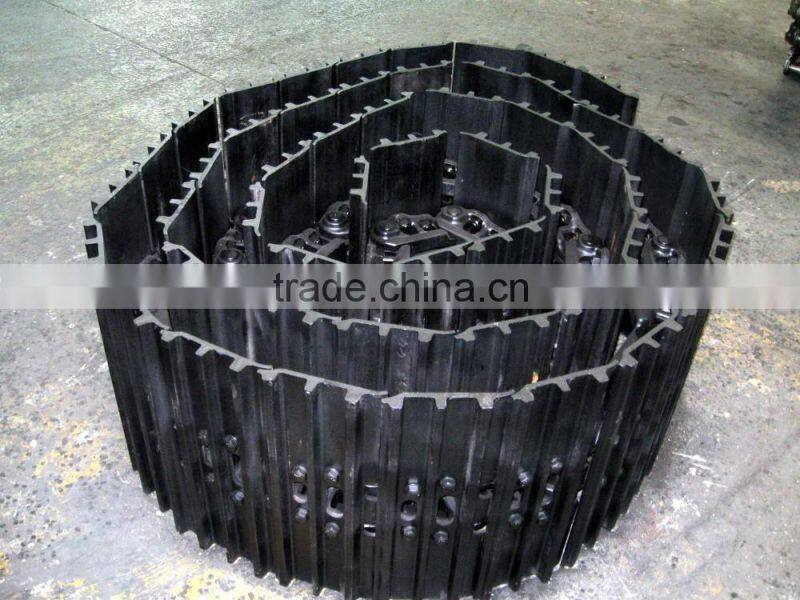

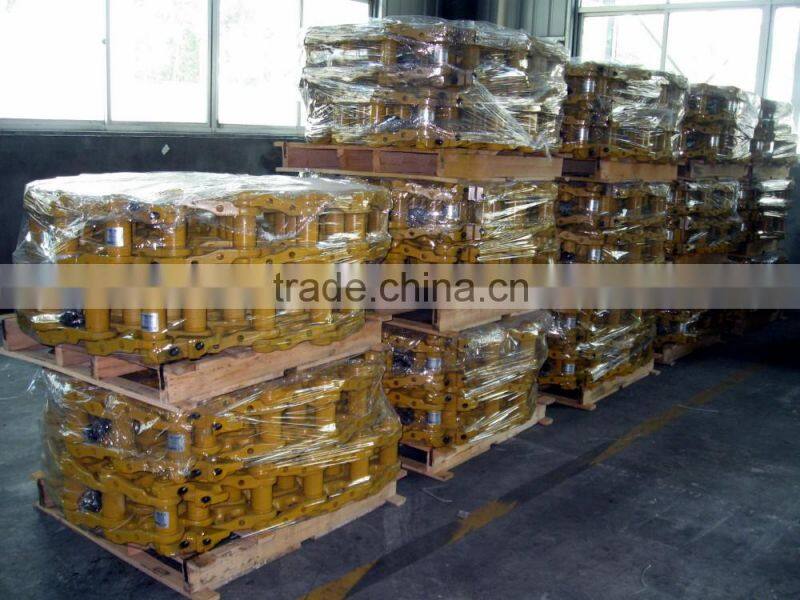

Huge stock



D3C dozer track chain/track link/link assy with lubricate D3C dozer track chain/track link/link assy with lubricate D3C dozer track chain/track link/link assy with lubricate
D3C dozer track chain/track link/link assy with lubricate D3C dozer track chain/track link/link assy with lubricate D3C dozer track chain/track link/link assy with lubricate



Model list



EXCAVATOR
Model

Pitch

(mm)

Bolt hole

(mm)

 Model  Pitch Bolt hole Model

  Pitch

  (mm)

  Bolt hole

      (mm)
E70B

135

   PC15 101   SK015 90
E110B 171 16.5 PC20/PC30 101.6   SK40 135
E320 190 20.5 PC40-7 135 12.5 SK100 171 16.5
E325 203 20.5 PC60-5 135 12.5 SK120 171 16.5
E330 216 22.5 PC60-6 154 14.5 K907 175.4 18.5
E345 216 22.5 PC100-1 154 14.5 SK200 190 20.5
E350 228.6   PC100-5 175 16.5 SK300 203 20.5
EX15 90   PC200 190 18.5 SK450 228.6 24.5
EX30 101   PC200-5 190 20.5 SH40 135
EX60 154 14.5 PC300-1 203 22.5 SH100 171
EX70 154 14.5 PC300-6 216 22.5 SH180 175
EX100/EX120 171 16.5 PC400-1 216 22.5 SH200 190
FH150 171 16.5 PC400-5 216 24.5 SH450 228 24.5
EX200 175.4 18.5 PC400-6 228 24.5 R55/R60 135 12.5
FH220 190 18.5 PC650-8 228 24.5 R200 171 16.5
EX300 203 20.5 VIO30 101   FL4 140 12.3
EX700/ZX870 260 27.5 VIO050 135   FL6 160 14.5
BULLDOZER
D3B/D3C 155.6 14.5 D20 135 12.5
D4/D4D/D4E 171.5 16.5 D30/D31 154 14.5
D4H/D5C/D5G 171 16.5 D41P-6 171.5 16.5
D5/D5B 175 16.5 D50/D51EX-22 175 16.5
D6M/D6N/D5H 190   D65/D65EX-12/D65-8 203 20.5
D6D/D6R/D6H 203 19.5 D80/D85/D85ESS-2 216 20.5
D7G/D7H 216 19.5 D150/D155 228.6 24.5
D8N/D8R/D8T 216 22.5 D355 260 27.5
D8K 228.6 22.5
D9N 240
D10N 260



Remark:

 ------------------------------------------------------------------------------------------------------------------------------------------------

1.Our company have specialized in construction machinery parts for 18 years.

2.Our manufacturer of undercarriage parts for 14 years. 260 workers, 30000m2workshop,

and have cooperated with ITR,V-track; ITM,  etc;

We are the manufacturer of MS brand underacarriage spare parts

--------------------------------------------------------------------------------------------------------------------
