Small Hot Pellet Press Machine Upto 1000C / Small Heat Hot Press Machine

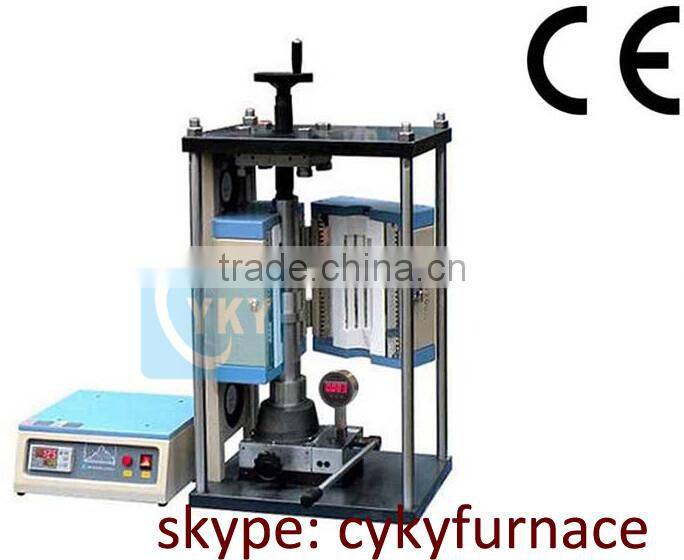

Small Hot Pellet Press Machine Upto 1000C / Small Heat Hot Press Machine photo-1
US$ 1,520 - 19,865 MOQ: 1 Set
Key Specifications
Get Latest Price
Automatic Grade:
Automatic
Voltage:
110 -380v
Gross Power:
1.2 kw
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port as your requirement
Delivery Detail:
Delivery time depends on order quantity.
Automatic Grade Automatic
Voltage 110 -380v
Gross Power 1.2 kw
Dimensions(L*W*H) 292mm(L) x 279mm(W) x 546mm(H)
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

YLJ-HP6 laboratory used hot press machine upto 1000C / small heat hot press machine



CYLJ-HP6 is a small pellet press with programmable split furnace, which can apply up to 6 metric tons to the sample at max.1000ºC. ( Pressure gauge < 10MP) It is ideal press for preparing ceramic , composite and polymer material sample with higher density .



 Specification of the Compact Hot Pellet Press Machine

Pressure

6 metric tons ( 10 MP on pressure gauge ) Max.

Hydraulic Pump

12T manual pump is built-in on the bottom of frame

Bottom Hydraulic Cylinder Travel Distance

25 mm

Top Support Screw Adjustable Height

150 mm

Heating Chamber &
Temperature Control & Pressure gauge
  • Split furnace with 55mm diameter heating chamber
  • Max. working temperature: 1100ºC
  • 30 segments programmable temperature controller with auto tune PID

and over-heating protection

  • Digital pressure gauge with max. pressure setting & alrm
Furnace Power Supply
Single Phase AC 208~240V, 1.2KW
Machine Dimensions

292mm(L) x 279mm(W) x 546mm(H)

Net weight

350 lb

Shipping Dimensions

14"(L) x 14"(W) x 25"(H)

Weight of shipment

410 lbs with 48"x40"x46" dimension

Press dies & Pushing Rod for hot pressing
  • Pressing die is not included. Please click picture below to choose a die based on
  • ing temperature in air.
Tool Steel Die: 250oCMax. Graphite Die: 399oC Max in air Refractory Alloy Die upto 400ºC
  • Please pay attention for max. working pressure on your die.
  • Never go beyond the die's max. pressure limit at given temperature,

otherwise, the die may be deformed or cracked

  • The pressure applied to the die can be estimated as the below:
    • ( Gauge Pressure x 0.38 ) / (D) ,
    • ( D is die 's diameter in CM, , pressure unit is T/cm2 )
    • For example, die's diameter is 2 cm, pressure shown on gauge is
  • 10MP, then pressure applied to the die is 1.9T/cm2 e.g 1900Kg/cm2, 190 MP
Compliance
  • CE Certified
Warranty

One year limited standard warranty

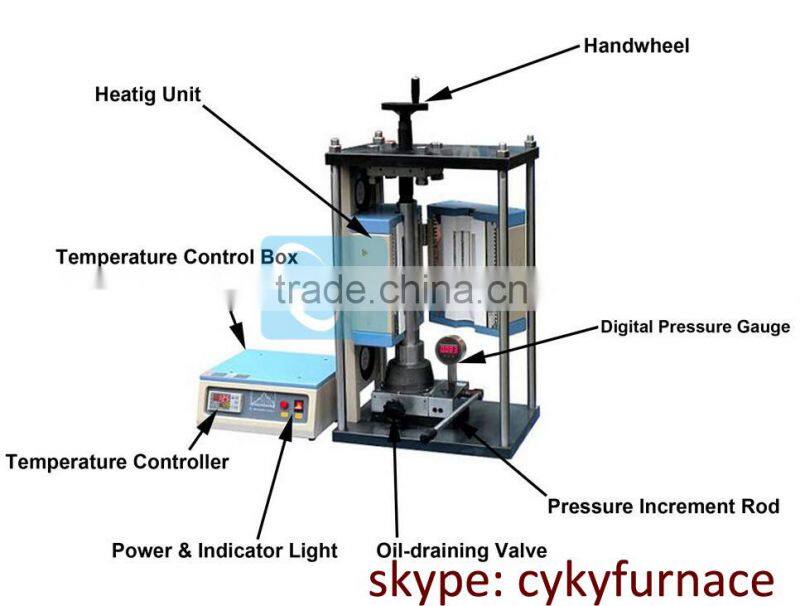

Detailed photos of the the Compact Hot Pellet Press Machine

small hot pellet press machine upto 1000C / small heat hot press machine

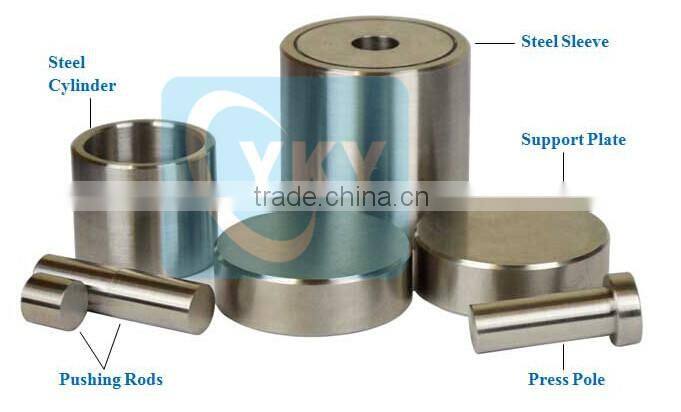

The accessories

 small hot pellet press machine upto 1000C / small heat hot press machinesmall hot pellet press machine upto 1000C / small heat hot press machine





Packaging & Shipping

 Plywood case

small hot pellet press machine upto 1000C / small heat hot press machine

Our Services

 Payment: T/T in advance

Delivery: within 2 weeks
