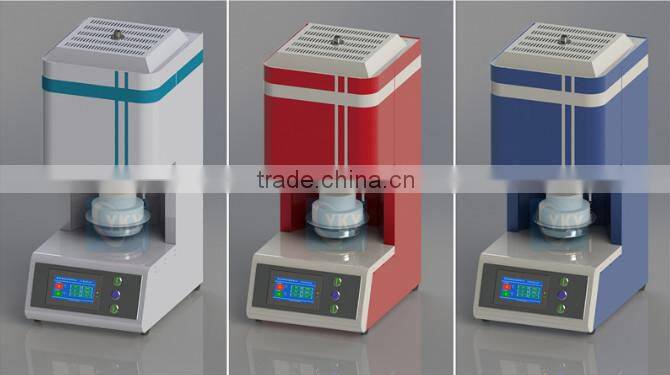

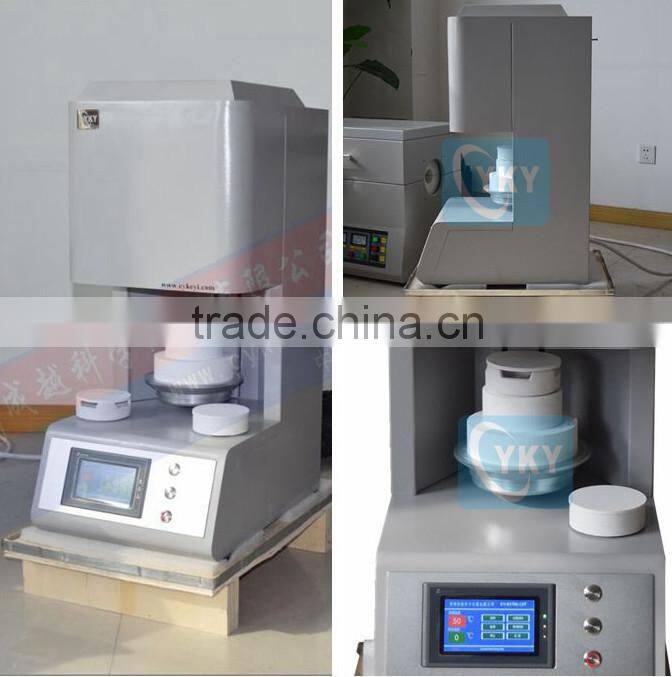

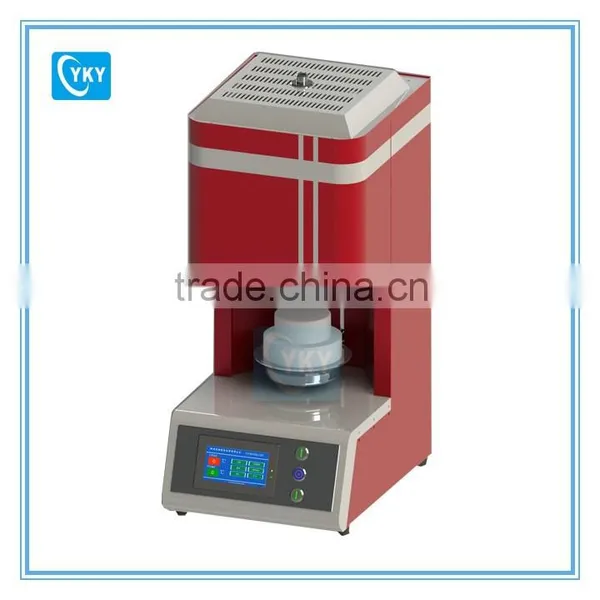

Dental Cad Cam Machine / Dental Zirconia Sintering Furnace

1

Model

CYKY-B1700-12T

2

Chamber model

lift

3

Display

Touch screen LCD

4

Limiting Temperature

1700℃

5

Usable Range

≤1650℃

6

Heating Rate

Suggestion0~20℃/min

7

Temperature Zone

Single

8

Accuracy

±1℃

9

Inside Chamber Size

Φ120×120mm

10

Heating Element

MoSi2

11

Thermocouple

B Type

12

Max. Power

1.8KW

13

Working Voltage

AC 208V-240V single phase, 50/60 Hz

14

Temperature Control

PID automatic control via SCR power control

15

Heating curves

50steps programmable

16

Communication interface

Rs485

17

Outside Size

400×530×850(mm)

18

Weight

85kg

19

Warranty

One year limited warranty (Consumable parts

such as heating elements are not covered by

the warranty)
