Specifications
commercial COB tracklight1.SHARP COB Chip,CRI>80Ra,PF>0.93
2.2 wire, 3 wire, 4 wire adaptor
3.CE&RoHs
4.3 yeas warra

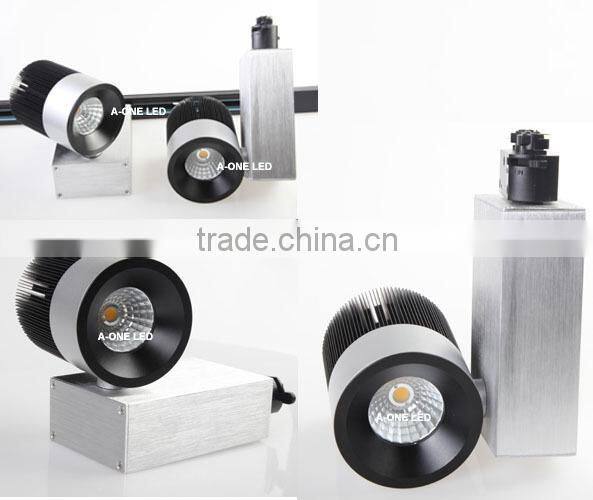

Commercial COB tracklight

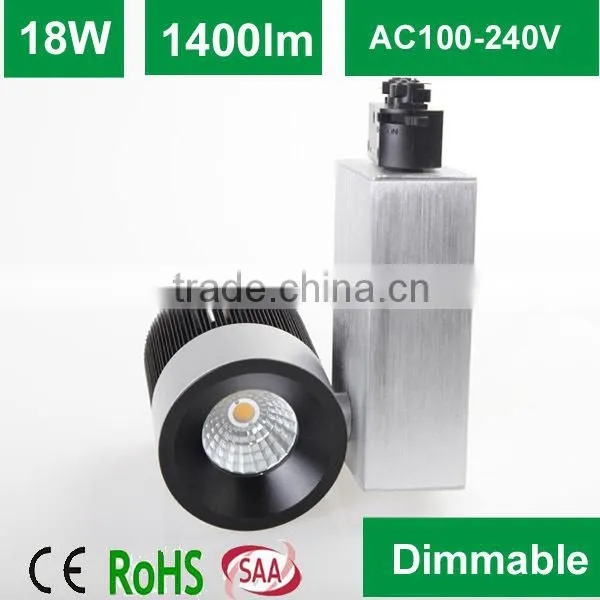

18W LED Track Light
Adopt SHARP COB LED Chip
CRI>80Ra
15W-18W for option, 3-year warranty

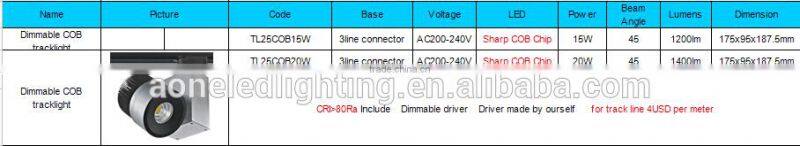

| Product Name | 15W led track light | 18W led track light |
| Product Model | TL25-15W | TL25-18W |
| Optical Parameters | ||
| LED Chip Brand | Sharp | Sharp |
| LED Chip Type | Sharp COB | Sharp COB |
| LED Chip Quantity | 1pcs | 1pcs |
| Color Temperature | 2700-6500K | 2700-6500K |
| Light Efficiency | 75-80 lm/w | 75-80 lm/w |
| Luminous Flux | 1200 lm | 1400 lm |
| Color Rendering Index | >75Ra | >75Ra |
| Beam Angle | 45 | 45 |
| Electrical Parameters | ||
| Input Voltage | 100V~264V | 100V~264V |
| Power Frequency | 50HZ/60HZ | 50HZ/60HZ |
| Output Voltage | 20V~42V | 20V~42V |
| Output Current | 700mA | 700mA |
| Power Efficiency | >82% | >82% |
| Power Factor | >0.90 | >0.90 |
| Others | ||
| Heat Sink Surface Temperature | 55-58 degree | 59-62degree |
| Working Temperature (Ambient) | -20°C~54°C | -20°C~54°C |
| Working Humidity (Ambient) | 10%RH~100%RH | 10%RH~100%RH |
| Storing Temperature | -40°C~80°C | -40°C~80°C |
| Fixture Material | die-casting aluminum | die-casting aluminum |
| IP Level | IP40 | IP40 |
| NW | 0.97kg | 0.97kg |

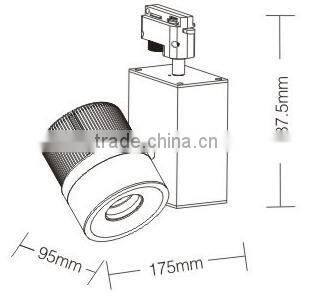

| Master ctn size | 95*175*187.5mm | 95*175*187.5mm |
| Qty/ctn | 10pcs | 10pcs |
| GW | 15.0KG | 15.0KG |
Features of led track light
Top quality
1.LED chip:Sharp----world top brand,imported original package chip,quality absolutely guarantee.
2.Perfect die-casting aluminum light fixture material.
3.Perfect internal circuit design.
Advantage of our light
1) Solid-state, high shock / vibration resistant
2) Major reduction in power costs
3) No RF interference, No buzzing noise
4) No fluorescent flickering
5) No hazard of mercury or lead entering the environment
6) No danger of broken glass
7) No threat of high-voltage electrocution
8) Maintenance free, easy installation

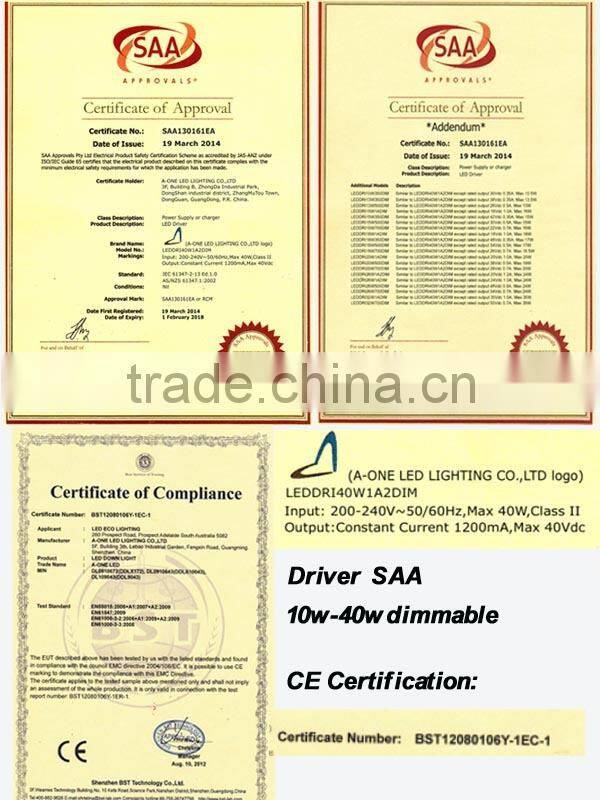

Our Certification
About US:
Order information:
MOQ: 5-100pcs,as to ref.
Trade term: EXW/ FOB Shenzhen&Hong Kong / CFR /CIF
Sample time: 3-10 days,as to ref.
Mass time :7-15days,as to quantity.
Payment term: 30% Deposit, 70% before the shipment
Shipping port: Shenzhen or Hong Kong
OEM And ODM Are welcome
Design as customer’s requirement
OUr service:
1. For all your inquires about us or our products,we will reply you in detall within 24 hours
2. We own well-tranied and passional sales & after –sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
If you interested in our track light welcome to contact us immediately. Contact person : Michael , SKYPE:aoneled12
