Help CenterCutout 160mm SAA ROHS Dimmable Round Led Panel Light 12w With 5 Years Warranty and Free Current Driver
Related Products
-
ce Rohs 9w High Quality Recessed Smd Led Panel Light With 5 Years Warranty and Free Led DriverUS$ 10 - 18MOQ: 1 Piece -
Energy Saving Eco Lamp Super Thin SMD2835 30*60 Led Ceiling Light Led Panel Light 20wNegotiableMOQ: 10 Pieces
-
China Factory SMD2835 600*600mm Led Panel Light 60w & A ONE 60w Led Residential Panel Light Commercial LightingNegotiableMOQ: 10 Pieces
-
High Power 600*600mm Square 60w Led Panel Light Recessed & Best Price 60*60cm Led Panel Light 60w SuspendedUS$ 60 - 70MOQ: 10 Pieces
-
High Power Recessed 60W Led Panel Lights 600x600 mm With Meanwell DriverUS$ 29 - 38MOQ: 10 Pieces

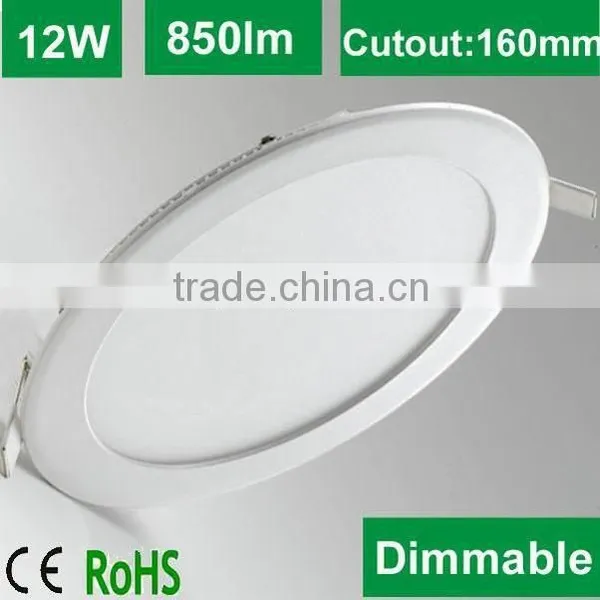

cutout 160mm SAA ROHS dimmable round led panel light 12w with 5 years warranty and free current driver
Features of cutout 160mm SAA ROHS dimmable round led panel light 12w with 5 years warranty and free current driver
Polyamide body with latest heat disspation technology; Opal acrylic diffuser,even light output; High efficiency
SMD LED Chips, built-in trailing edge dimmable driver; 12w dimmable round led pannel light. Integrated design, easy installation.
Advantages of cutout 160mm SAA ROHS dimmable round led panel light 12w with 5 years warranty and free current driver
1. Advanced LED lighting distribution process
2. High quality chipset for the Downlight
3. High-tech heat dissipation for radiatorm
4. Even Lighting: High Intensity / No Halationoule led
5. Major Energy saving: Over 90% Compare to Incandescent
6. Reduces Light Pollution: No wasted Light
7. No Hazardous Emissions: No IR or UV Radiation, Do Not Attract Insects
8. Extended Life Time: 5 years warranty
cutout 160mm SAA ROHS dimmable round led panel light 12w with 5 years warranty and free current driver
| Type | RP1812W | |
| Input voltage &frequency | AC85V-265V 50/60Hz | |
| Light source | SMD2835/60pcs | |
| Power consumption | 12W | |
| Color temperature | WW:2800K~3200K | NW:4000K~4500K |
| LED luminous efficiency | 70lm/W | CW:6000K~6500K |
| Lamp Lumens | 840lm | |
| CRI(Ra) | >78 | |
| Beam angle | 120° | |
| Working temperature | -40°C~60°C | |
| Housing material | Aliminium shell+PC cover | |
| Product size | 180*13mm,cutout:160mm |
|
| Light source life span | ≥50,000 hrs | |
Other round panel specification:
| Part No. | Input Voltage | Power Factor | LED Chip | LED QTY | Power | Dimension | Cutout size | Lumens |
| RP093W | AC85-265V | >0.65 | SMD2835 | 15 | 3W | 90*13mm | 70mm | 210lm ± 10%lm |
| RP114W | AC85-265V | >0.65 | SMD2835 | 20 | 4W | 110*13mm | 90mm | 300lm ± 10%lm |
| RP126W | AC85-265V | >0.65 | SMD2835 | 30 | 6W | 120*13mm | 100mm | 420lm ± 10%lm |
| RP159W | AC85-265V | >0.9 | SMD2835 | 45 | 9W | 150*13mm | 130mm | 630lm ± 10%lm |
| RP1712W | AC85-265V | >0.9 | SMD2835 | 60 | 12W | 170*13mm | 150mm | 840lm ± 10%lm |
| RP1812W | AC85-265V | >0.9 | SMD2835 | 60 | 12W | 180*13mm | 160mm | 840lm ± 10%lm |
| RP2015W | AC85-265V | >0.9 | SMD2835 | 75 | 15W | 200*13mm | 180mm | 1100lm ± 10%lm |
| RP2218W | AC85-265V | >0.9 | SMD2835 | 90 | 18W | 225*13mm | 200mm | 1300lm ± 10%lm |
| RP2420W | AC85-265V | >0.9 | SMD2835 | 100 | 20W | 240*13mm | 220mm | 1500lm ± 10%lm |
| RP3024W | AC85-265V | >0.9 | SMD2835 | 120 | 24W | 300*13mm | 280mm | 1800lm ± 10%lm |
Product show of cutout 160mm SAA ROHS dimmable round led panel light 12w with 5 years warranty and free current driver
International Colour temperature standard:
cutout 160mm SAA ROHS dimmable round led panel light 12w with 5 years warranty and free current driver
1. General indoor lighting
2. Hotels lighting
3. Conference room lighting
4. Factories, offices lighting
5. Business negotiation venues lighting
6. Housing, institutions and other buildings lighting
7. Schools, hospitals lighting
8. Places need to energy efficiency and high color developing index
Install design:
Led ceiling light Packing:
1:Qty/ctn:40pcs
2:Gross Weight:25.5kg
3:Size of carton:64x50x30mm
cutout 160mm SAA ROHS dimmable round led panel light 12w with 5 years warranty and free current driver
Material Control:
We will check all outer ring one by one remove any stain of outer to protect smooth surface;
100% of the lamps will be tested and keep lighting for 48 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
cutout 160mm SAA ROHS dimmable round led panel light 12w with 5 years warranty and free current driver
cutout 160mm SAA ROHS dimmable round led panel light 12w with 5 years warranty and free current driver
1. For all your inquires about us or our products,we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after –sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
5.Protection of your sales area, ideas of design and all your private informaton.
6.We make color box free when QTY more than 1000pcs
7.Our convenient payment and effective transportation service:
Quality, Promise and Value are the key of our success. If you are looking for a business partner supplying super quality products, welcome to contact A-ONE:
