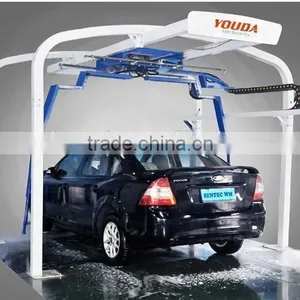

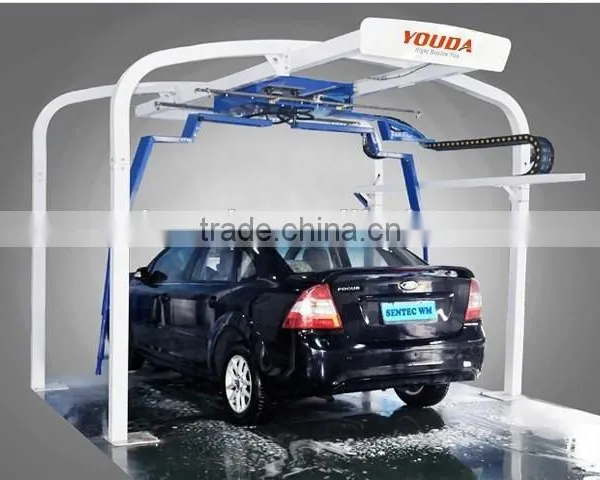

Semi-automatic car wash machine with stop function
CE Approved
DA-W200ST Touchless car wash machine is qualified to wash and spray foam, water and wax automatically, which covers small space and operates easily; there is no need for customer to concern the car paint destroyed by the brush since it is brushless. The dual-swing-arm spraying system ensures the easy and complete full-scope cleaning.
Main Futures:
1. The machine is controlled by intelligent CUP.
2. Swing arm move in 360 round, can clean any where of cars.
3. Cover a small area, saving space and easy to operation.
4. Bottom wash and high pressure water gun are as optional.
5. With water spray, shampoo, wax systems. Under bottom wash and dry systems is optional.
Technical Data :
Model |
DA- W200ST-1 (Standard) |
DA- W200ST-2 |
|
Parameter |
Machine Size |
L4080mm×W3580mm× H2850mm |
L6080mm×W3580mm× H2850mm |
Assembling range |
L6300mm×W4000 |
||
Wash type |
car, jeep, coach below 10 seats |
||
Washable car size |
L5300mm×W2300mm×H2250mm |
||
Washing ways |
2 roll over shampoo wash ,2 roll over wax wash |
||
Washing time |
2 roll over 1minute 20 seconds (without hand wipe-time) |
||
| |||
Cost consumption |
Water consumption |
120L/set |
|
Power consumption |
0.27kwh/set |
0.15kwh/set |
|
Shampoo consumption |
7ml/set |
||
Wax consumption |
12ml/set |
||
Total electrical capacity |
8.55KW |
6.47KW |
|
| |||
Installation |
Power required |
AC380V50Hz volume 15KVA |
AC380V50Hz volume 11KVA |
Water required |
Pipe diameter DN25 flow≥100L/min |
||
Air supply |
Pressure0.75~0.9Mpa/flow≥0.1m³/min |
||
Surface roughness |
error≤10mm |
||
Photos:
Foam:
High pressure wash:
DA-W200ST-1:
DA-W200ST-2: with long length

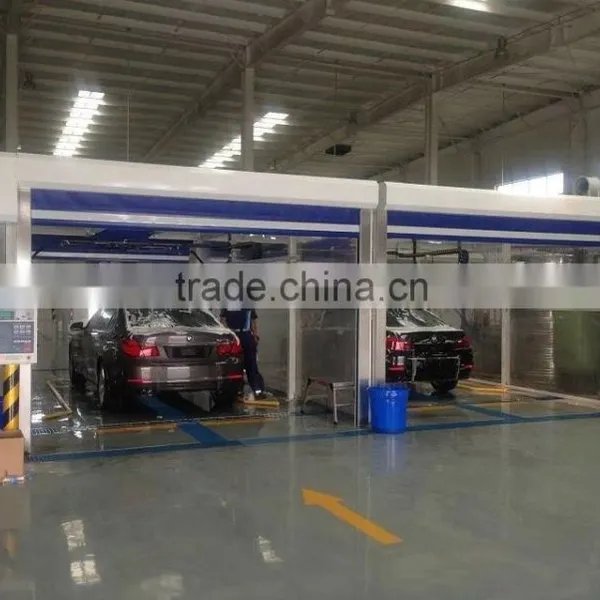

Popular used at the wash shop:
Dry optional: 2 types for choose
Fixable:
Movable:
If you are interested, pelase send us inquiry freely.
