36kv Load Break Switch

1. Brief introduction

PLBS Pole mounted SF6 load break switches are designed to meet growing requirements for

Reliability.

Switches filled with SF6 gas as the insulating and arc quenching medium with puffing

principle.

It can be used in 12kv,24kv,36kv overhead line.

It has excellent load breaking and fault making capacity.

It has three kinds of operating mechanisms: manual, motor, intelligent

The basic mechanism is operator independent quick close and quick open spring toggle

mechanism. The motor operating mechanism is developed to meet the feeder automation in addition to the manual switch.

2.Service conditions

Surrounding temperature: upper limit +50°C, lower limit -40°C

Relative humidity: 100%

Altitude: no more than 3000m

Wind pressure no more than 700pa(equal to wind speed 34m/s).

Earthquake intensity: 8 degrees

Installation places: no fire, explosive risk, chemical corrosion or frequent severe vibration.

3.Brief specifications

*Other ratings are available upon request

4. PLBS type we can offer

1). porcelain bushing

2).rubber bushing

3).PLBS-with surge arrester

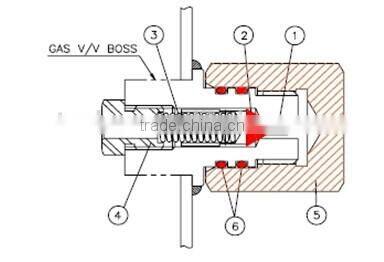

5. Gas filling valve

6. Packing

7. Our service

If any problems resulted from quality and mal-manufacturing, our after-sales service will help you solve these problems.

We will help you with technical problems during installation and marketing.

8. Our equipments
