Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > 9V 4A 36W AC To DC Switching Mode Power Supply Adapter

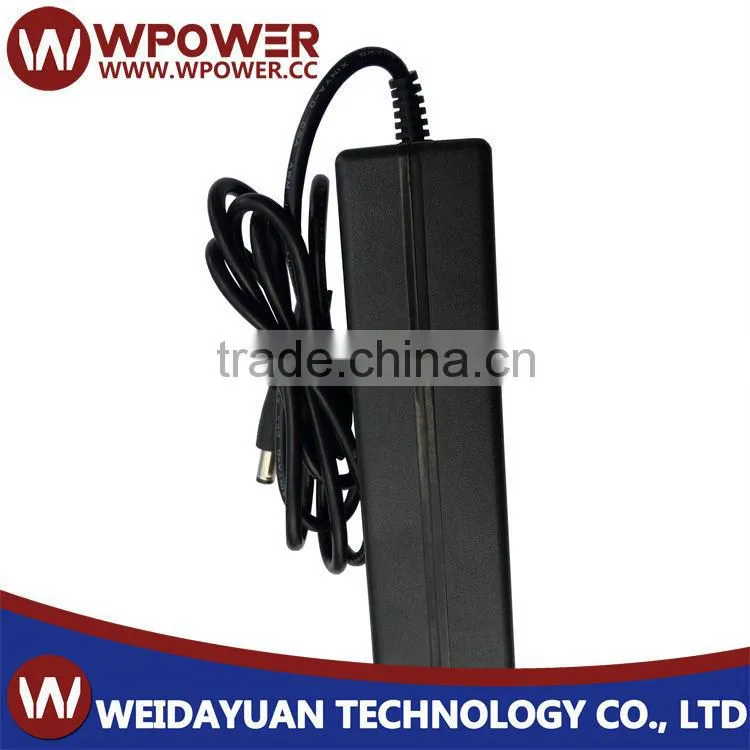

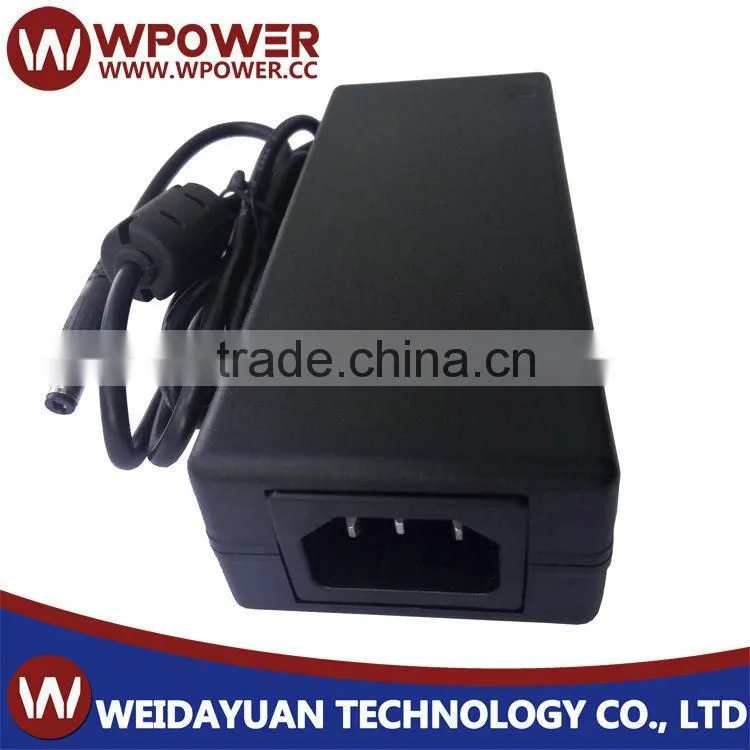

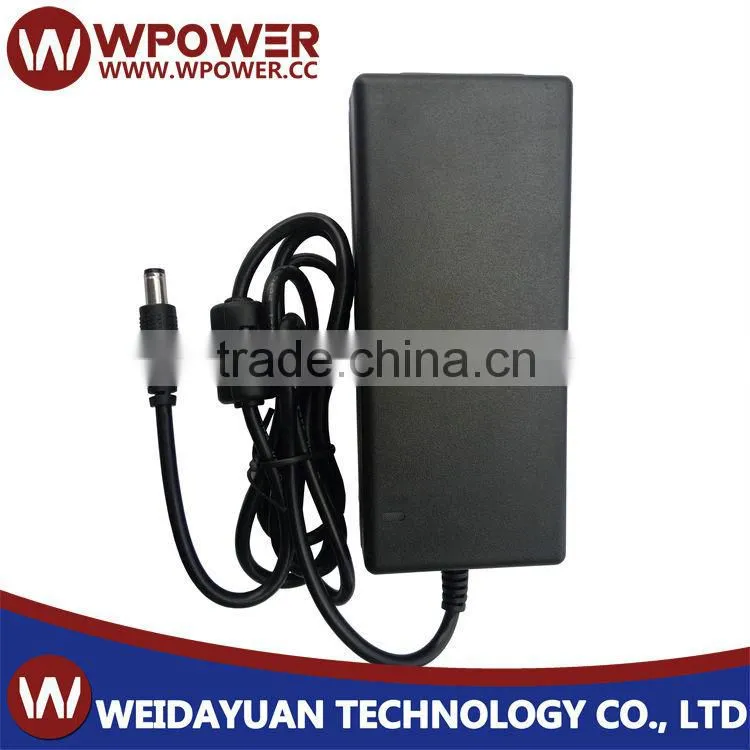

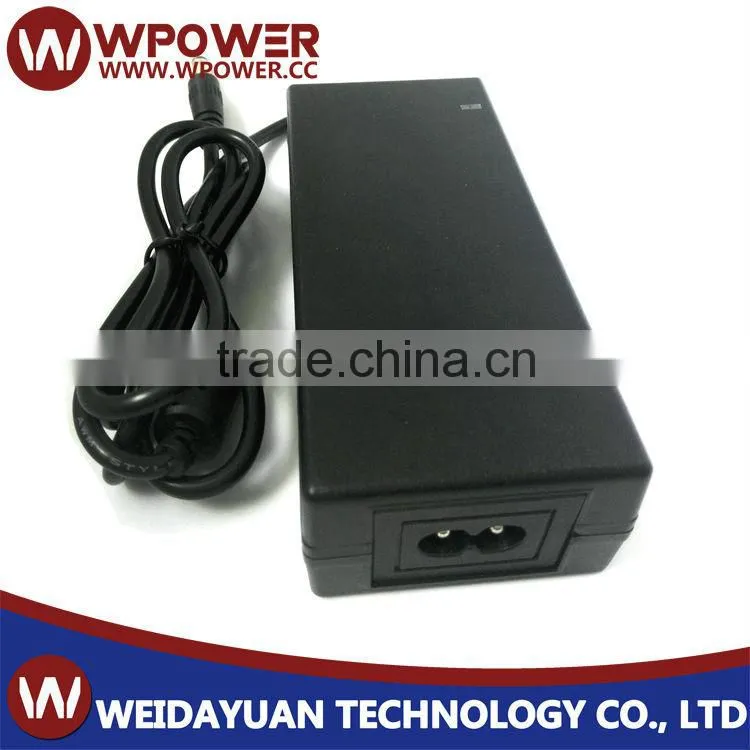

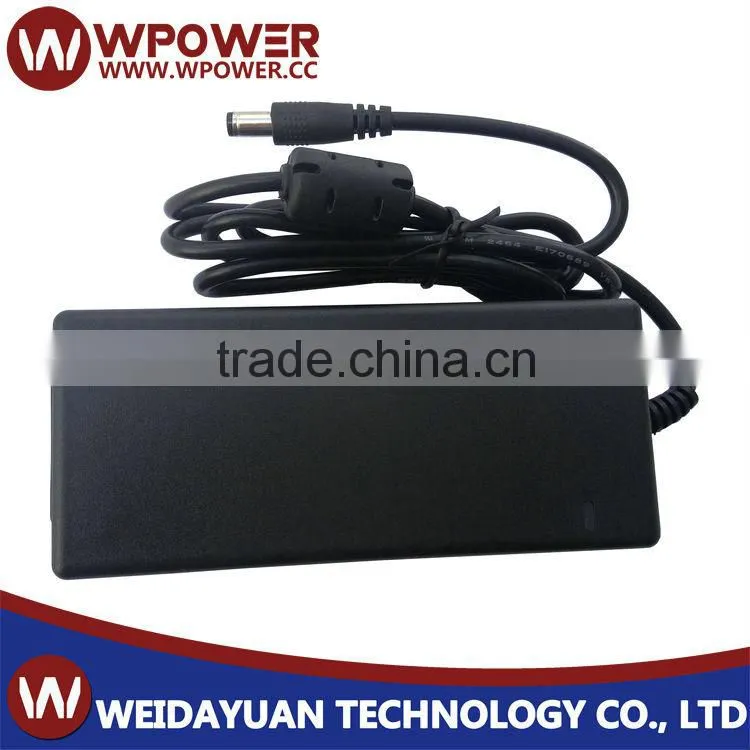

9V 4A 36W AC To DC Switching Mode Power Supply Adapter
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
WPOWER
Model Number:
WDY-09004000
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24V 5A Switching Power Supply With Rohs CE GS BSNegotiableMOQ: 100 Pieces -
CE BS SAA UL CB 12V 4A 48W AC DC AdapterNegotiableMOQ: 100 Pieces
-
Hot! 12V 2A Power Adapter SupplyNegotiableMOQ: 100 Pieces
-
9V3A 27W AC To DC Switching Mode Power Supply AdapterNegotiableMOQ: 100 Pieces
-
9V 7A 63W AC To DC Switching Mode Power Supply AdapterNegotiableMOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
WPOWER
Model Number
WDY-09004000
Output Type
DC
Connection
Desktop
9V 4A 36W AC To DC Switching Mode Power Supply Adapter
| 9V 4A 36W AC To DC Switching Mode Power Supply Adapter as following: | |||
| Output | Voltage | 9 V DC | |
| Current | 4A | ||
| Output power | 36 W | ||
| DC cord and Jack | 1.5M length 16 AWG with 5.5*2.1*10mm DC | ||
| Ripple and Noise | <120Mv at full road with 20MHz bandwidth | ||
| Input | Rated Voltage | 100Vac~240Vac | |
| Frequency Range | 47Hz~63Hz | ||
| conversion efficieny | >85% | ||
| AC Cable and Plug pins | 1.5M length with 2 pins EU plug, IEC C13(Male) AC socket, IEC C14(Female)AC socket and the AC cable in IEC C13 socket | ||
| Protection | Over Voltage,Load& Current /Short Circuit /High Temp | ||
| Temperature | Operating Temperature | 0°C----+60°C | |
| Storage Temperature | -20°C----+85°C | ||
| Isolation test | Isolation voltage | Input/output terminal 3000VAC,5MA | |
| Other | Type | Desktop | |
| Size(mm) | 118*52*33MM | ||
| Weight(g) | 300G | ||
| Shell color | Black | ||
| Shell materials | ROHS approved ABS or PC | ||
| Application | can fit UK US European market ,and can been used by Bluetooth device ,CCTV camera ,and LCD minitor , mobile phone ,pos machine ,laptop ac adapter and so on | ||
| Certificate | Certificate | CE GS TUV UL/CUL FCC 3C ROHS,SAA,PSE,C-TICK | |
| Safety Standard | EN60950-1 UL60950-1 ESD (EN61000 3-3) | ||
| CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |||
| AN/NZS CISPR 22:2006 | |||
9V 4A 36W AC To DC Switching Mode Power Supply Adapter
9V 4A 36W AC To DC Switching Mode Power Supply Adapter
9V 4A 36W AC To DC Switching Mode Power Supply Adapter
9V 4A 36W AC To DC Switching Mode Power Supply Adapter
9V 4A 36W AC To DC Switching Mode Power Supply Adapter
9V 4A 36W AC To DC Switching Mode Power Supply Adapter
