1.Introduction
It can test and calibrate kinds of vibration pick-up (especially low frequency/ultralow frequency ) and other vibration test equipments, also can work as vibration source for vibration tests. Different models with different applications and performances are available.
This table system is equipped with digitization acquisition and calibration equipment, and can automatically acquire, process, operate data, generate reports, thus the operation procedure is greatly simplified, and finish vibration pick-up calibration work easily.
2.Applications
XS-1 small servo vibration table system is mainly used to calibrate sensitivity, amplitude-frequency features and other parameters of low frequency ultralow frequency vibration pick-up (accelerometers, velocimeters and displacement meters), and it can also work as vibration source for small vibration test.
3.Specifications
Working frequency range: |
Velocity 0.1-100Hz, acceleration 0.5-100Hz |
MAX amplitude: |
±2.5mm |
MAX velocity: |
0.08m/s |
MAX acceleration: |
2.5m/s2 |
MAX trust: |
17N |
Table board MAX load: |
Horizontal 4kg, vertical 3kg |
distortion: |
≤5% |
4. System introduction

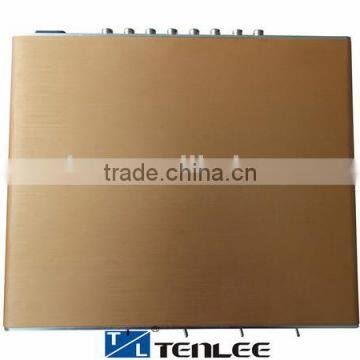

XS-1small servo vibration table system is composed of XS-1 small vibration table servo control and digital calibrator, horizontal electromagnetic vibration table, vertical electromagnetic vibration table, standard piezoelectric accelerometer and charge amplifier.

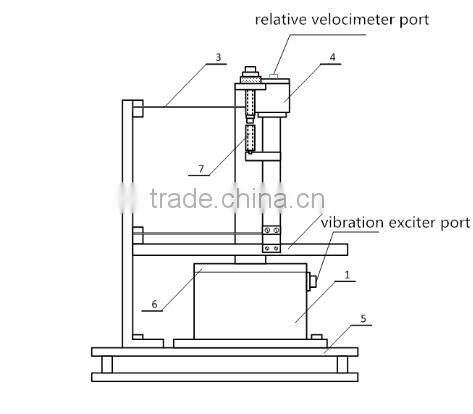

5. Structure diagram
