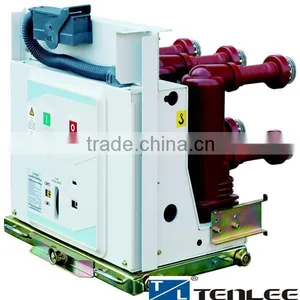

Help CenterVd4 11kv 630a Vacuum Circuit Breaker
Related Products
-
Indoor 11kv Vd4 Vacuum Circuit Breaker Vcb Quality ChoiceUS$ 1,200 - 2,500MOQ: 1 Set -
Indoors VS1 Frontal Spring Operating Mechanism 24kv VcbUS$ 1,500 - 2,500MOQ: 1 Set
-
Embedded Pole Spring Operating Mechanism 24kv Vacuum Circuit Breaker VcbUS$ 1,500 - 2,500MOQ: 1 Set
-
Indoor High Voltage hv 36kv Vacuum Circuit Breaker VcbUS$ 1,500 - 2,500MOQ: 1 Set
-
Indoor High Voltage 40.5kv Vacuum Circuit BreakerUS$ 1,500 - 2,500MOQ: 1 Set
VD4series vacuum circuit breaker is used in indoor high voltage switchgear systems. The overall structure of
it is composed of switch main body and operating mechanism. The operating mechanism is spring type
It uses composite insulated material, so it does not have pollution and explosion problems.
With particular advantages, it is suitable for some network where there is high switch frequency in the working
current range or where repeatedly short circuit breaking operations happen.
VD4 type vacuum circuit breaker can be used as individual units for switchgear type KYN28, AMS, GZS1, ZS1,
Unigear and so on.
Applied standards
-GB1984 high voltage AC breaker
-GBT/11022 common technical specifications for high voltage switchgear and control gear standards
-DL/T403 12KV-40.5KV high voltage vacuum circuit breaker ordering technical specifications
-IEC62271-100 high voltage switchgear and control gear part 1: AC breaker
-IEC56 and similar standards in other main industrialized countries
Routine tests:
Our VTL series vacuum circuit breakers have passed the following routine tests before delivery from our factory:
mechanical performance test, main circuit power frequency withstand voltage tests, dielectric tests on auxiliary
and control circuits, main circuit resistance test, interlock operation tests, mechanical operation tests, electric
operation tests,ect.
Features:
The VTL2 is equipped with a new type modularized spring operating mechanism. It is convenient to maintain, easy
to replace and is more reliable.
VTL2 series embedded pole vacuum circuit breakers have perfect mechanical and electric interlock system.
Meanwhile, it has high operating reliability and long mechanical life. Working with relevant switchgear, it can
realize safe power distribution function and ensure the safety of operators and equipments.
Specifications:
Item |
Unit |
Parameters |
Rated voltage |
KV |
12/17.5 |
Power frequency withstand voltage 1 min |
KV |
48 |
Lightning impulse withstand voltage (peak value) |
KV |
75/95 |
Rated frequency |
Hz |
50/60 |
Rated current |
A |
630/1250/1600/2000/2500 /3150/4000 |
Rated short circuit breaking current |
KA |
20/25/31.5/40 |
Rated short circuit making current (peak) |
KA |
50/63/80/100 |
Rated short time withstand current (4s) |
KA |
20/25/31.5/40 |
Rated peak withstand current |
KA |
50/63/80/100 |
4S thermal stability current |
KA |
20/25/31.5/40 |
Rated dynamic current |
KA |
50/63/80/100 |
Poles:
The embedded pole applied in our vacuum circuit breaker is developed and manufactured by us. Compared with
traditional assembled poles, embedded poles need much less accessories, conduct joints and fasteners. As a result,
the pole assembly process and the reliability of the main circuit is improved. Assembly poles are also available.

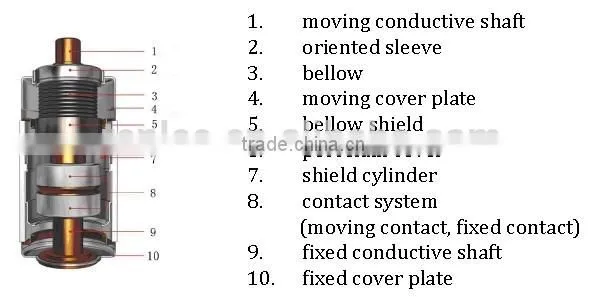

Vacuum interrupter:
Operating mechanism:
Modularized operating mechanism is another feature of our vcb. The operating mechanism is located in the chassis
which is in front of vacuum interrupter. It is convenient to maintain and rapid to replace.

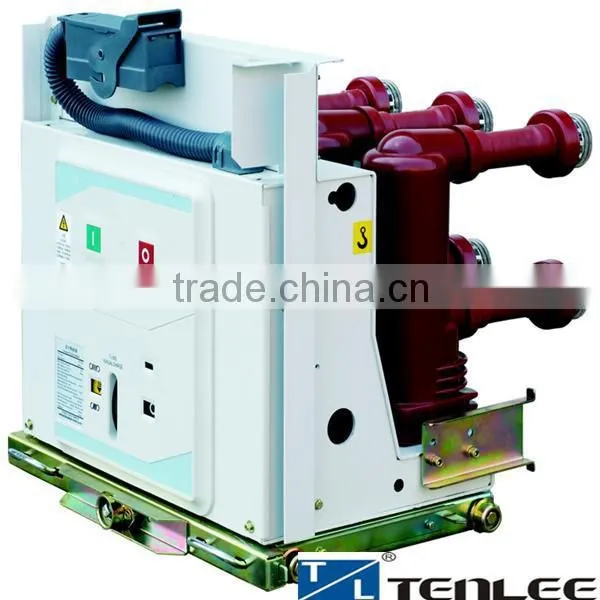

Photos from different views
Other types we can offer:
Production lines:
we can supply paid samples for test.
If any problems resulted from quality and mal-manufacturing, our after-sales service will help you solve these
problems.
We will help you with technical problems during installation and marketing.
Combining manufacturing experience, new technology and industrial knowledge, TENLEE aims to build advanced
power distribution and protection systems.
TENLEE is specialized in designing and manufacturing a comprehensive range of solutions from 12kv to 36kv for indoor/outdoor systems: complete medium voltage switchgear
vacuum circuit breakers
reclosers
load break switches
disconnector switches
cast-resin transformers from
power automation systems
Tenlee has several years of exporting experience. Our customers are all over the world, including Europe, Asia,
Africa, America, Middle East. Most of our products are exported to Europe and are well recognized by them.
Some equipments in our company
1. Do you have other types of indoor vacuum circuit breaker?
Yes, we can offer 12kv,24kv,36kv,40.5kv indoor vacuum circuit breaker both lateral type and frontal type. You can
contact us for more details.
2.What is the payment term?
T/T, wire transfer, west union
3. How about the warranty period?
Usually we offer a 12-month warranty period.
4.Do you have type test?
Yes, we have type test in China and we have also passed type test in Europe.
5.How can I order?
Please contact us and tell us your detailed request. Then we will send you our plan.
