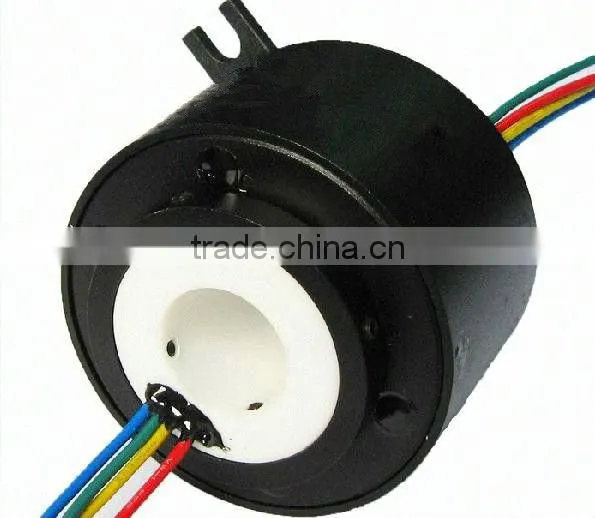

Help CenterThrough Bore Slipring
Related Products
-
Electric MCB Screw Wire Connector,copper Terminal BlockUS$ 0.01 - 0.6MOQ: 1000 Pieces -
2 Axles Auto Spring Return Hall Effect Machine JoystickUS$ 60 - 80MOQ: 3 Pieces
-
2015 NEW! Best Price Power Wheelchair ControllerNegotiableMOQ: 1 Set
-
Electric Swivel Through Bore Slip RingUS$ 50 - 150MOQ: 10 Pieces
-
Electrical MCB Screw Type Wiring Connector,copper Terminal BlockUS$ 0.01 - 0.6MOQ: 1000 Pieces
Specifications
1.used in any electro-mechanical system2.also called a rotary electrical interface,commutator,collector,swivel,rotary joint

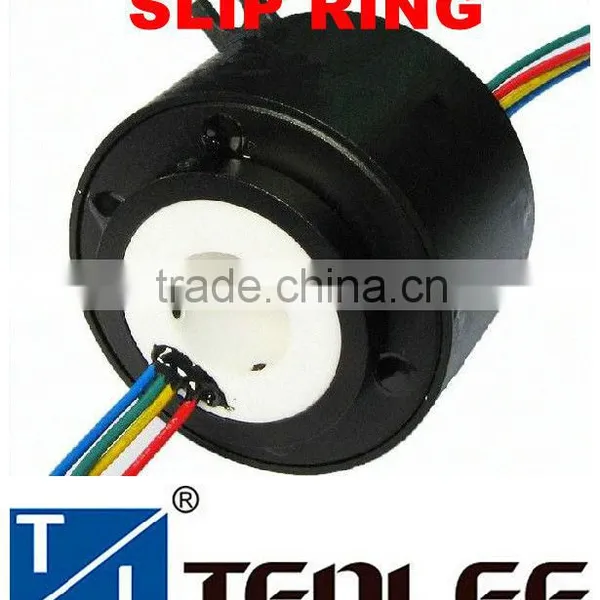

1. Description
Slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and/or data from stationary to a rotating structure.
Slip ring is also called a rotary electrical interface, commutator, collector, swivel, or an electrical rotary joint.
The brush adopts noble metal alloy material, conducting ring use a 90ºV-groove ring. It adopts multilayer noble metal alloy for plating dispose, color coded lead wires are used on both stator and rotor for simplified electrical connection.
2. features and advantages
Mastering the key technique of design and manufacture
Suffice the un-limit revolving video and the digital signals transmission of 360 degree completely
Integrated manufacturing standard may meet the demand of client
Long using life
Can be customized
3. Applications
CCTV pan/tilt cameras and pedestals
Robots and downhole inspection equipment
Test and measuring equipment
Manufacturing and process control equipment
Computer peripherals
Semiconductor handling system
Rotary index tables
Display equipment
Medical equipment
Heavy equipment turrets or cable reels
4. Specification
Electrical data | |
Voltage |
1500VAC |
Rated current (amps) |
According to customer’s request |
Lead size |
AWG 26 color coded, silver plated, PTEE |
Standard lead length |
300mm ( can be customized ) |
High pot |
1500VAC@60Hz |
Insulation resistance |
100M ohm / 500VDC |
Number of rings |
2,6 |
Mechanical data | |
Operating speed |
0-250 rpm |
Temperature range |
-20~+80 Celsius |
Contact material surface |
Brush: silver alloy; Ring: silver-gilt copper |
IP rate |
IP 65/67 |
Housing |
ABS engineering plastic |
Bearing |
Steel ball bearings |
5. Packing

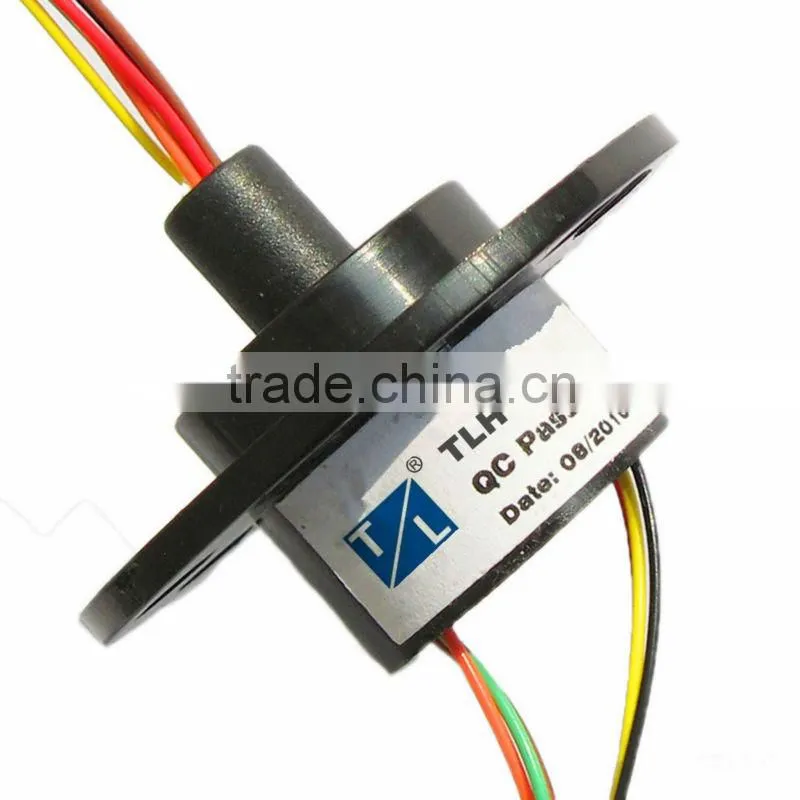

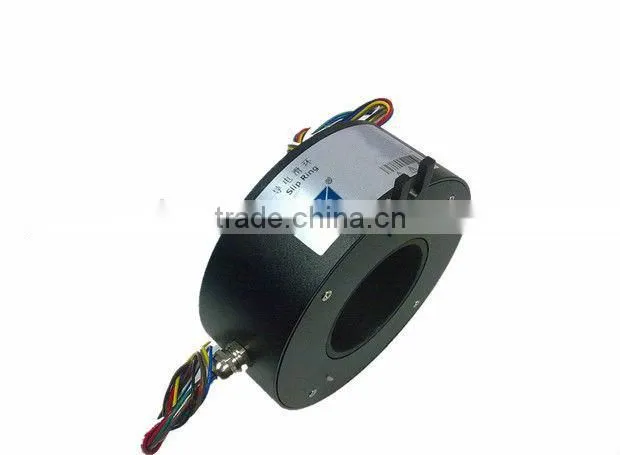

6. More products available
