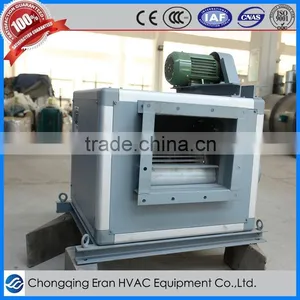

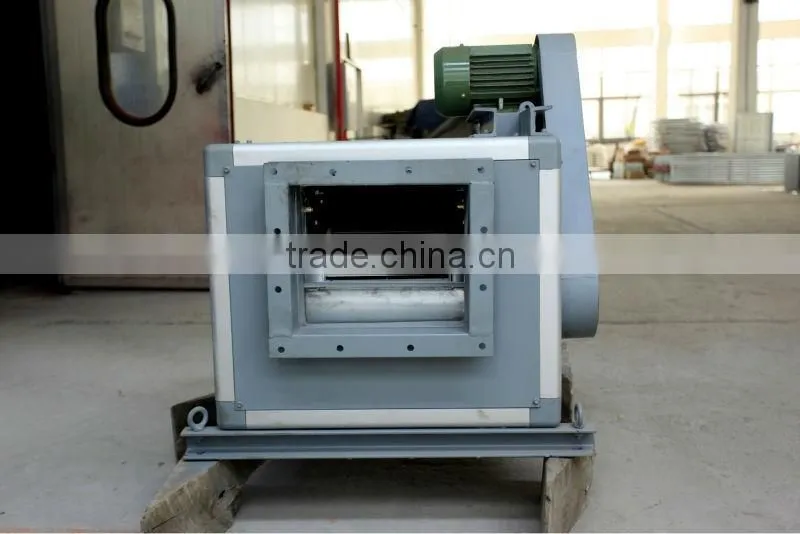

hvac explosion proof ventilation fan blowers
Product Profile: hvac explosion proof ventilation fan blowers is a kind of cabinet type blower with high efficiency and low noise. According to different installation places, it can provide 12 kinds of in-outlet angle. Compared with Axial-flow type ventilator, the price is higher while it can provide better mute effect and it is more suitable for the places where demand low noise and special outlet angle.
Products advantages: Our company was founded in 2005, the annual output value is nearly one hundred million RMB now. Using pipelined professional mold production methods, so we can meet the production needs of large orders and guarantee our products are reliable quality. Complete accessories production and distribution make it easier to install.
Good quality control processes, all products have been through four inspection process. Wind speed, electric current, voltage and noise control all achieve CNS.
Structure of hvac explosion proof ventilation fan blowers
- High quality galvanized steel sheet or color plate , strong corrosion-resisting
- Advanced laser cutting machine, precision of burr-free blades are less than 0.3mm
- Frame, box board assembly design
- Galvanized noise elimination micro perforated panels and superfine glass wool to reduce the noise level.
Features of hvac explosion proof ventilation fan blowers
- Product is removable and conducive to transport, and convenient for field installation
- In strict accordance with the standard for quality inspection and assessment of Ventilation and air-conditioning works(gbj304-88)
Application:
High quality specialty industrial duct fans is widely used in hotel, assembly hall, theater, underground basement, industrial and mining enterprises, etc. Especially it apply to the places where need low noise and high volume of air.
Standard: impeller, chassis ( chassis, collector , bracket ) ; motor ; bearing ( shell ) ; spindles ; pulleys , belt ; belt cover (A type only ) ; Motor regulator track ; flange.
Optional accessories: damping device ; filter ; mating flanges ; muffler ; control box ; Motor rain tank ( only A -type )
Performance table
Device Number | Rotating Speed(r/min) | Air Volume(m³/h) | Total Pressure(Pa) | Motor Model | Power(kw) | Weight(kg) |
10" | 1600 | 4050 | 684 | YDT100L2-4/6 | 2.2 | 121 |
4530 | 673 | |||||
5100 | 665 | |||||
1066 | 2700 | 304 | 0.7 | |||
3020 | 299 | |||||
3400 | 296 | |||||
12" | 1275 | 6457 | 714 | YDT112M-4/6 | 3.2 | 167 |
7293 | 711 | |||||
8129 | 707 | |||||
850 | 4305 | 317 | 1.1 | |||
4862 | 316 | |||||
5419 | 314 |
The above table is just part of the performance of our product. We can provide customized product, so please make your performance requirements.
Our company:
Eran was established in 2005, whose plant covering an area of over 10,000 square meters. We are a professional enterprise and specialized in ventilation system products design, manufacture, sale and installation.
There are 3 set of advanced production lines with numerical control, advanced shearing, bending and stamping equipment, and precision plasma cutting & vent processing machine. By using of the advanced BIM technology and assembly line operation, Eran Equipment’s technological level and production capacity has arrived at the leading position of this industry. The company has passed ISO9001 Quality Management System, ISO14001 Environmental Management System and GB/T28001 Occupation Health Safety Management System.
