1mm Pitch Wire to Board SMD 20 30 40 50 Pin Connector

Name: 1mm Pitch Wire to Board SMD 20 30 40 50 Pin Connector
Brand: Goldensunda
Availability: InStock

FOB Price

US$ 0.41 - 1 / Piece

1000 Pieces(Min. Order)

Port Taiwan Port

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Taiwan, China	Brand Name	Goldensunda
Model Number	AS08701XXXXX1	Type	Other, All Electric Area
Application	PCB	Gender	Other, Male / Female

Product Description

1mm pitch Wire to Board SMD 20, 30, 40, 50 pin Connector

Packaging & Shipping

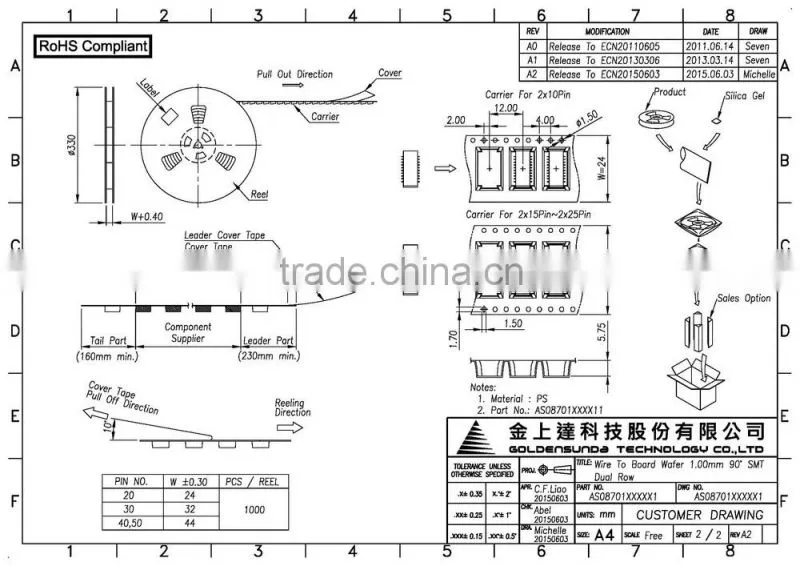

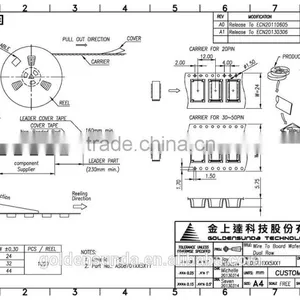

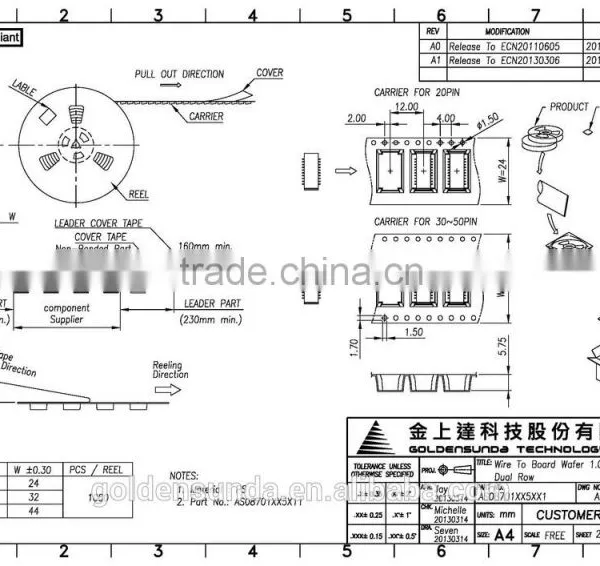

1. Tape & Reel 2. Tube

Product Description

1mm pitch Wire to Board SMD 20, 30, 40, 50 pin Connector

Specification	1. Current Rating : 1A AC/DC
	2. Voltage Rating : 50V AC
	3. Contact Resistance : 20mΩ Max. (Initial) 40mΩ Max. (Final)
	4. Insulation Resistance : 100MΩ Min. At 500V
	5. Dielectric Withstanding Voltage : AC 500V/Minute
	6. Operating Temperature : -25°C ~ +85°C
Material	1. Housing : High Temperature Thermoplastic UL94V-0
	2. Tab : Copper Alloy T=0.20mm
	3. Contact Pin : Copper Alloy T=0.20mm
Finish	1. Housing : Natural None H.F. or H.F.
	2. Tab : Tin Plated Over Nickel
	3. Contact Pin : Bright Tin Plated Over Nickel, Matte Tin Plated Over Nickel, Gold Flash Over Nickel

Applications

Automotive / GPS / Consumer / DVD Players / Notebook PC / Smart Phone and Mobile Devices / Solid State Lighting / Track lighting / Linear lights / PC Industry / Communications Industry / Mobile Industry / Electronic Components

* This product is applicable for a variety of purposes, the above mentioned only represents some of the more common uses.

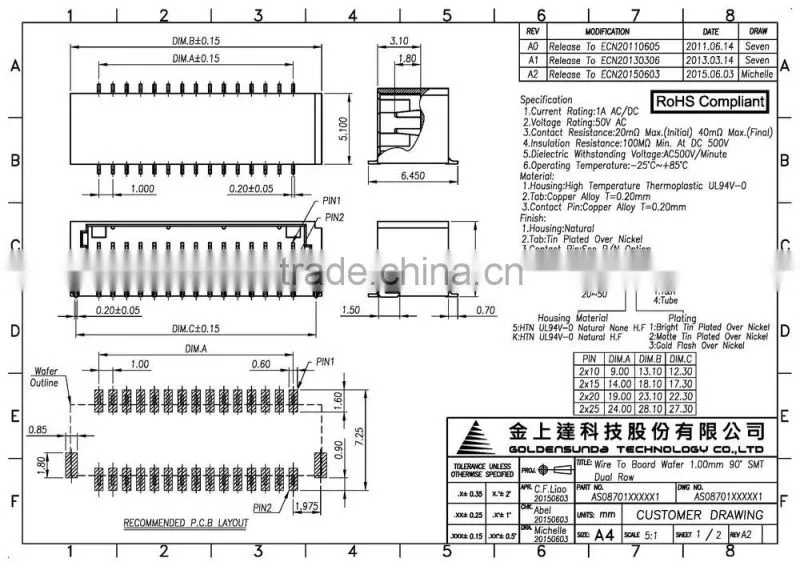

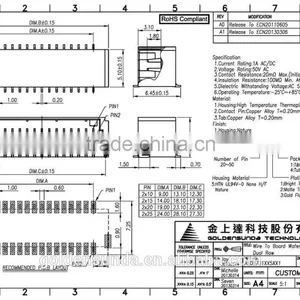

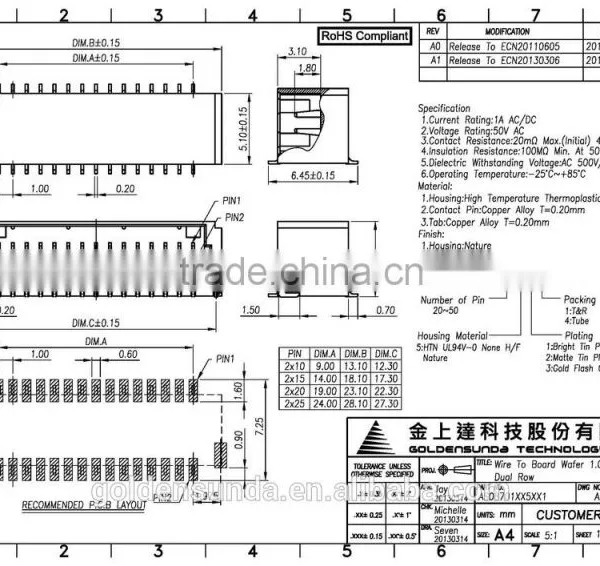

Drawing

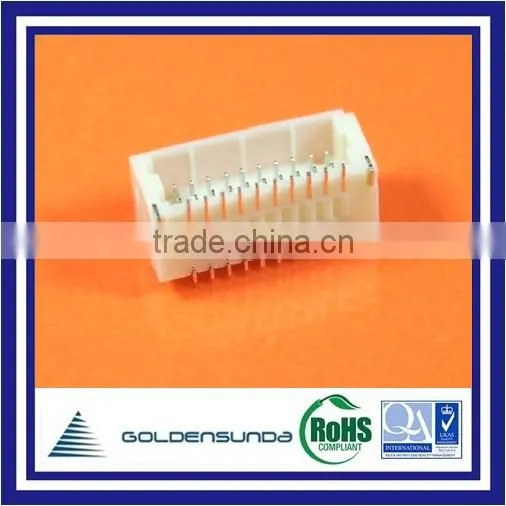

Product Picture

Certifications

Company Information

Goldensunda was founded in 1999, we are professional connector manufacturer for electronic components, such as Wire to Board Connectors, Wafer, Housing, Terminal, Board In, Board to Board Connectors, Pin Header, Female Header, Box Header, FPC / FFC Connectors, Wire to Wire Connectors, Input & Output (I/O) Connectors, PC Board Connectors, Wire Harness, Round Cable Assembly, FFC Cable, Flat Cable...etc. We manufacture all our products in our ISO9001:2008-certified factory in Taiwan. Goldensunda offers comprehensive connector solutions for a wide range of electronic. Quality, Efficiency, Experience, Innovation, customized OEM / ODM, Professional, Technology & Service are our competitive advantages.

Furthermore, for environmental friendly issue, we are in manufacturing RoHS compliant and low/free Halogen connectors. We strive to provide a win-win situation and look forward to cooperating with our valuable customers like a partner for long term. Welcome for your inquiry, and please contact us today!

Our Services

OEM / ODM requests welcome!

Contact us today for more details.
