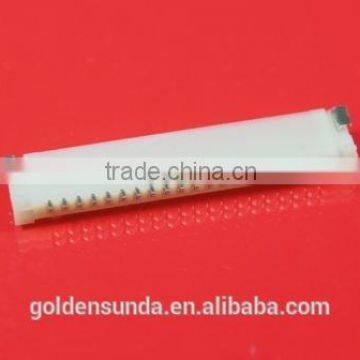

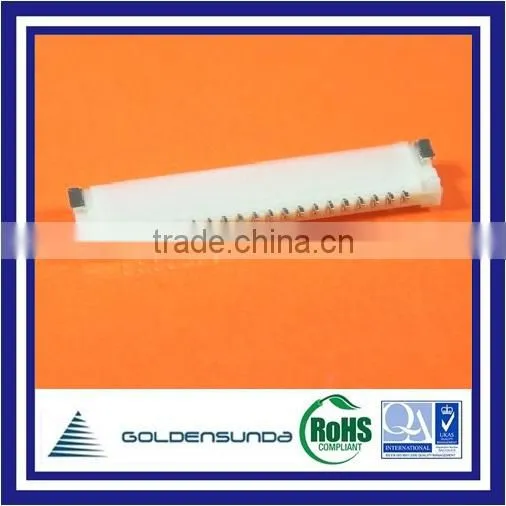

1.25mm Pitch 20, 25, 30 Pin Available SMT Wire to Board 30 Pin Connector
- Taiwan Port
You May Like
-
1.25mm Pitch SMT 90 Right Angle Type Wire to Board 25 Pin Connector
-
1.25mm Pitch SMT 90 Right Angle Type 20, 25, 30 Pin Available 20 Pin Connector
-
1.25mm Pitch SMT Electronic Wire to Board 40 Pin Connector 10, 20, 30 40 Pin Available
-
1.25mm Pitch SMT Electronic Wire to Board 30 Pin Connector 10, 20, 30 40 Pin Available
-
1.25mm Pitch 10, 20, 30 40 Pin Available SMT Electronic Wire to Board 20 Pin Connector
-
1.25mm Pitch 10, 20, 30 40 Pin Available SMT Wire to Board Connector Electronics
Product Details
| Place of Origin | Taiwan, China | Brand Name | Goldensunda | |
| Model Number | AS07803XXXXX1 (20, 25, 30P) | Type | Other, All Electric Area | |
| Application | PCB | Gender | Other, Male / Female |
Product Description

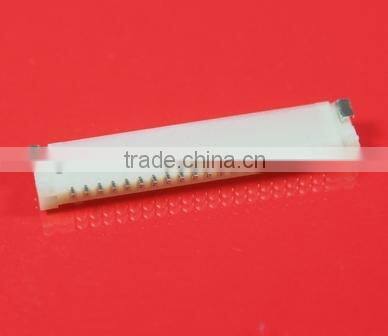

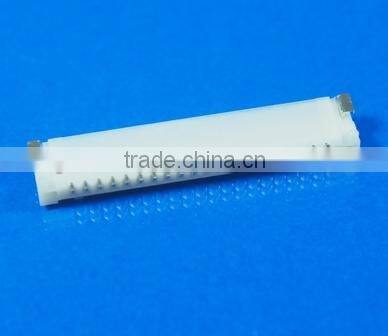

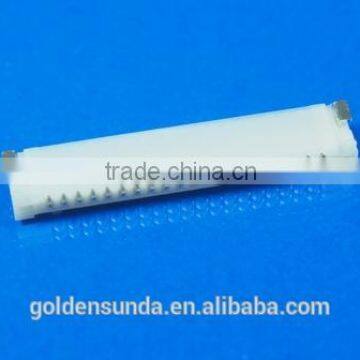

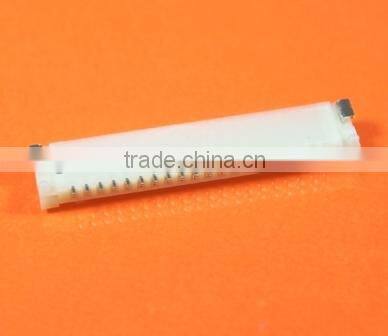

1.25mm pitch 20, 25, 30 Pin Available SMT Wire to Board 30 Pin Connector

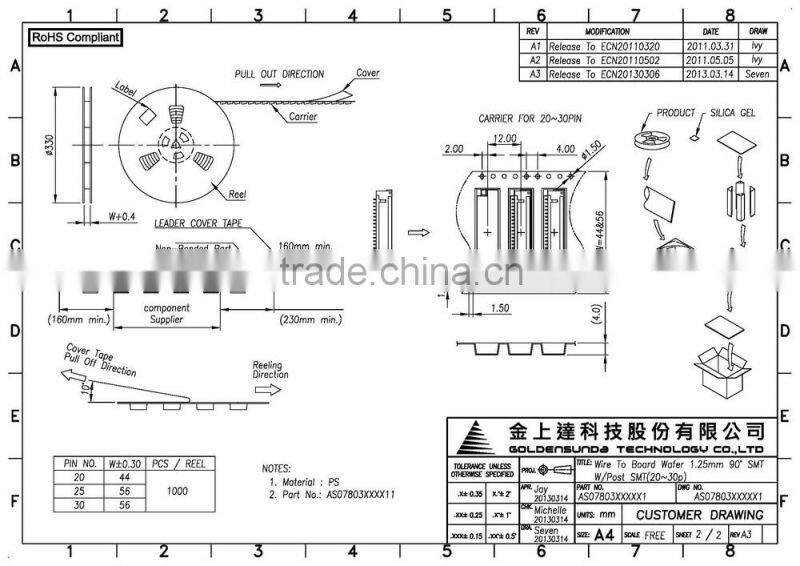

1. Tape & Reel 2. Tube
1.25mm pitch SMT Wire to Board 30 Pin Connector, 20, 25, 30 Pin Available

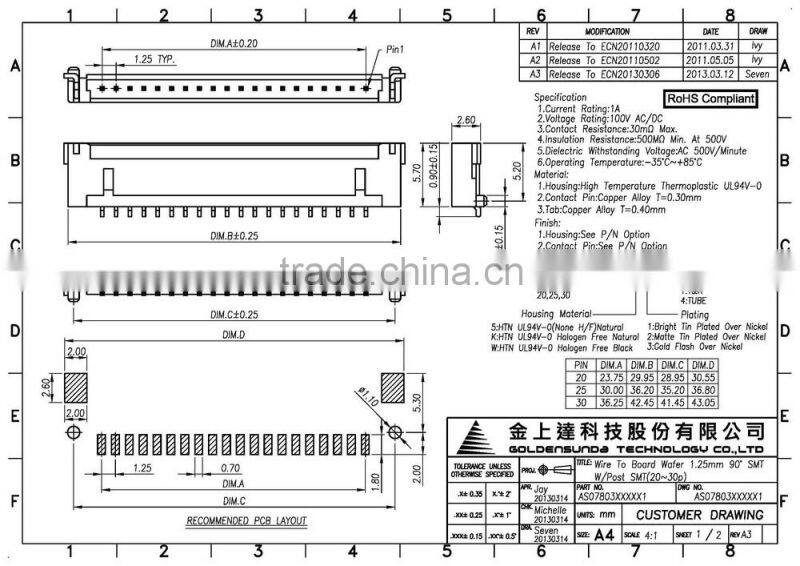

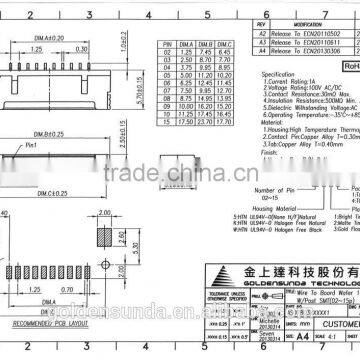

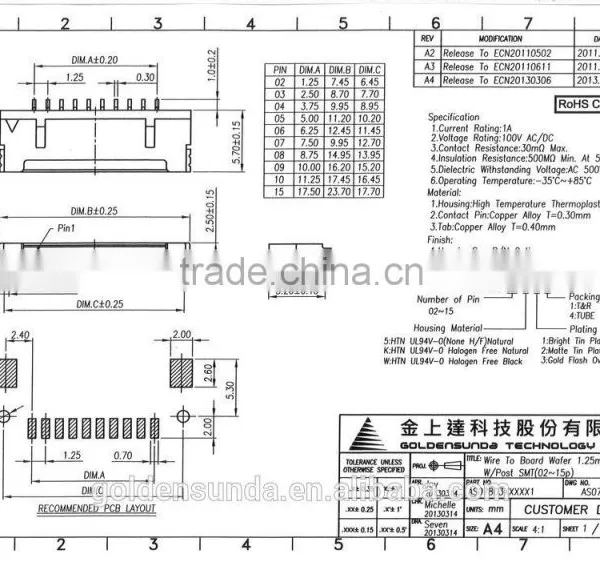

| Specification | 1. Current Rating : 1A |
| 2. Voltage Rating : 100V AC/DC | |
| 3. Contact Resistance : 30mΩ Max. | |
| 4. Insulation Resistance : 500MΩ Min. At 500V | |
| 5. Dielectric Withstanding Voltage : AC 500V/Minute | |
6. Operating Temperature : -35°C ~ +85°C | |
| Material | 1. Housing : High Temperature Thermoplastic UL94V-0 |
| 2. Tab : Copper Alloy T=0.40mm | |
| 3. Contact Pin : Copper Alloy T=0.30mm | |
| Finish | 1. Housing : Natural or Black |
| 2. Tab : Tin Plated Over Nickel | |
| 3. Contact Pin : Bright Tin Plated Over Nickel or Matte Tin Plated Over Nickel or Gold Flash Over Nickel |
Automotive / GPS / Consumer / DVD Players / Notebook PC / Smart Phone and Mobile Devices / Solid State Lighting / Track lighting / Linear lights / PC Industry / Communications Industry / Mobile Industry / Electronic Components
* This product is applicable for a variety of purposes, the above mentioned only represents some of the more common uses.
Goldensunda was founded in 1999, we are professional connector manufacturer for electronic components, such as Wire to Board Connectors, Wafer, Housing, Terminal, Board In, Board to Board Connectors, Pin Header, Female Header, Box Header, FPC / FFC Connectors, Wire to Wire Connectors, Input & Output (I/O) Connectors, PC Board Connectors, Wire Harness, Round Cable Assembly, FFC Cable, Flat Cable...etc. We manufacture all our products in our ISO9001:2008-certified factory in Taiwan. Goldensunda offers comprehensive connector solutions for a wide range of electronic. Quality, Efficiency, Experience, Innovation, customized OEM / ODM, Professional, Technology & Service are our competitive advantages.
Furthermore, for environmental friendly issue, we are in manufacturing RoHS compliant and low/free Halogen connectors. We strive to provide a win-win situation and look forward to cooperating with our valuable customers like a partner for long term. Welcome for your inquiry, and please contact us today!
OEM / ODM requests welcome!
Contact us today for more details.
