Help CenterHigh Quality Ventilation Air Plenum Box
Related Products

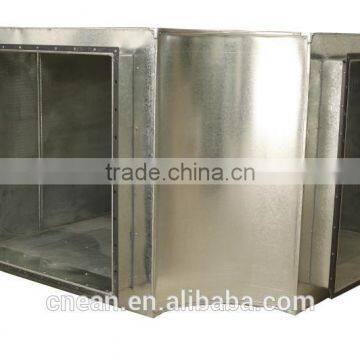

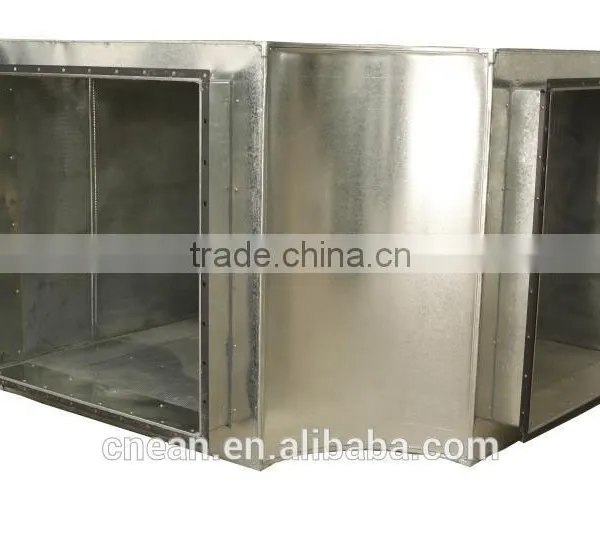

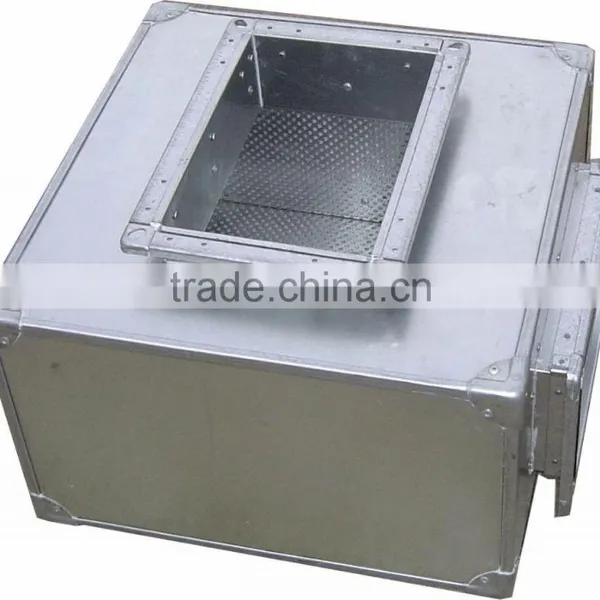

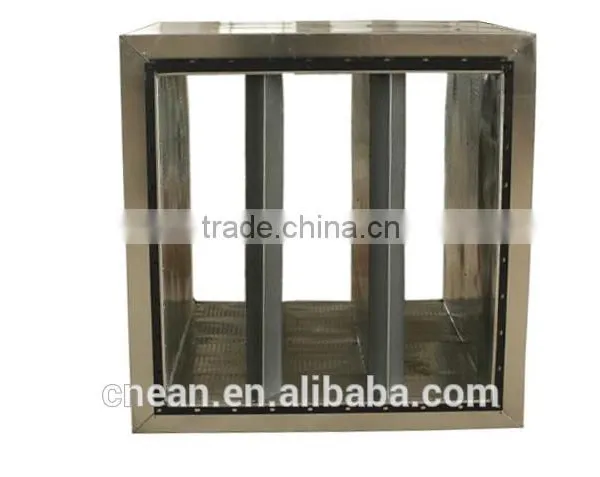

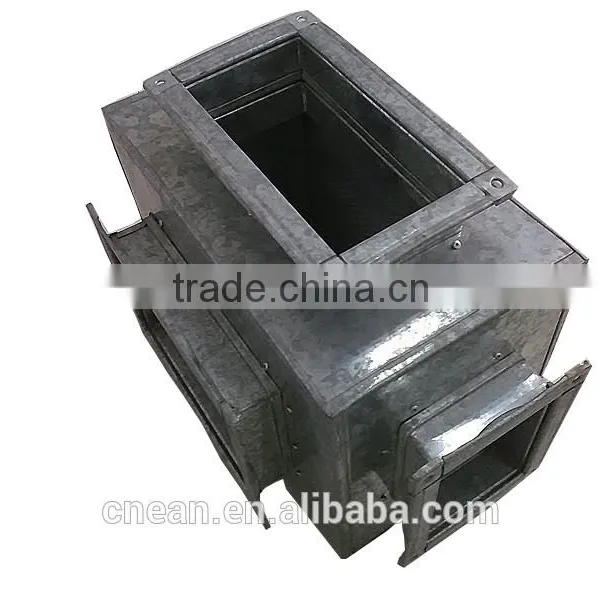

ZJ Ventilation Air Plenum Box
Function of ZJ Ventilation Air Plenum Box
Pressure boost, noise noise elimilatin and air division
Feature of ZJ Ventilation Air Plenum Box
1. Broadband, Good performance, Low airflow resistance
2. High quality galvanized steel sheet box boards
3. Galvanized noise elimination microperforated panels internal layers
4. Interlayers use superfine glass wool and glass wool cloth

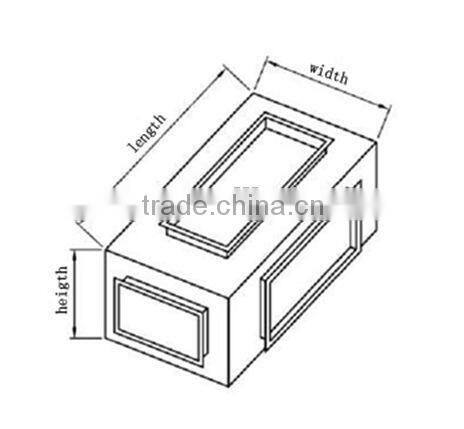

Structure chart:
ZJ Ventilation Air Plenum Box
Our company:
Eran was established in 2005, whose plant covering an area of over 10,000 square meters. We are a professional enterprise and specialized in ventilation system products design, manufacture, sale and installation.
There are 3 set of advanced production lines with numerical control, advanced shearing, bending and stamping equipment, and precision plasma cutting & vent processing machine. By using of the advanced BIM technology and assembly line operation, Eran Equipment’s technological level and production capacity has arrived at the leading position of this industry. The company has passed ISO9001 Quality Management System, ISO14001 Environmental Management System and GB/T28001 Occupation Health Safety Management System.
HVAC manual air vent valve for air conditioning ventilation
Product Description:
As HVAC manual air vent valve for air conditioning ventilation, the damper is passive fire protection products usedin heating, ventilation, and air conditioning (HVAC) ducts to prevent the spread of fire or smoke inside the ductwork through fire-resistance rated walls and floors. It includes fire damper, smoke damper, regulating damper and air supply outlet.
When a rise in temperature occurs, the fire damper closes. Usually activated by a thermal element which melts at temperatures are higher than ambient but low enough to indicate the presence of a fire, allowing springs to close the damper blades.
Regulating damper is applied to adjust air volume, and air supply outlet is used to provide fresh air.
Application:
Apply in pipeline and duct of ventilation system.
Features:
- Using galvanized steel as material to make sure good insulation performance, fire & corrosion resistance.
The flange is bended directly by the frame.
The valve size and color can be customized.
Duration, long service life.
- Easy installation.
Advantages:
- Excellent quality control processes, all products have been inspected strictly.
- The quality of products has reached the standard of “Code of acceptance for construction quality of ventilation and air conditioning works" (GB50243-2002) and "Fire dampers for building venting and smoke-venting system" (GB15930 2007).
- Complete accessories production and distribution make it easier to install.
Specification:
Place of Origin: Chongqing, China (Mainland) Brand Name: Eran
1 | Flange width | Valve side length (MM) | Width (MM) |
A≤630 | 30 | ||
630<A≤1500 | 30 | ||
1500<A≤2500 | 40 | ||
A>2500 | 50 | ||
2 | Material | Adopt high quality galvanized steel, riveting by non-rivet method | |
3 | Valve thickness | δ2.0MM high quality galvanized sheet | |
4 | Blade shaft | Φ12 round steel | |
5 | Shaft sleeve | Brass | |
6 | Steel valve surface anticorrosive disposal | Pickling, phosphating then spraying.
| |
7 | Temperature- fuse protector | None / 70 degrees / 150 degrees / 280 degrees | |
8 | Control mechanism classification | Manual on and off device, temperature control, air regulation, output signal. | |
9 | Nominal voltage | DC24V | |
10 | Nominal electric current | <0.3A/1.5A | |
11 | Micro switch | Contact capacity 380V 3A | |
12 | Connection port | Contact rating 500V 3A | |
13 | Action method | When fire occurs, temperature-fuse protector motion, the valve under the spring pulled shut automatically, 0-90 degrees manually adjust the blade opening angle | |
14 | Reset method | Manual reset ,automatic reset | |
15 | Air leakage | In standard conditions, as the differential pressure is 300 Pa, the air leakage is less than the national standards. | |

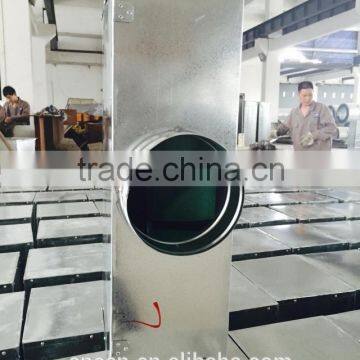

Our company and factory:
Our service:
- Your inquiry and question will be replied within 24 hours.
- Professional foreign sales staff gives you best service.
- Our products include: ventilation fan, air duct, air valve, air vent, plenum chamber, muffler, soft connecter and accessories
- All our products will be provided with best quotation, excellent quality and prompt delivery.
- Sample is available by express.
- OEM is available
