Help CenterNew Automatic High Efficiency no Pollution Pitch Melting Equipment
Related Products
-
New Automatic High Efficiency Energy Saving Pitch Melting EquipmentUS$ 57,000 - 80,000MOQ: 1 Set -
Pitch Melting Equipment for Asphalt Mixing PlantUS$ 57,000 - 80,000MOQ: 1 Set
-
Road Construction Machinery Pitch Melting EquipmentUS$ 57,000 - 80,000MOQ: 1 Set
-
Good Performance Pitch Melting MachineryUS$ 57,000 - 80,000MOQ: 1 Set
-
Asphalt Melting Equipment for Road BuildingUS$ 57,000 - 80,000MOQ: 1 Set
Specifications
1.Easy operation, modular design2.Closed type production, Energy Efficiency
3. Wide range of application
4.No Pollution
ZAM series Pitch Melting Equipment is consist of melting tank, sliding supporting platform, thermal oil furnace heating system and electrical apparatus control system. The asphalt melting tank is divided into two chambers. The upper one is melting chamber for barreled bitumen; the lower one is equipped with heating coil, and the heating coil exchange heat with asphalt barrel in radiation way to achieve the purpose of asphalt melting. The lower chamber keeps up heating to bitumen to reach the temperature of suction pump( 100°C),then the bitumen pump pumps the bitumen into high-temperature tank, if increasing the heating time, you can get higher temperature.

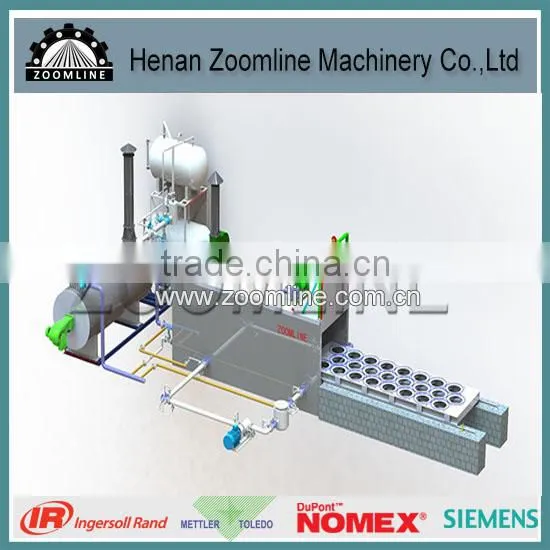

Structure Picture:
The Feature of ZAM series Pitch Melting Equipment
1.Closed type production, Energy Efficiency, No Pollution
2.Easy operation, modular design, easy to transportation and assembly
3.Batch-type fully enclosed structure, saving energy 50% than continuous type pitch melting equipment.
4.Exhaust from thermal oil furnace is used again, high energy utilization
5.ZAP series asphalt melting equipment can be applied to different specification barrel shape in different country, strong applicability, wide range of application.
6.Using large displacement heat preservation pump to internal circulation and agitation, asphalt be heated more quickly and uniform heating. water vapor is exhausted quickly by induced draft fan to dewatering by negative pressure.
7.Thermal oil furnace adopts automatic Control System and international brand burner which can automatically control according to oil temperature with instrument monitoring
8.High power thermal oil furnace, heating speed faster, stable and reliable performance
Pictures of delivery:
ZAM Series Pitch Melting Equipment Technical parameter
model |
ZAM-4 |
ZAM-6 |
ZAM-8 |
remark |
productivity(T/H) |
4-6 |
6-8 |
8-10 |
Barreled base asphalt, the Operating temp no less than 20°C |
|
temperature of finished asphalt (°C) |
120-140 |
120-140 |
120-140 |
|
Barrel qty. of each vehicle |
24 |
32 |
44 |
All barrel shape |
|
calorific capacity of thermal oil furnace (kcal/h) |
|
|
|
Diesel oil burner |
|
emperature of conduction oil (°C) |
200-240 |
200-240 |
200-240 |
|
|
total power KW |
|
|
|
|
|
Overall dimension (LxBxH)mm |
|
|
|
|
