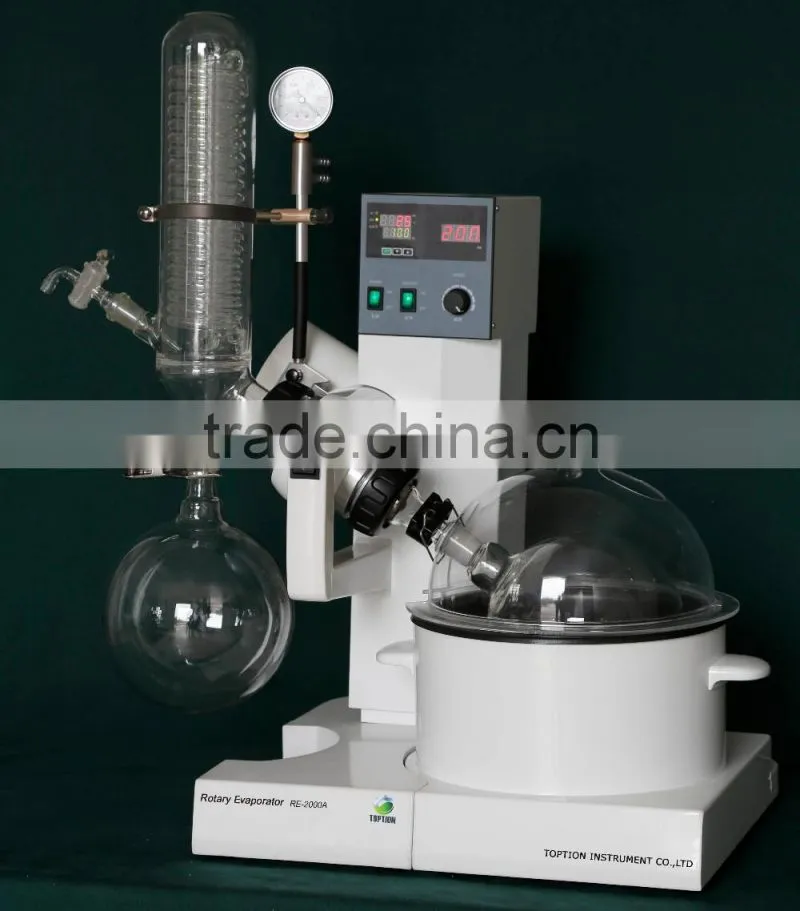

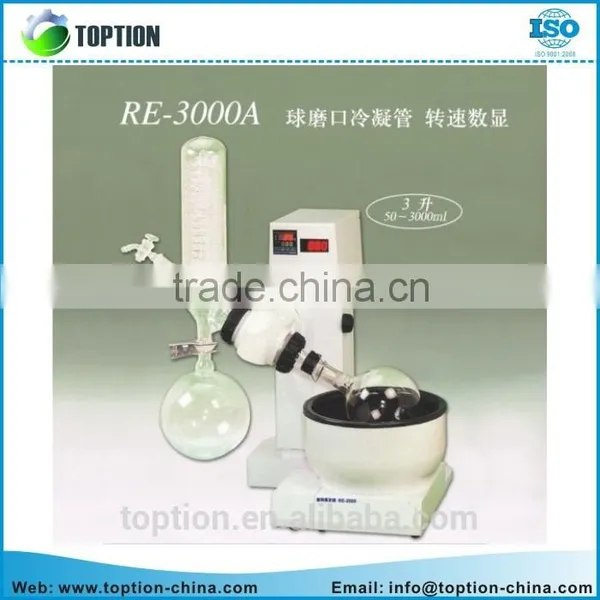

Rotary Evaporator/vacuum rotary evaporator
Rotary Evaporator is the use of vacuum pressure, constant temperature heating conditions, using the rotating bottle constant speed rotation, the formation of large area thin film, high evaporation equipment installations.
Rotary evaporator is mainly used for pharmaceutical, chemical and bio−pharmaceutical industry concentration, crystallization, drying, separation and dissolution of coal recovery. The principle is: in a vacuum condition, constant temperature heating, to rotate bottles constant rotation, the material in the sidewall formation of large area thin film, high evaporation. Solubilization by high glass condenser vapor cooling, recovery in the collection bottle, greatly improve the efficiency of evaporation, particularly easy to use in high−temperature decomposition of the variability of biological products was concentrated and purified
Key Features Rotary Evaporator/vacuum distillation unit
New floor rotary evaporator, using a large capacity, large diameter rotary evaporation flask, increased evaporation area, in the decompression in the water bath, side spin, side heating, diffusion or evaporation of the solution, a wide range of applications and sample size concentration, drying, extraction, recycling, chemical, pharmaceutical, food, environmental, university research laboratory and industrial mass production of such good equipment.
Technical parameters Rotary Evaporator/vacuum distillation unit
type |
RE-5203A |
Down mode |
Rocker plate buttons, electric lift |
The speed range(rpm) |
0~150 |
Temperature range(℃) |
RT~100 |
condenser |
Vertical type, double serpentine tube |
Rotating bottle max capacity (L) |
3 |
Max capacity to collect bottles (L) |
2 |
Motor power (W) |
1630 |
The advantage of Rotary Evaporator/vacuum distillation unit
1 |
All the glass parts with high Borosilicate Glass 3.3 |
2 |
The voltage can be changed to 110V /60Hz (Standard 220V/50Hz), related plug for your country using. |
3 |
With oil bath (RT~180°C)and water bath (RT~100°C) for your choice. |
4 |
Can make special opening on the condenser for testing vapor inlet temp. |
5 |
PT 100 sensor with digital displayer can be added for vapor inlet temperature. |
6 |
Standard exported wooden package to ensure safe delivery. |
7 |
Automatic bath lifting system; |
8 |
Rotary speed between 10 - 110 rpm. |
9 |
All PTFE valves |
10 |
Continuous receiving without interrupt operation. |
11 |
Seal: PTFE Viton gasket vacuum |
12 |
Ultimate Vacuum Level: < 2 mbar. |
13 |
Transparent shield, insulation, energy saving, explosion-proof, splash-proof, rust-proof, anti-pollution, improve safety performance. |
1L, 2L, 3L, 5L, 10L, 20L, 30L,50L Rotary Evaporator can be provided by us. You can choose the rotary evaporator with water bath or oil bath.
Rotary Evaporator with Discharging Valve, easy for collecting material and clean !!!
We believe the quality will not let you down !
Customized Glass Reactor also welcome here !!!
TOPTION---Your top option !
