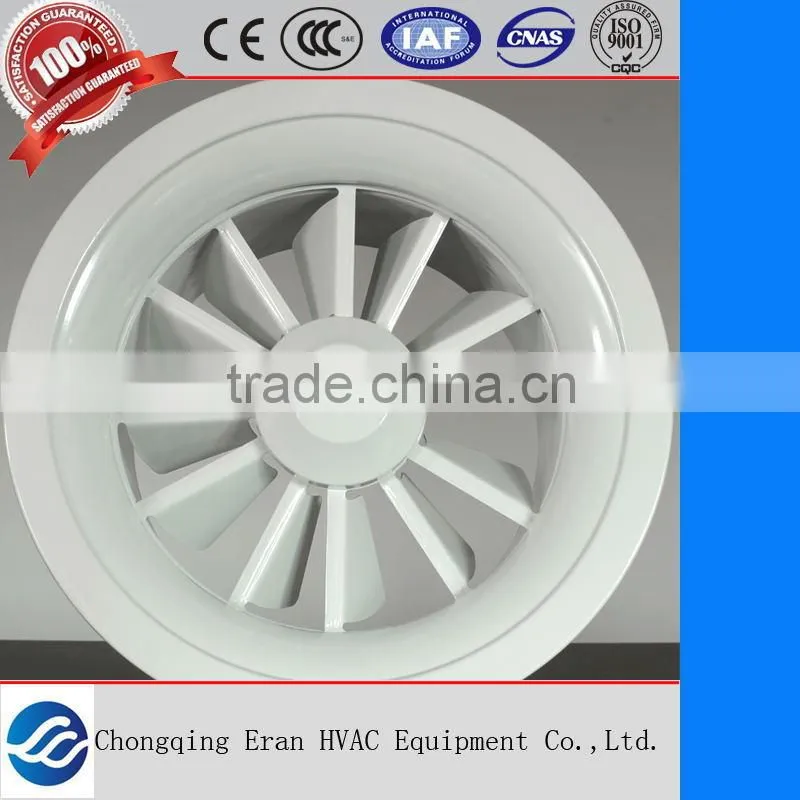

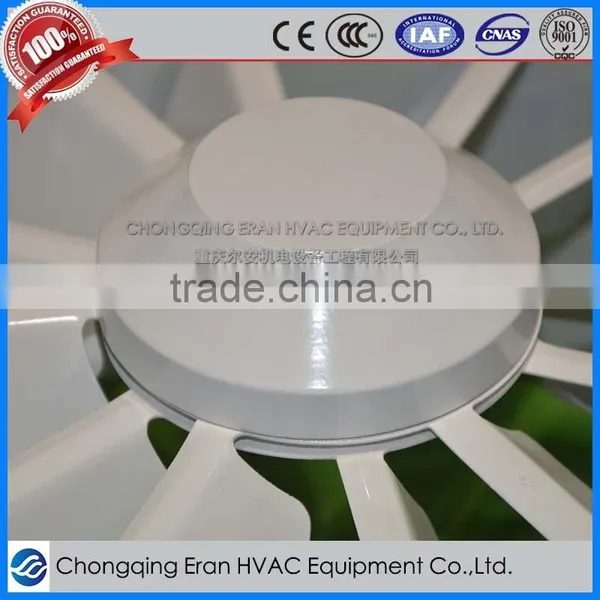

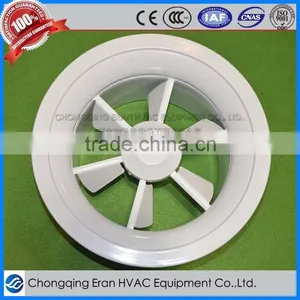

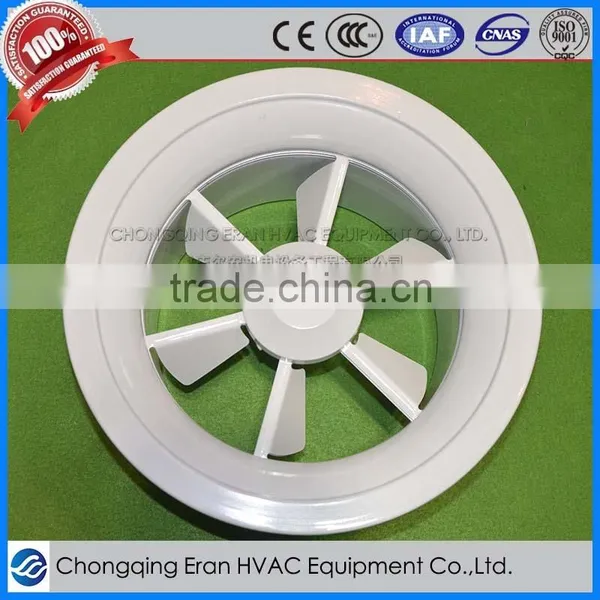

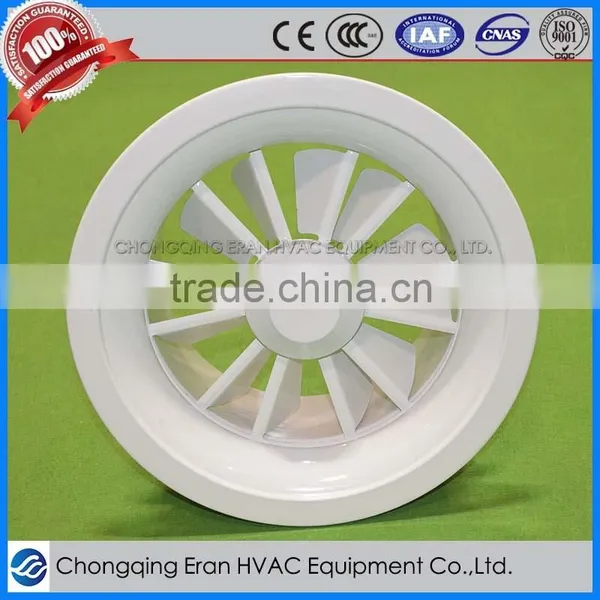

Aluminum Round Variable Swirling Air Diffuser
Product Description
Aluminum Round Variable Swirling Air Diffuser, it can provide warm air or cold air at its greatest effect upon on different requires. The air is delivered in spiral shape. Air inductivity is big so that the supplied air can be melded with surround air quickly. The air speed attenuate fast to make sure the air that reaches people is not so strong. The outside frame is round; the inner core swirl blade is adjustable. Air supply depth is or above 3.8m. It is especially suitable for installation in place where has large temperature gap.
Thickness: 1mm
Features for Aluminum Round Variable Swirling Air Diffuser
- The air speed attenuate fast so that the air reaches people is not so strong.
- It has long delivery distance and low noise. Easy to be installed.
- Adopt excellent aluminum alloy, it has strong corrosion resistance and rigidity.
- The surface is finished by anodic oxidation, baking vanish oxidation or electrostatic spraying. The appearance is flat and artistic.
- All OEM size and color are available upon customer’s requests.
Standard Size:face size=neck size+60mm=A+60mm
Detailed Pictures
XL/φD
Specification | ΦB | ΦD1 | ΦD2 | H | T |
Φ315 | 315 | 480 | 374 | 203 | 63 |
Φ350 | 350 | 515 | 410 | 220 | 71 |
Φ400 | 400 | 565 | 460 | 238 | 80 |
Φ500 | 500 | 665 | 560 | 310 | 103 |
Φ630 | 630 | 871 | 700 | 383 | 125 |
Φ800 | 800 | 1077 | 870 | 568 | 160 |
Φ1000 | 1000 | 1350 | 1080 | 615 | 205 |
Application: factory, air port, theatre, stage, bank, gym to deliver and remove air and realize the air circulation
Advantage for Aluminum Round Variable Swirling Air Diffuser
- Our examination system is strict after several inspections.
- We adopt advanced molding equipment and professional computer designing
- Assembly line producing ensures high quality and efficiency
- Complete accessories production and distribution make it easier to install.
Your inquiry and question will be replied within 24 hours.
Professional foreign sales staff gives you best service.
Our products include: ventilation fan, air duct, air valve, air vent, plenum chamber, muffler, soft connecter and accessories
All our products will be provided with best quotation, excellent quality and prompt delivery.
Sample is available by express.
OEM is available.
Other series products on HVAC systems:
