PLC control Waste Oil burner for asphalt plant
- 20 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T Credit Card
- BST Low Nitrogen Burner Electric Eye Flame Detector KLC1000/230
- BST flame detector KLC1000/230
- BST solutions KLC20/230 611120110105 flame detector
- BST 611185031000IFC50/230 flame detector
- KLC1000/230Rs flame detector BST flame detection KLC20/230 low nitrogen combustion machine electric eye
- Siemens Burner Controls box RMO503SE RMO503SE/K2 RMG508SE RMG508SE/GB RMG509SE RMG509SE/K Microcontroller-based burner controls
Product Details
Place of Origin: | Henan, China | Brand Name: | ZOOMLINE | Model Number: | ZRS |
Type: | Oil Burner |
Product Description

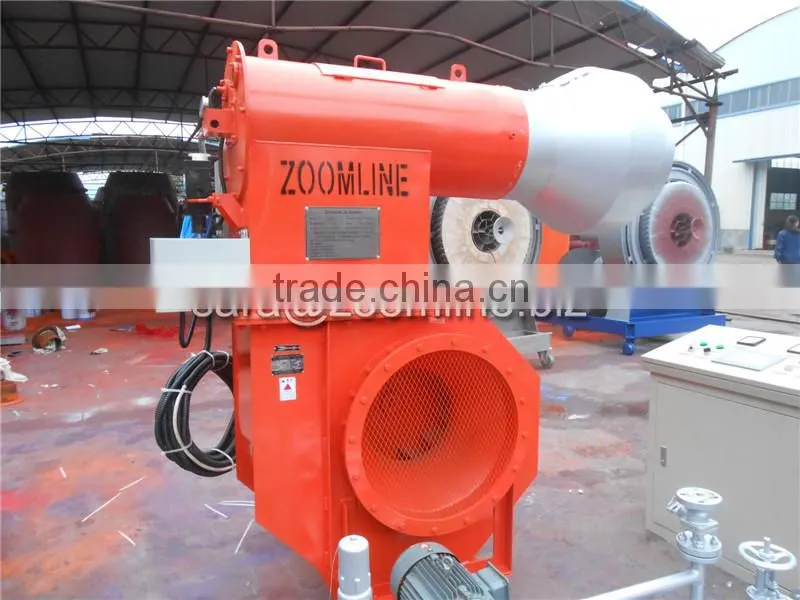

PLC control Oil burner for asphalt plant

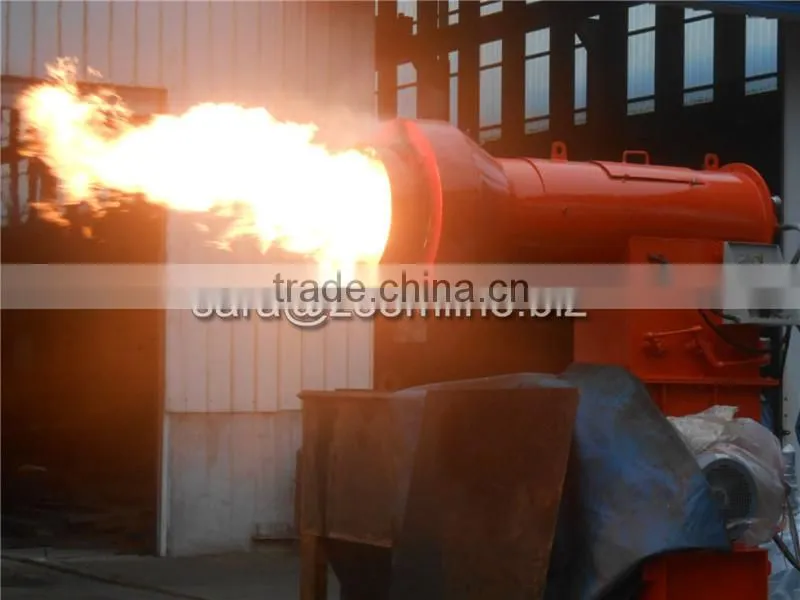

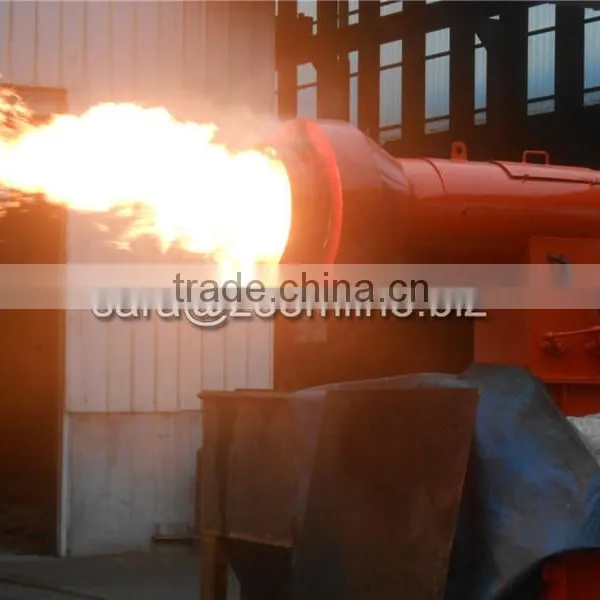

ZRS series light heavy oil burner is ignite the burning oil after is fully atomized by burning nozzle and keep sustained combustion.
ZRS series burner is specially designed according to the complex working condition of asphalt mixing plant, it has the features of uniform atomization, simple structure, few consumer goods and low operating cost.
Features of oil burner:
- Specially designed heavy(light) oil burner for asphalt mixing plant, with features of high effectivity, stable air volume control, energy and electricity saving.
- The fuel consumption is less than 6.5kg/t(finished product) under rated working condition.
- Simple structure, easy to operate, it has independent operation system.
- Can use heavy oil, light oil, has no need to change any component.
- Adopts international standard components, with low maintenance cost.
Advantages of oil burner:
1. ZRS series light oil and heavy oil burner is ignition after oil injection through burner nozzle when the burning oil fully atomized and keep burning.
2.ZRS series oil burner is specially designed on the basis of complex operation condition of asphalt mixing plant, with evenly atomized, simple structure, less loss and low operation cost.

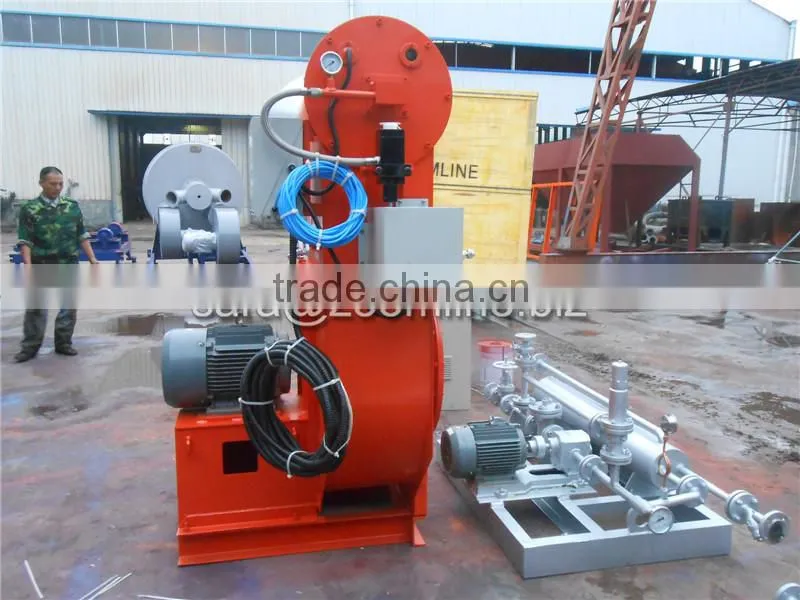

3.The oil burner adopt fissional structure design. That is the main machine, fan, pump group, valve group and control system separated. It features high output power, easy maintenance, using gas ignition, wide proportion to adjust(Generaly 1:4-1:6), with low demand of burning oil.
4.According to the practical use situation analysis, generally it maintain good atomizing and combustion when working pressure keep 2-2.5Mpa.

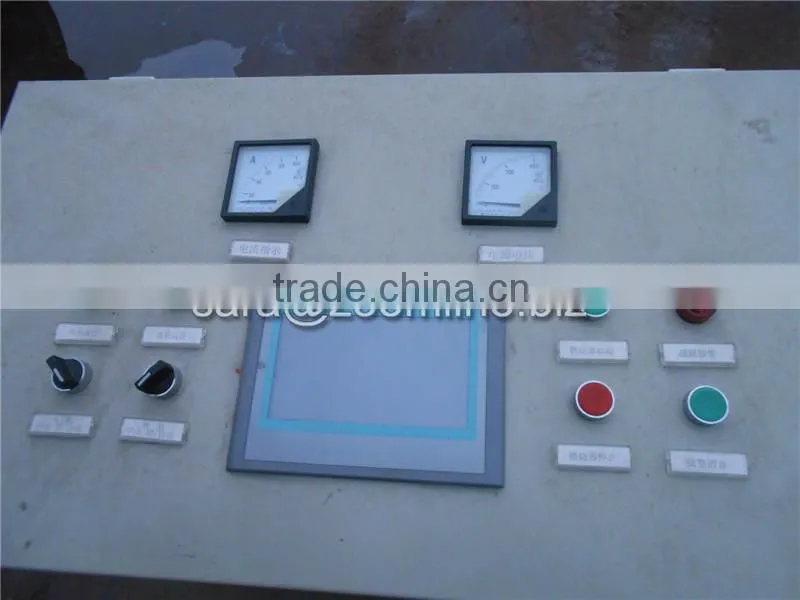

SIEMENS control system
ZRS Oil burner for asphalt mixing plant parameters:
Model | ZRS40 | ZRS80 | ZRS120 | ZRS160 | ZRS240 | ZRS320 | ZRS400 |
Fan motor | 7.5kw | 15kw | 22kw | 30kw | 37kw | 45kw | 55kw |
Oil pump motor | 3kw | 4kw | 4kw | 5.5kw | 7.5kw | 11kw | 11kw |
Oil consumption | 70-280kg/h | 140-560kg/h | 210-840kg/h | 280-1120kg/h | 280-1680kg/h | 374-2240kg/h | 470-2800kg/h |
operation | Manual/automatic | ||||||
regulating ratio | 1:4 | 1:4 | 1:4 | 1:4 | 1:6 | 1:6 | 1:6 |
Fuel | Diesel/Heavy oil | ||||||
Working pressure | Heavy oil: 20-25bar,diesel:16bar |
