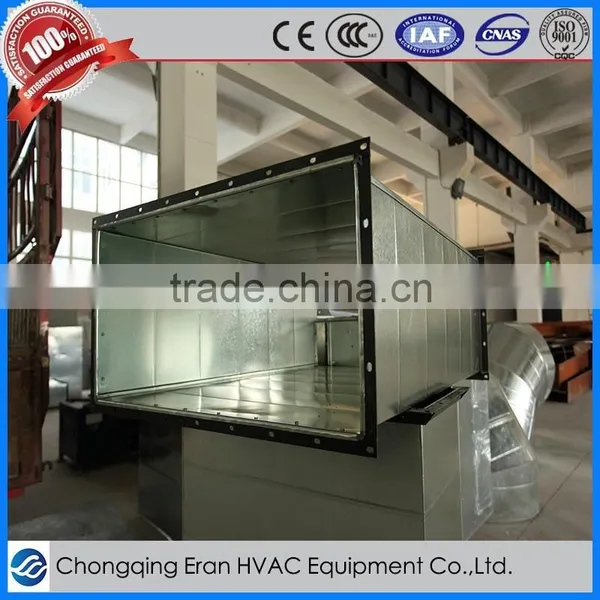

Rectangle Air Conditioning Duct with Flange
Description: Rectangle Air Conditioning Duct with Flange is made of galvanized steel sheet, and should be defined as one type of traditional air ducts. Because of its great tightness on connection, it is widely used in ventilation system, and still to be the most reliable type on duct at present.
Our company equips3sets of advancedproduction lines with numerical control, 3 sets of plasma cuttingmachines, 2 steel flange production lines and 3 modern paint spraying workshops, to guarantee the production efficiency and quality. The annual production capacity of such duct has been up to900,000 square meters.
Features:
(1) High quality on material, long service life
(2) The long side of duct is reinforced.
(3) Joint seaming.
(4) Flange connection by spring clip.
(5) High quality steel flange.
(6) Seal strip is used on the connector.
(7) Less air leakage, reduce energy consumption, save operating cost.
(8) Outgoing product should be semi-finished (L-type), which is easy to deliver and install.
(9) Flange to be finished, and easy to install.
Application:
Rectangle Air Conditioning Duct with Flange is mainly applied to air conditioning, ventilation, purification, smoke prevention and exhaustion system.
Advantage:
(1) Advanced mold equipment, professional design and assembly line operation make sure high quality and efficiency, save materials and reduce the investment on projects.
(2) Complete accessories production and distribution make it easier to install.
(3) Duct’s size and appearance can be customized according to customer request.
(4) OEM is available.
Specification:
Sheet Thickness
Length of Duct (mm) |
Thickness under 0-1500Pa |
Thickness under 1500Pa min |
320max |
0.5 |
0.75 |
320-630 |
0.6 |
0.75 |
630-1000 |
0.75 |
1.0 |
1000-1250 |
1.0 |
1.0 |
1250-2000 |
1.0 |
1.2 |
2000-4000 |
1.2 |
As required |
Flange Specification
Length of Duct (mm) |
Bolt |
Steel Flange |
630max |
M6 |
∠25×3 |
630-1500 |
M8 |
∠30×3 |
1500-2500 |
M8 |
∠40×4 |
2500-4000 |
M10 |
∠50×5 |
Note: Sheet thickness in smoke prevention and exhaustion adopt the standard under high pressure (1500 Pa min).
