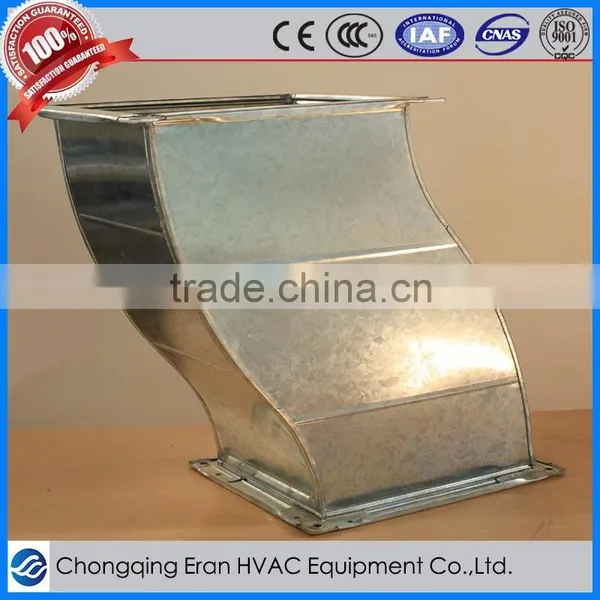

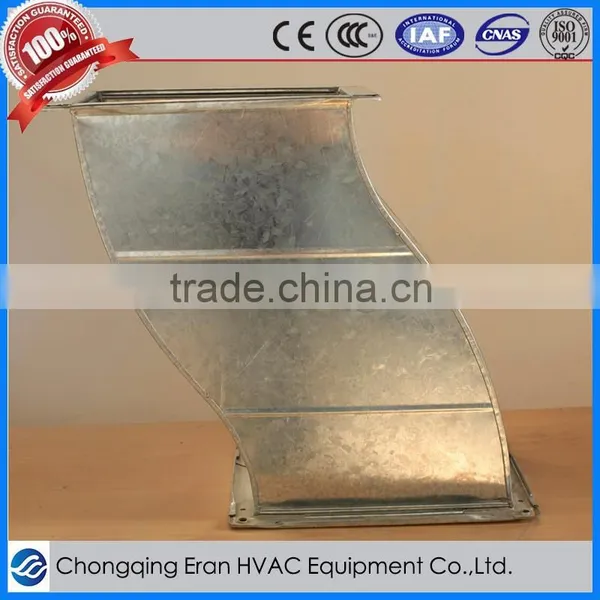

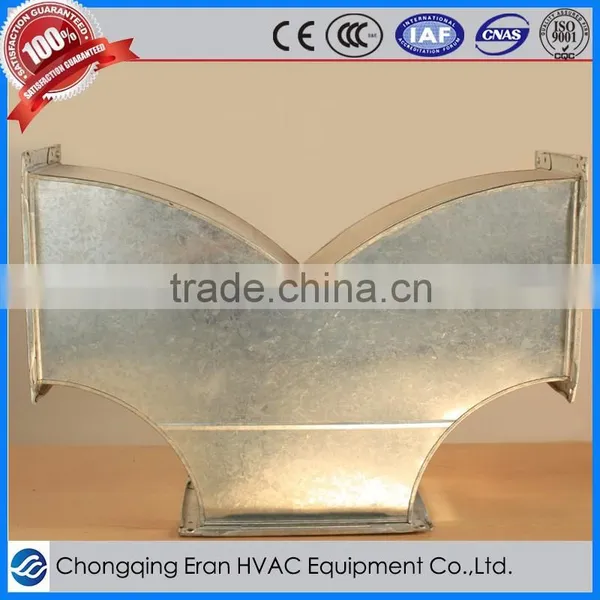

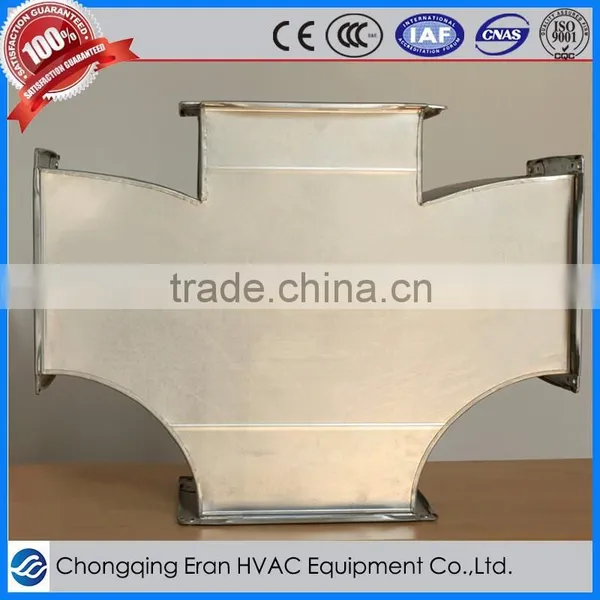

Galvanized Steel Rectangle Air Conditioning Duct For HVAC System TDF
Key words:air duct,hvac duct, air conditioning duct
Description: TDF air duct is made of galvanized steel sheet, directly molded and compressed integrally with the flange.
Since 1990s, United States and Europe developed countries began to use such fast flange process, and widely used in various projects. Our company equips three sets of advanced production lines with numerical control, and three sets of plasma cutting machine. The annual production capacity of rectangle air duct and special duct has been up to 1,200,000 square meters.
Specification:
Sheet Thickness
Length of Duct (mm) |
Thickness under 0-1500Pa |
Thickness under 1500Pa min |
320max |
0.5 |
0.75 |
320-630 |
0.6 |
0.75 |
630-1000 |
0.75 |
1.0 |
1000-1250 |
1.0 |
1.0 |
1250-2000 |
1.0 |
1.2 |
2000-4000 |
1.2 |
As required |
Features:
Joint seaming.
Flange connection by spring clip.
Seal strip is used on the connector.
High quality on material, long life
The long side of duct is reinforced.
Seal strip is used on the connector.
Less air leakage, reduce energy consumption, save operating cost.
Outgoing product should be semi-finished (L-type), which is easy to deliver and install.
Application:
It is mainly applied to low pressure systems such as air conditioning, ventilation, purification and high-pressure smoke exhaustion system. The long side size of the rectangle air duct should be no more than 2000mm.
Advantage:
1. Advanced mold equipment, professional design and assembly line operation make sure high quality and efficiency save materials and reduce the investment on projects.
2. Complete accessories production and distribution make it easier to install.
3. Duct’s size and appearance can be customized according to customer request.
4. OEM is available.
- Your inquiry and question will be replied within 24 hours.
- Professional foreign sales staff gives you best service.
- Our products include: ventilation fan, air duct, air valve, air vent, plenum chamber, muffler, soft connecter and accessories
- All our products will be provided with best quotation, excellent quality and prompt delivery.
- Sample is available by express.
- OEM is available.
Eran was established in 2005, whose plant covering an area of over 10,000 square meters. We are a professional enterprise and specialized in ventilation system products design, manufacture, sale and installation.
There are 3 set of advanced production lines with numerical control, advanced shearing, bending and stamping equipment, and precision plasma cutting & vent processing machine. By using of the advanced BIM technology and assembly line operation, Eran Equipment’s technological level and production capacity has arrived at the leading position of this industry. The company has passed ISO9001 Quality Management System, ISO14001 Environmental Management System and GB/T28001 Occupation Health Safety Management System.
Welcome to contact me for enquiry and latest information.
