TOPT-I type inside-illuminated photochemical reactor
Description of inside-illuminated photochemical reactor
TOPTION factory have got technical supports from many professors of SJTU and NTU in developing period. TOPT series is mainly applied to research gas / liquid phases, fixed / simulated visible light, could reaction vessel load TiO2, Photochemical reaction under conditions of photocatalyst and so on. This series can provides samples of analytical reacting product and free radical, and to measure reacting kinetic constant, quantum yield; it is widely used in fields of Chemosynthesis, environment protection, and life science, etc.

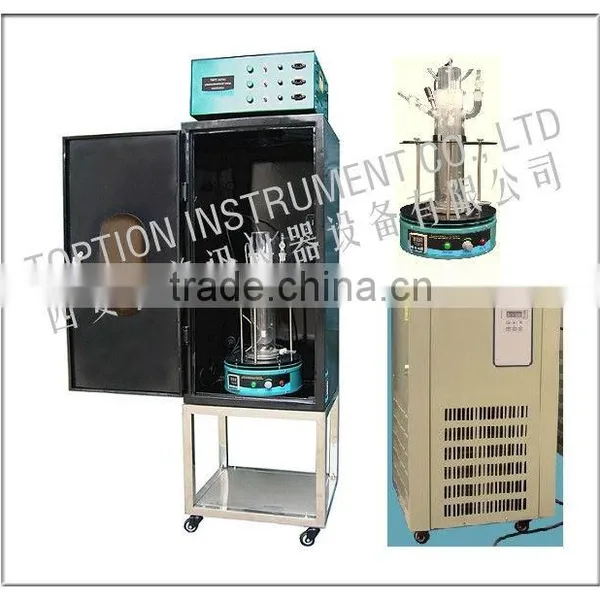

The main part of the Figure, including the main box, electrical control mercury lamp, xenon lamp electrical controllers, light, light source cooling to protect the cold trap,stirrer , glass reactor 250ml , 500ml ,1000ml (of course ,can customized all kinds of volumes). With wheeled cart.
Spectral distribution of medium pressure mercury lamp
Wavelength (nm) |
250 |
313 |
365 |
400 |
510 |
620 |
720 |
Relative intensity % |
20 |
85 |
100 |
30 |
20 |
40 |
80 |
Dimensions xenon lamps and optical parameters:
Power (W) |
Starting current(A) |
Operating Current (A) |
Operating Voltage (V) |
Effective arc length MM) |
Wiring |
100/300/500 |
8.3 |
18±3 |
50 |
220±20 |
Single-ended leads |
1000 |
12.4 |
30±3 |
60 |
220±20 |
Single-ended leads |
The drawing of the TOPT-I type inside-illuminated photochemical reactor
