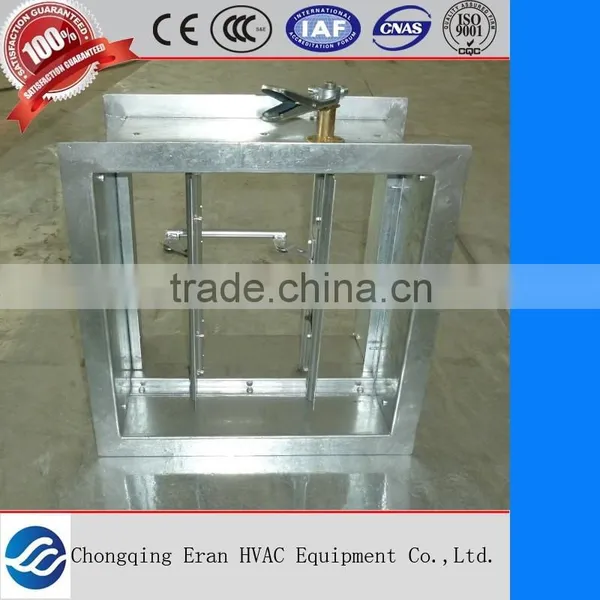

HVAC Motorized Air Duct Damper for Air Volume Control

Name: HVAC Motorized Air Duct Damper for Air Volume Control
Brand: ERAN
SKU: 112013427
Availability: InStock

US$ 10 - 100 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Chongqing, China

Brand Name:

ERAN

Model Number:

TDY

Chongqing Eran HVAC Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing; Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Chongqing, China

Brand Name ERAN

Model Number TDY

Type HVAC Systems

Motorized Air Duct Damper TDY for Air Volume Control

Product Description:

Apply in pipeline of air conditioning or ventilation system, which is used to adjust the air volume, also can adjust fresh air and return air.

Application:

Apply in pipeline of ventilation system.

Features:

Using galvanized steel as material to make sure good insulation performance, fire & corrosion resistance.
Duration, long service life.
Easy installation.
The flange is bended directly by the frame.
The valve size and color can be customized according to customer's requirements.

Advantages:

Excellent quality control processes, all products have been inspected strictly.
The quality of products has reached the standard of “Code of acceptance for construction quality of ventilation and air conditioning works" (GB50243-2002) and "Fire dampers for building venting and smoke-venting system" (GB15930 2007).
Complete accessories production and distribution make it easier to install.

Specification:

Place of Origin: Chongqing, China (Mainland) Brand Name: Eran

NO.	NAME	SPECIFICATION
1	Flange width	Valve side length (MM)	Width (MM)
		A≤630	30
		630<A≤1500	30
		1500<A≤2500	30
		A>2500	30
2	Material	Adopt high quality galvanized steel, riveting by non-rivet method
3	Valve thickness	δ2.0MM high quality galvanized sheet
4	Blade shaft	Φ12 round steel
5	Shaft sleeve	Brass
6	Steel valve surface anticorrosive disposal	Pickling, phosphating then spraying.
7	Control mechanism classification	Manual operation
8	Action method	Manual
9	Reset method	Manual reset
10	Air leakage	In standard conditions, as the differential pressure is 300 Pa, the air leakage is less than the national standards.
