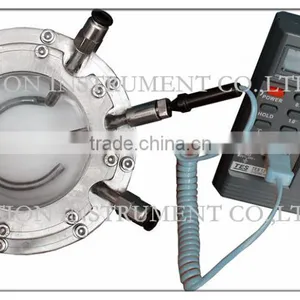

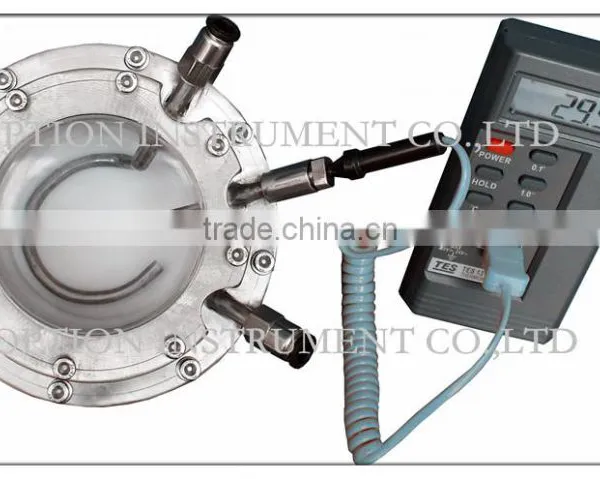

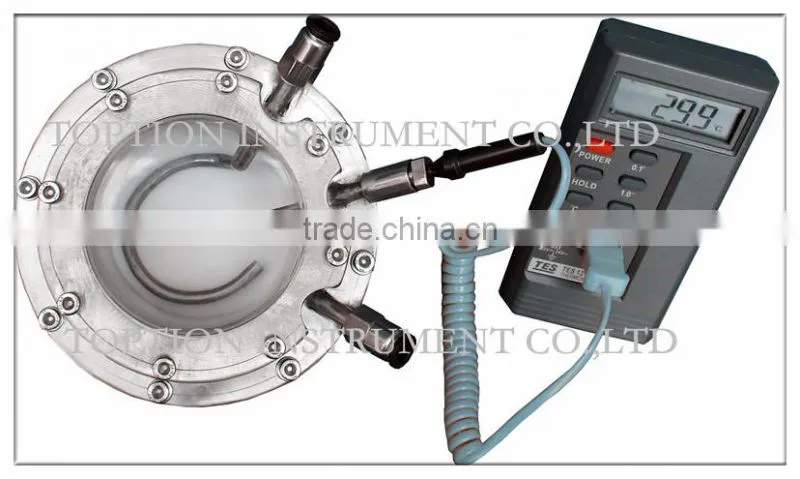

High pressure Photochemical reaction apparatus
With the in-depth study of photochemical reaction, high pressure sealing type photocatalytic reaction is increasingly favored by the majority of customers, the device is mainly composed of a stainless steel reaction vessel, PTFE sets, pressure quartz glass, filter etc.. Choice of overpressure release gas protection device to ensure the safe operation of ring. Design of the main photochemical, photocatalysis, light degradation, organic chemistry, phase, gas-liquid phase reaction gas, can also be used for the solid-liquid phase, gas phase reaction, can realize the full reaction gas and material, the maximum voltage of 2.0MPA, can also be customized more high pressure reactor, the system has reasonable structure, simple technology, convenient operation, stable operation, the protection of human, free combination, the unique advantages such as flexible change. (the TOPTION factory exclusive data did not authorize any domestic manufacturers use, described are the plagiarism, please respect the intellectual property rights)
Technical data:
|
High pressure Photochemical reaction apparatus |
|||
Model |
TPR-S150 |
TPR-S300 |
TPR-S500 |
TPR-S1000 |
Irradiation diameter |
80MM |
80MM |
80MM |
100MM |
Pressure light window |
Intron |
Intron |
Intron |
Intron |
The main material of the reaction vessel(optional) |
Stainless steel 316L/ pure titanium / Hastelloy alloy material |
Stainless steel 316L/ pure titanium / Hastelloy alloy material |
Stainless steel 316L/ pure titanium / Hastelloy alloy material |
Stainless steel 316L/ pure titanium / Hastelloy alloy material |
Single corrosion PTFE inner capacity |
150ML |
300ML |
500ML |
1000ML |
Jacket type corrosion resistant PTFE inner capacity (optional) |
150ML |
300ML |
500ML |
1000ML |
Design pressure (optional) |
2KG/5KG/10KG/20KG |
2KG/5KG/10KG/20KG |
2KG/5KG/10KG/20KG |
2KG/5KG/10KG/ |
