CHEERLINK HDMI Extender Supported 1080P HDMI V1.3 Single Cat5e/6 Wall Plate POE Extender Set With Transmitter and Receiver
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
CHEERLINK
Model Number:
DX
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CHEERLINK HDMI KVM Extender / Transmitter & Receiver Set - BlackNegotiableMOQ: 50 Pieces -
CHEERLINK A HDMI KVM Extender / Transmitter & Receiver Set Include One Transmitter and One Receiver- BlackNegotiableMOQ: 100 Pieces
-
CHEERLINK HDMI Extender Supported HD 1080P 3D HDMI Extender Set w/ CAT 5 / 6 - SilverNegotiableMOQ: 100 Pieces
-
HDMI KVM Extender / Transmitter & ReceiverNegotiableMOQ: 100 Pieces
-
CHEERLINK 24.3cm Female to Male HDMI Extender / Repeater Supports for the 4K x 2K Resolution DevicesNegotiableMOQ: 3000 Pieces
Brand Name
CHEERLINK
Model Number
DX
Place of Origin
Guangdong, China
Product Description
Single Cat5e/6 Wall Plate Extender includes transmitter and receiver. Transmitters combine HDMI video, audio and control signals, then transmit them through single Cat5e cable. Receivers get these signals, separate signals and rebuild video, audio and control ones, output through HDMI interfaces. It also supports bi-direction remote (RX->TX and TX->RX), power over UTP, EDID call back, and both input and output are HDCP 1.2 compatible. This product can achieve all functions through single Cat5e cable. Extending distance is 50 meters for 1080p 60Hz HD signal.
| General | |
|---|---|
| Brand | CHEERLINK |
| Model | N/A |
| Material | ABS + electronic components |
| Color | White |
| Quantity | 1Piece |
| Other Features | |
| Cable Length | 154cm |
| Connector | DC/IR , RJ45 , Cat 6 , Cat 5e , HDMI |
| Plug Specifications | US Plug (2-Flat-Pin Plug) |

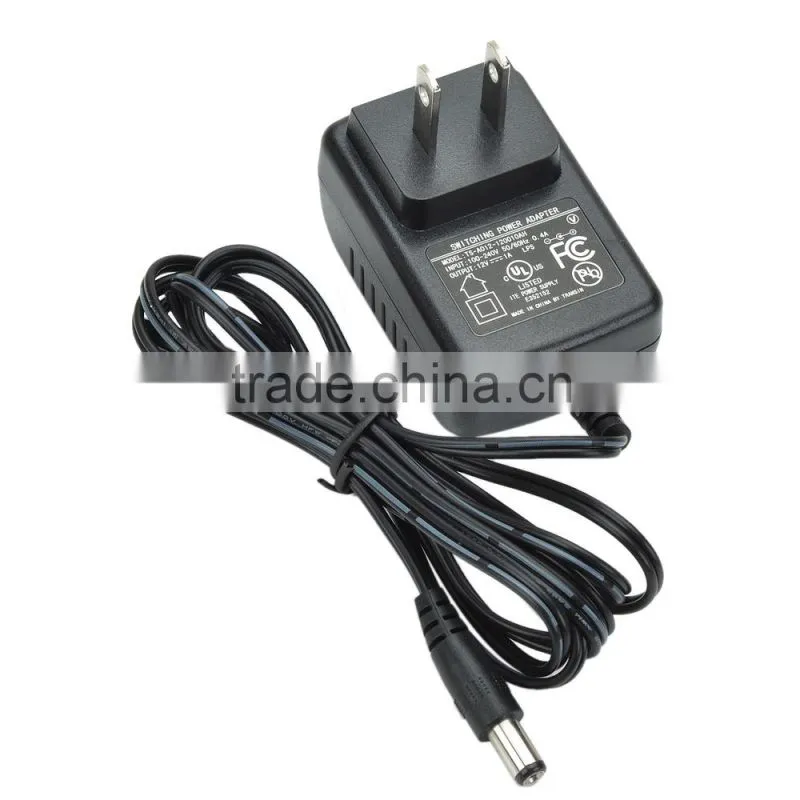

| Power Supply | Input : 100V - 240V ~ 0.4A 50/60Hz Output : 12V-1A |
| Certification | CE FCC RoHS |

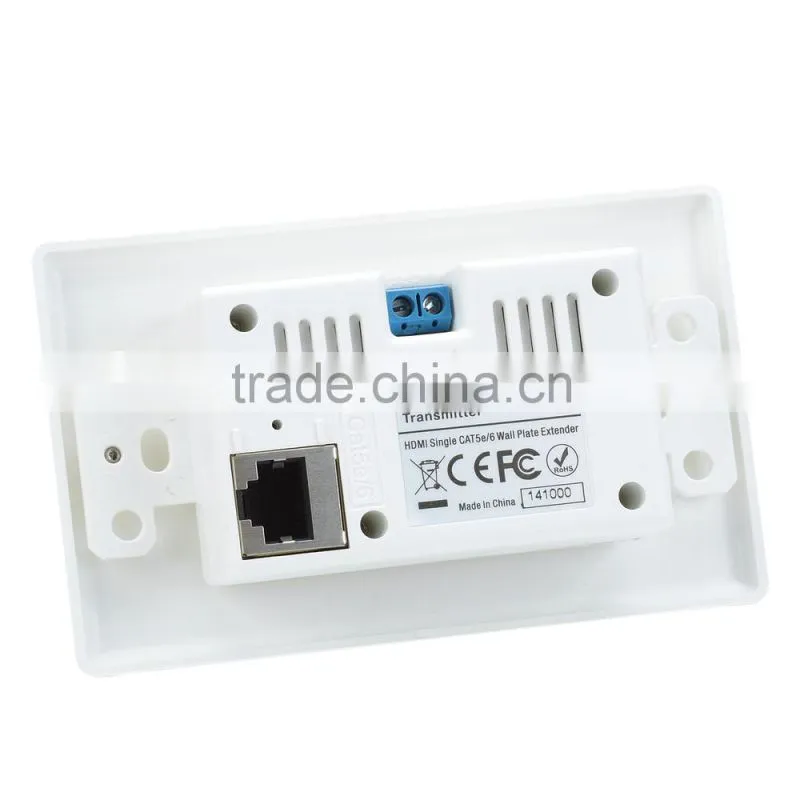

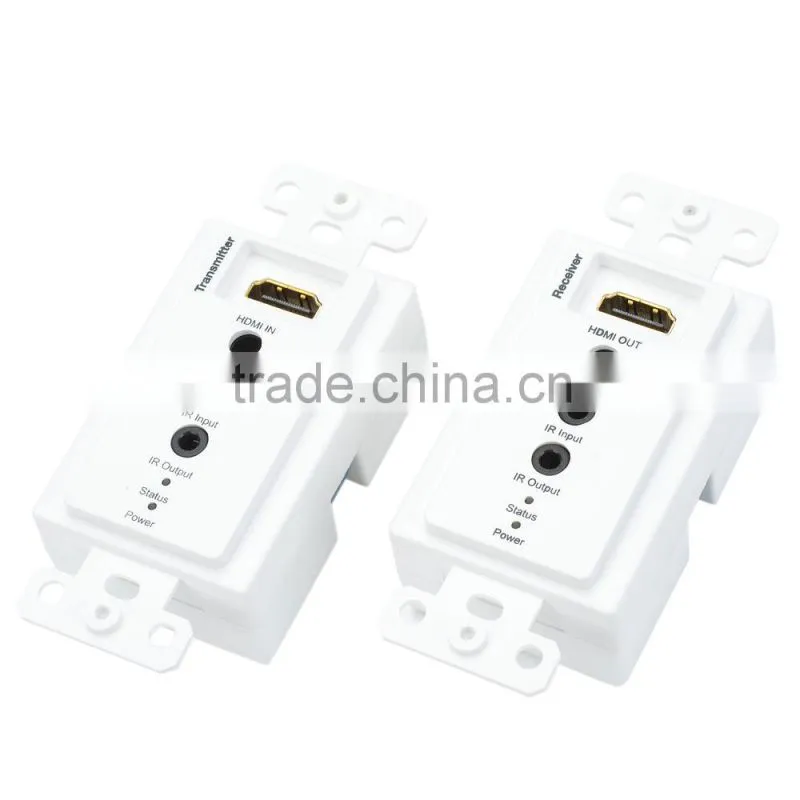

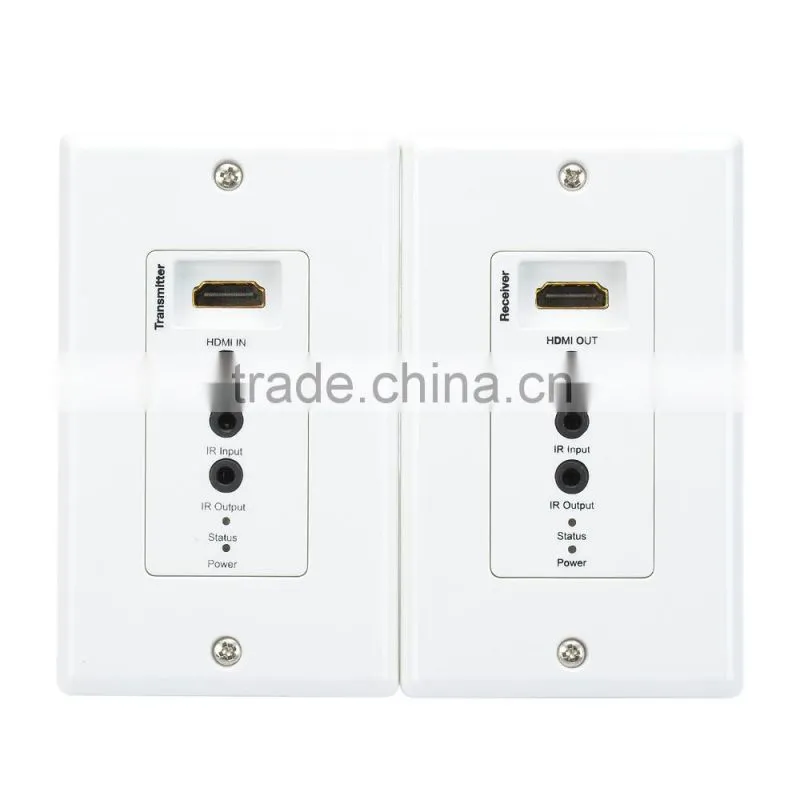

| Other Features | - Supports audio formats, Dolby True HD, DTS-master, etc. - Supports 3D signals (all 7 formats), such as Frame Packing, Side-by-Side, Top-to-Bottom, etc. - Supports EDID call back. - Supports CEC pass through. - VESA DDC and hot swap technology (HPD). - Supports power over UTP cable, single 12V DC power supply from any side of TX or RX. - Bi-direction remote IR (RX->TX and TX->RX). - Both HDMI input and output are compatible with HDCP 1.2. - Be compatible with DVI 1.0. - Supports cascade to enhance extending distance. - Interface: Transmitter: HDMI input, IR output (3.5mm), IR input (3.5mm), RJ45 Ethernet interface,12V DC in; Receiver: HDMI output, IR output (3.5mm), IR input (3.5mm), RJ45 Ethernet interface,12V DC in. - Power: <3.1W TX or <2.5W RX - Video bandwidth: Maximum TMDS clock frequency 165MHz, 4.95 Gbps - Resolution and distance: 1080p 170ft (50 meters) cat5e/270ft (80 meters) cat6 720p/1080i 270ft (80 meters) cat5e/330ft (100 meters) - cat6 - Audio formats: 8-channel supports Dolby True HD, DTS-master - TMDS input signal: 1.2 volts (point to point) - DDC input signal: 5 volts (point to point) - Indicator: Power-green, video link-yellow - HDMI interface: HDMI 1.3 standard (HDMI 1.4 3D function), HDCP1.2, support CEC:EDID - Remote IR: 38 KHz (Model A) or 20-60 KHz (Model B) - ESD level: HBM ± 8 kV (Contact Discharge) - Temperature range: 0 ~ 40 Celsius(operation), -20~60 Celsius (stock) |
| Dimensions & Weight | |
|---|---|
| Dimensions | 4.25 in x 1.77 in x 1.26 in (10.8 cm x 4.5 cm x 3.2 cm) |
| Weight | 2.04 oz (57.8 g) |
| Packing List |
|---|

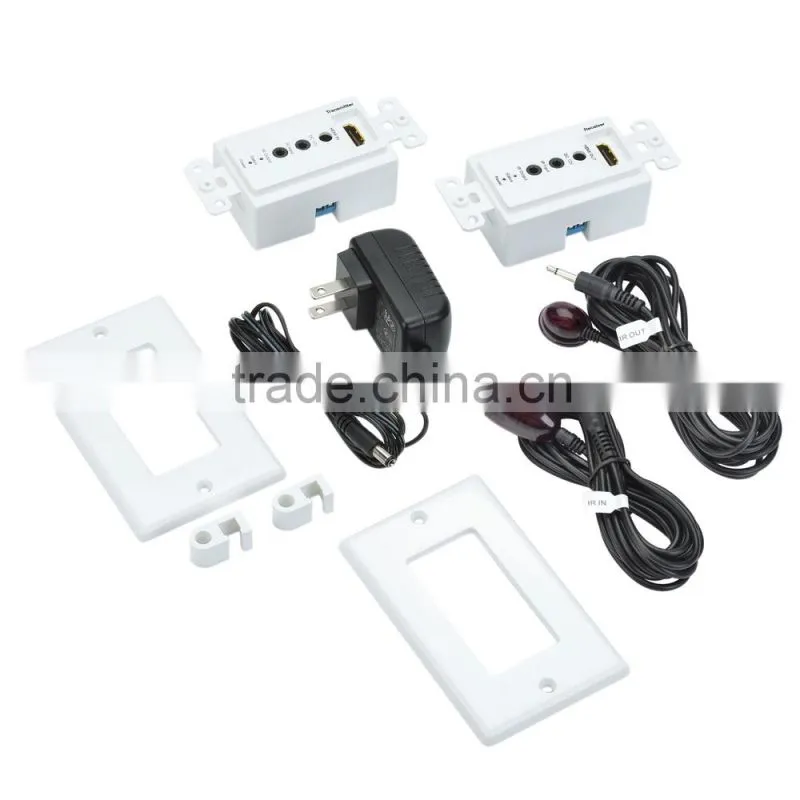

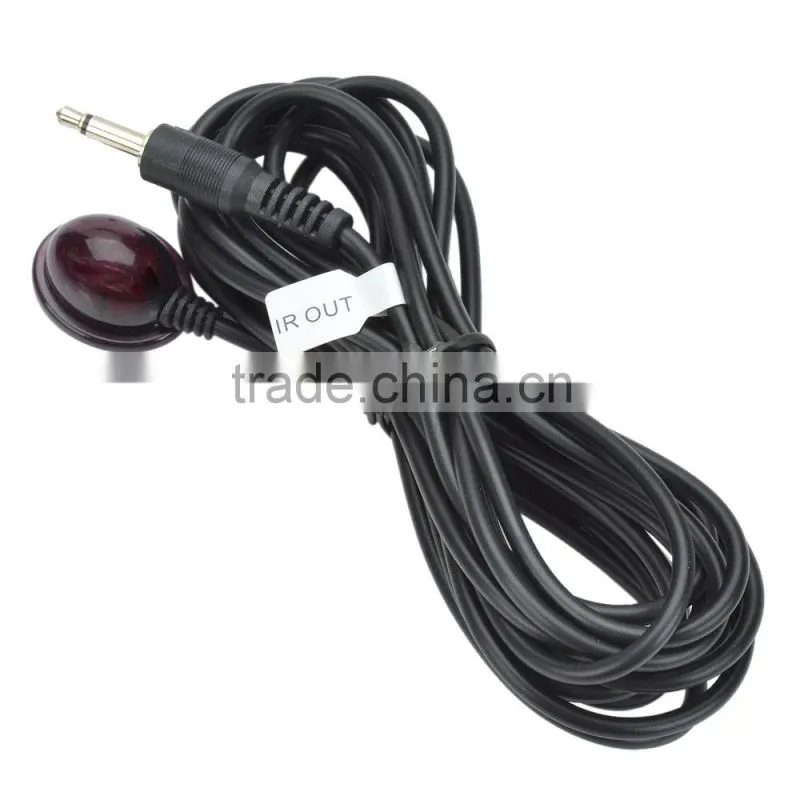

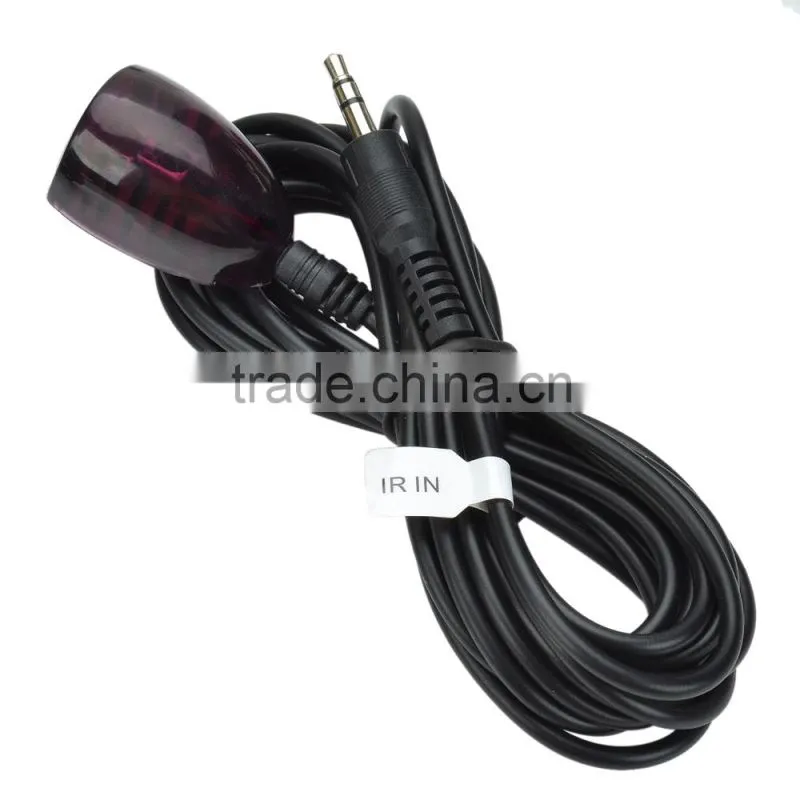

| 1 x TX 1 x RX 2 x Remote IR blasters (300cm) 2 x Remote IR Receivers (300cm) 2 x Frames 2 x Conical screws 4 x Cylindrical screws 2 x Plastic retaining clips 1 x Power adapter (2-flat-pin plug Input : 100V - 240V ~ 0.4A 50/60Hz, Output : 12V-1A) 1 x English user manual |
