24v Smoke Fire Rotary Air Damper Actuator
- 1000 Set / Sets per Month
- Chongqing or Shanghai
- T/T Credit Card
- Vibration Absorber, Eliminator Shock Absorber, refrigeration part, air conditioner part
- AC motor start capacitor, compressor capacitor, refrigeration capacitor
- Quick coupler QC-LM QC-HM, refrigeration part
- Quick coupler QC-L QC-H, refrigeration part
- Quick coupler QC-15AL QC-15AH, refrigeration part
- Quick coupler QC-12L QC-12H, refrigeration part QC-12L/H
Product Details
Place of Origin: | Chongqing, China | Brand Name: | ERAN | Model Number: | PFHY-280B |
Type: | HVAC Systems |
Product Description

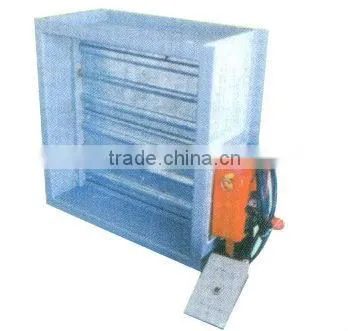

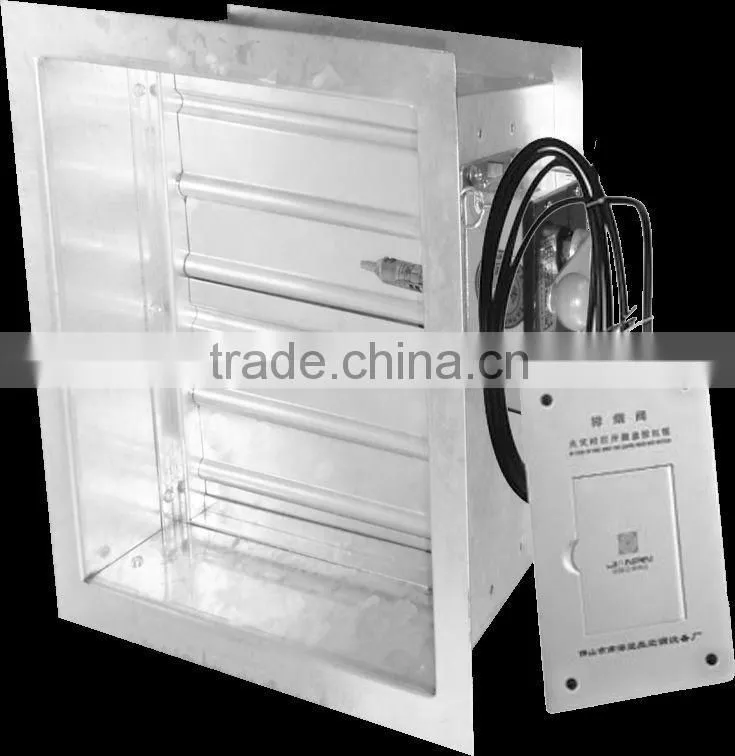

24v Smoke Fire Rotary Air Damper Actuator
Model:PFHY-280B/ AXB
Product Description:
Usually 24v Smoke Fire Rotary Air Damper Actuator is closed. When the fire occurs, the valve is opened quickly to exhaust smoke by the output of DC24V power. It will automatically shut down, when the temperature of gas in the pipeline reaches at 280 degree. Remote control is applied (the steel rope is no more than 6m). The output signal of opening valve can interlock with other equipments.
Application:
24v Smoke Fire Rotary Air Damper Actuator is applied in the pipeline of smoke exhaust system.
Features:
l Using galvanized steel as material to make sure good insulation performance, fire & corrosion resistance.
l Duration, long service life.
l Easy installation.
l The flange is bended directly by the frame.
l The valve size and color can be customized according to customer's requirements.
l Remote control(Steel rope is not more than 6 M)
l Output open valve signals, can connect with other equipment
Advantages:
l Excellent quality control processes, all products have been inspected strictly.
l The quality of products has reached the standard of “Code of acceptance for construction quality of ventilation and air conditioning works" (GB50243-2002) and "Fire dampers for building venting and smoke-venting system" (GB15930 2007).
l Complete accessories production and distribution make it easier to install.
Specification:
Place of Origin: Chongqing, China (Mainland) Brand Name: Eran
NO. | NAME | SPECIFICATION | |
1 | Flange width | Valve side length (MM) | Width (MM) |
A≤630 | 30 | ||
630<A≤1500 | 30 | ||
1500<A≤2500 | 30 | ||
A>2500 | 30 | ||
2 | Material | Adopt high quality galvanized steel, riveting by non-rivet method | |
3 | Valve thickness | δ2.0MM high quality galvanized sheet | |
4 | Blade shaft | Φ12 round steel | |
5 | Shaft sleeve | Brass | |
6 | Steel valve surface anticorrosive disposal | Pickling, phosphating then spraying.
| |
7 | Temperature- fuse protector | 280degrees | |
8 | Control mechanism classification | Manual on and off device, temperature control, air regulation, output signal | |
9 | Nominal voltage | DC24V | |
10 | Micro switch | Contact capacity 380V 3A | |
11 | Connection port | Contact rating 500V 3A | |
12 | Action method | Output DC24v to quickly open the valve. At 280 degrees, temperature-fuse protector motion, the valve under the spring pulled shut automatically. | |
13 | Reset method | Manual reset | |
14 | Air leakage | In standard conditions, as the differential pressure is 300 Pa, the air leakage is less than the national standards. |
Our company:
Eran was established in 2005, whose plant covering an area of over 10,000 square meters. We are a professional enterprise and specialized in ventilation system products design, manufacture, sale and installation.
There are 3 set of advanced production lines with numerical control, advanced shearing, bending and stamping equipment, and precision plasma cutting & vent processing machine. By using of the advanced BIM technology and assembly line operation, Eran Equipment’s technological level and production capacity has arrived at the leading position of this industry. The company has passed ISO9001 Quality Management System, ISO14001 Environmental Management System and GB/T28001 Occupation Health Safety Management System.
