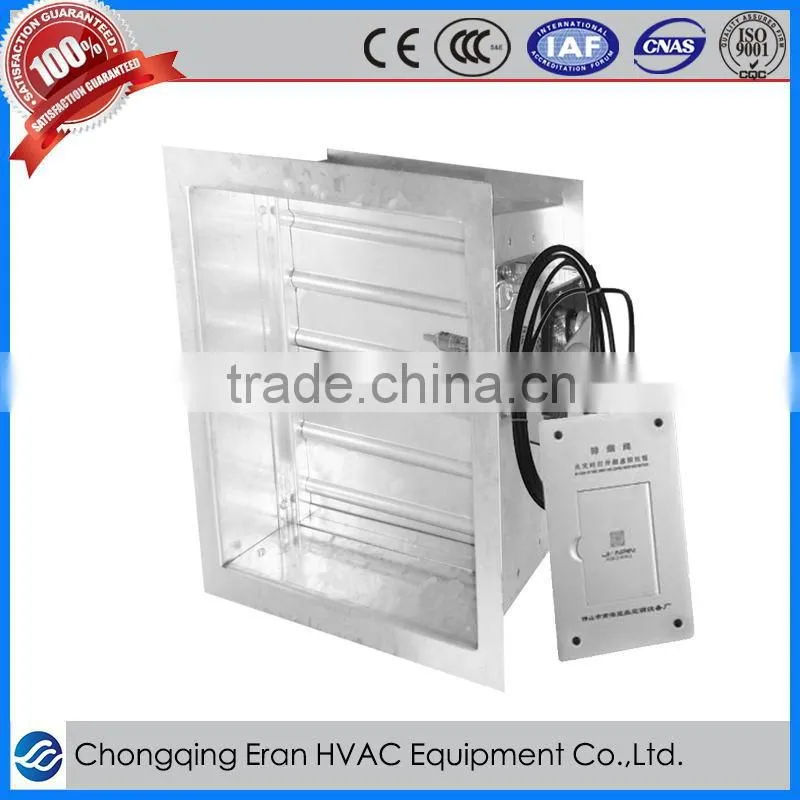

Air conditioner damper vibration damper
Key words:vibration, damper,air
Usually it is closed. When the fire occurs, the valve is opened quickly to exhaust smoke by the output of DC24V power. It will automatically shut down, when the temperature of gas in the pipeline reaches at 280 degree. Remote control is applied (the steel rope is no more than 6m). The output signal of opening valve can interlock with other equipments.
Application of Air conditioner damper vibration damper:
Applied in the pipeline of smoke exhaust system.
Features of Air conditioner damper vibration damper:
(1) Using galvanized steel as material to make sure good insulation performance, fire & corrosion resistance.
(2) Duration, long service life.
3) Easy installation.
(4) The flange is bended directly by the frame.
(5) The valve size and color can be customized according to customer's requirements.
(6) Remote control(Steel rope is not more than 6 M)
(7) Output open valve signals, can connect with other equipment
Advantages of Air conditioner damper vibration damper:
- Excellent quality control processes, all products have been inspected strictly.
- The quality of products has reached the standard of “Code of acceptance for construction quality of ventilation and air conditioning works" (GB50243-2002) and "Fire dampers for building venting and smoke-venting system" (GB15930 2007).
- Complete accessories production and distribution make it easier to install.
Specification of Air conditioner damper vibration damper:
Place of Origin: Chongqing, China (Mainland) Brand Name: ERAN
NO. |
NAME |
SPECIFICATION |
|
1 |
Flange width |
Valve side length (MM) |
Width (MM) |
A≤630 |
30 |
||
630<A≤1500 |
30 |
||
1500<A≤2500 |
30 |
||
A>2500 |
30 |
||
2 |
Material |
Adopt high quality galvanized steel, riveting by non-rivet method |
|
3 |
Valve thickness |
δ2.0MM high quality galvanized sheet |
|
4 |
Blade shaft |
Φ12 round steel |
|
5 |
Shaft sleeve |
Brass |
|
6 |
Steel valve surface anticorrosive disposal |
Pickling, phosphating then spraying |
|
7 |
Temperature- fuse protector |
70 degrees |
|
8 |
Control mechanism classification |
Manual on and off device, temperature control |
|
9 |
Micro switch |
Contact capacity 380V 3A |
|
10 |
Connection port |
Contact rating 500V 3A |
|
11 |
Action method |
Temperature-fuse protector functions at 70 degrees, the valve shut down automatically under the pull of spring. |
|
12 |
Reset method |
Manual reset |
|
13 |
Air leakage |
In standard conditions, as the differential pressure is 300 Pa, the air leakage is less than the national standards. |
|
