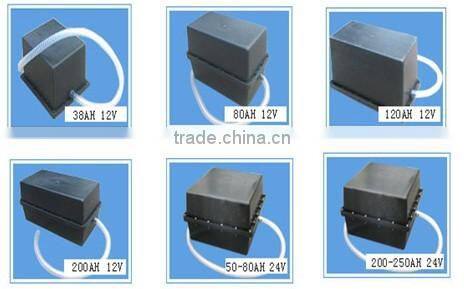

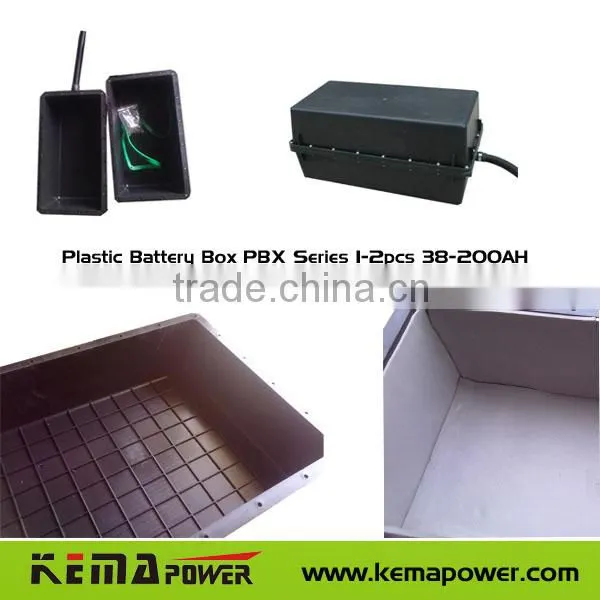

Plastic Battery Box PBX Series 1-2pcs 38-200AH
key features:
1. Modified strengthen plastics
2. Waterproof, resist compression, breathe freely
3. Heat preservation,
4. Resistant to corrosion
5. 38AH--200AH/12VDC, 50-240AH/24VDC
6. Be applicable to install outdoor under groundin
PBX SERIES , PLASTIC BAT BOX, TO FIT FOR UNDER GROUND INSTALLATION | |||||||
Mode |
Inside Size mm |
Outside Size mm |
Battery PCS |
Battery Mode |
PCS/CTN |
KG/CTN (G/W) |
CTN SIZE M |

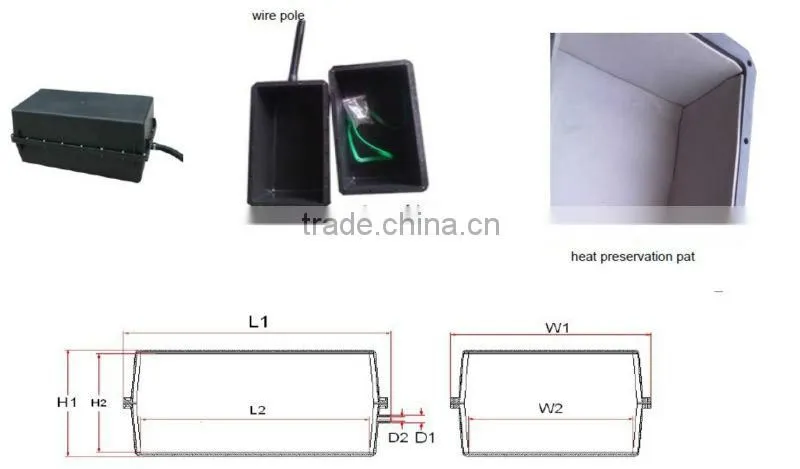

L2*W2*H2 |
L1*W1*H1 |
||||||
PBX38 |
215×185×185 |
280×230×210 |
1 |
38AH/12VDC |
10 |
10.5 |
0.55*0.55*0.25 |
PBX55 |
235×180×240 |
305×245×260 |
1 |
55ah/12vdc |
10 |
11 |
0.56*0.50*0.31 |
PBX80 |
360×180×260 |
430×240×280 |
1 |
65-80AH/12VDC |
8 |
16.5 |
0.82*0.44*0.25 |
PBX120 |
420×195×245 |
490×255×260 |
1 |
120AH/12VDC |
5 |
12.5 |
0.55*0.49*0.27 |
PBX150 |
495×185×260 |
565×245×275 |
1 |
150AH/12VDC |
5 |
15 |
0.58*0.45*0.55 |
PBX250 |
540×275×260 |
620×335×275 |
1 |
250AH/12VDC |
5 |
16.5 |
0.61*0.59*0.61 |
PBX55-24 |
290×260×240 |
360×315×255 |
2 |
55AH/12VDC |
10 |
14 |
0.63*0.37*0.49 |
PBX80-24V |
360×355×240 |
430×420×255 |
2 |
65-80AH/12VDC |
5 |
15 |
0.54*0.43*0.43 |
PBX120-24 |
420×370×245 |
495×430×260 |
2 |
100-120AH/12VDC |
5 |
16 |
0.57*0.50*0.43 |
PBX150-24 |
495×365×260 |
575×430×285 |
2 |
150AH/12VDC |
5 |
20.5 |
0.57*0.55*0.43 |
PBX200-24V |
540×540×260 |
620×620×280 |
2 |
200AH/12VDC |
4 |
24 |
0.61*0.45*0.61 |
PBX250-24V |
815×815×370 |
880×880×430 |
2 |
250AH/12VDC |
1 |
11 |
N/A |
REMARK |
Optional,heat preservation pat |
||||||
