GIGA LX Sunwheel feeder Flexo Flute cartons machinery

Specifications

1.Touch-screen/electric dual system
2.Flute cartons machinery got CE
4.CNC adjusting difference

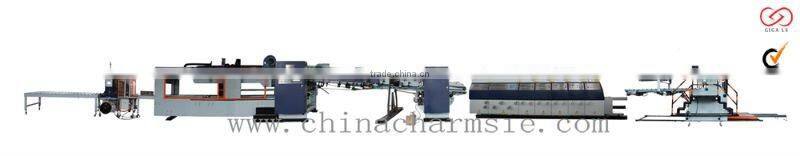

LX307  Flexo Printing Slotting and Automatic Die Cutting Machine

Got CE certification

Flute cartons machinery Main Functions:

1. Lx307Suitable for middling and Small scale carton factory. All transmission gears are made of high quality alloy steel (20CrMnTi) grinded under high temperature with hardness HRC58-62 lx307
2. Back-pushing suck blower feeding system
3. CAPT-LOCKS union link to reduce the connect interval and keep long lasting overprint precision
4. Functions of intelligent zero returning and memory reset, Memory order 999 is for option.
5. Lx307Touch screen and electric control dual system.High quality materials and fittings.
6. The transmission system adopts two oil pumps circulating lubrication

Feeding Unit.

(Servo Control Lead edge feeder is for option)LX308





Continuous or skip feeding, with counter device, Feeding guide rail use linear bearing to make smooth feeding, Synchronous working of automatic feeding and anilox roller to reduce waste, Equipped with dust suck removing machine,

Printing Unit

1. Forme changing both foot switch, and/or electric control (forward / backward run), Anilox roller auto lifting device synchronous working with paper feeding system
2. Forme roller and pressure roller are made of high quality steel, with grinded and chrome plated surface, lx307Dynamic and static balancing make steadily running, Hanging forme, make installation easy and quick, Planetary gear phasing structure
3. Printing phase automatic 360 degree adjust by PLC, touch screen and motorized digital control.
4. Forme roller intelligent zero returning, short cut resetting under dynamic and static condition

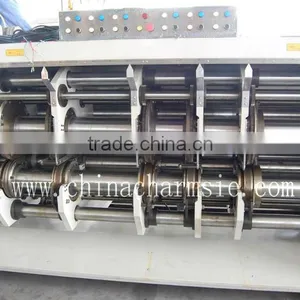

Slotting Unit

1.  Pre-scoring wheel: Pre-scored paperboard will not crush
2. Upper scoring wheel coated by polyurethane to avoid possible crush on the paperboard
3. 7 mm thick slotting knives are made of alloy tool steel by heat treatment and finely ground, sharpened endurable teeth
4. Bi-plate trimming knives with sharpened, endurable teeth
5. Aluminium hand hole punch device

 Die cutting machine unit

1. Unique speed difference compensation device makes the anvil roller slide together with mould roller so that the surface speed of anvil roller complies with it of the mould roller, to make a perfect.CNC adjusting difference system for rotary die cutting machine, which is for  option.













• Mould roller and anvil roller can be apart by the air cylinder eccentric mechanism prolong the life of the cutting mould and urethane rubber
• Machine for make boxs cardboard anvil roller and mould roller adopts high-grade steel with finely reground and chrome plated surface.

Stacking Unit

1. Connection arm has manual and automatic operation methods
2. Tension of the driving belt of connection arm can be adjusted alone; Stacking height: 1600 mm, Anti slipping belt used in the transport bed.
3. Platform elevation and transmission motor has braking function, Carton Box Making Machine Prices are goods.
4. A pneumatic controlled plate will pop-up to hold the coming substrate when the pre-set height reached

*Subject to change and improvement without notice,
