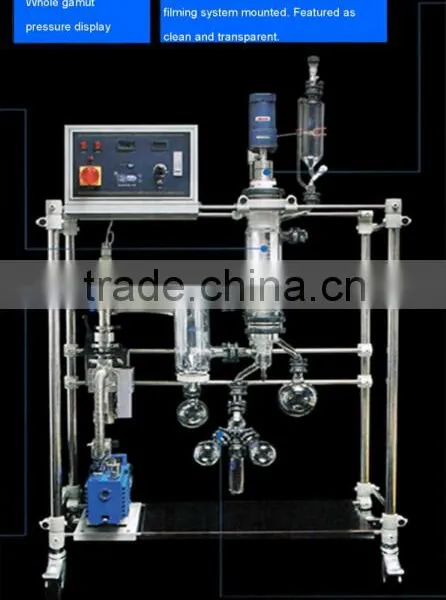

Lab vacuum high efficient Molecular Distiller(SPD) DWF70-5

Lab vacuum high efficient  Molecular Distiller(SPD)

Intruduction of   Lab vacuum high efficient  Molecular Distiller(SPD)

——Design of   Lab vacuum high efficient  Molecular Distiller(SPD)

Different from the traditional wiped film evaporator design, the condenser is located inside the short path evaporator body.

——Operation of  Lab vacuum high efficient  Molecular Distiller(SPD)

Feed liquid is admitted into still under high vacuum, immediately spread into a very thin film and forced quickly down the evaporation surface. Heated walls and high vacuum drive the more volatile components (distillate) to the external condenser as the less volatile components (residue) continue down the cylinder. The resulting fractions, thus separated, exit through individual discharge outlets. Depending on application, the desired product is either the distillate or the residue fraction. Small amounts of condensable low MW compounds collect in cold trap upstream of vacuum system. For high solvent loads, an optional external condenser may be installed immediately downstream of the still.

——Particular features of   Lab vacuum high efficient  Molecular Distiller(SPD)

Continuous distillation process.
Very low operating pressures up to 0.1Pa (100Pa=1mba). (The considerably lower pressure in the short path evaporator is obtained by the short distance for the vapours on their way from the evaporator surface to the condenser. )
The very low operating pressures ensure very low distillation temperatures and therefore a very gentle distillation is possible.
Short residence time. (Thanks to the short residence time, the low evaporation temperature and the immediate cooling of the concentrate, thermal stress and decomposition of the product can be minimized.)
High evaporation rates.

——Fields of application of  Lab vacuum high efficient  Molecular Distiller(SPD)

For the thermal separation of high molecular and high-boiling products.
For heat sensitive materials.

The Technical Specification of  Lab vacuum high efficient  Molecular Distiller(SPD) :

The Ferature of  Lab vacuum high efficient  Molecular Distiller(SPD)

Company Information of Lab vacuum high efficient  Molecular Distiller(SPD) :

Lab vacuum high efficient  Molecular Distiller(SPD)

Lab vacuum high efficient  Molecular Distiller(SPD)

  Lab vacuum high efficient  Molecular Distiller(SPD)   Lab vacuum high efficient  Molecular Distiller(SPD)
Lab vacuum high efficient  Molecular Distiller(SPD)
