GIGA LX Fully Automatic Cardboard Single Facer

Specifications

Load-unload in groups
Vacuum adsorbable, Wind comtrol
Gimbal transmission single facer
48CrMo Electromotion adjusted

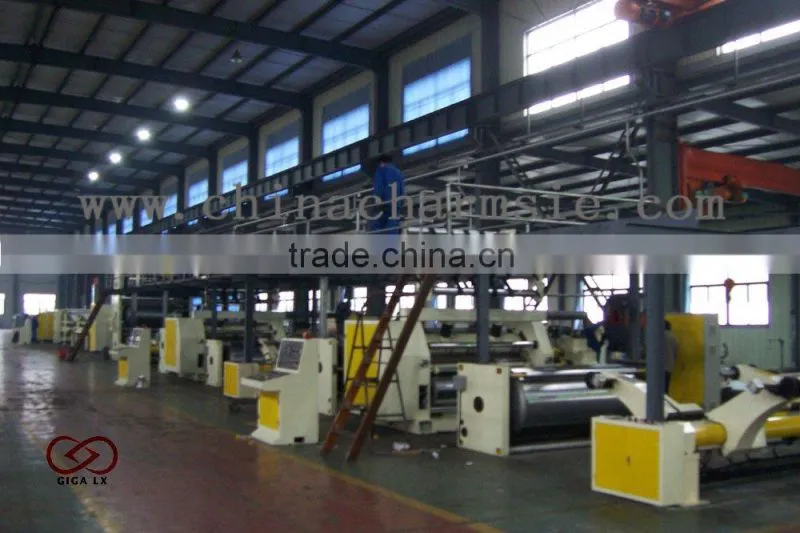

LXC-360S Single Facer ; Corrugated Cardboard Production Line

Cardboard Machine

Desigh Speed:120-200m/min

Expiry width:1400mm-2500mm



Flute profiles:A/C/B/E etc.available discretionarily lxc320s

     Vacuum adsorbable style transmitting cardboard equipment,with wind comtrol

     Uppr-lower corrugating roller seat and whole machine are designed separately,this can be changed hanging in groups,bridge with load-unload guideway,exchanging roller quickly

     Glue roller and upper roller are designed to groups guideway slippage load-unload, lxc320s convenient and swift.



    Gimbal transmissinon,fission structure with unattached drive box,transmission more stable,close style gear transmission oiliness lubricated,prolong the use life of gear.

    Single Facer the upper corrugating roller,lxc320s pressure roller and glue roller adopt pneumatic control.

     The axletree of corrugated and pressure roller adopts high temperature resistant lube.

     Adopt electomotion paste insulation set, the glue parts running separately while the main motor stopped,prevent paste from drying up,  carton machinery, laminating machine, corrugating machine, cardboard machine.

     Electromotion adjusted figure show the glue quantity or manual adjust the glue quantity.

     The upper-lower corrugating roller are made of 48Cr Mo high quality alloy steel,lxc320s after heat-treatmnt.  the rigidity is HRC56-60,the surface are whetted and plating chrome.
