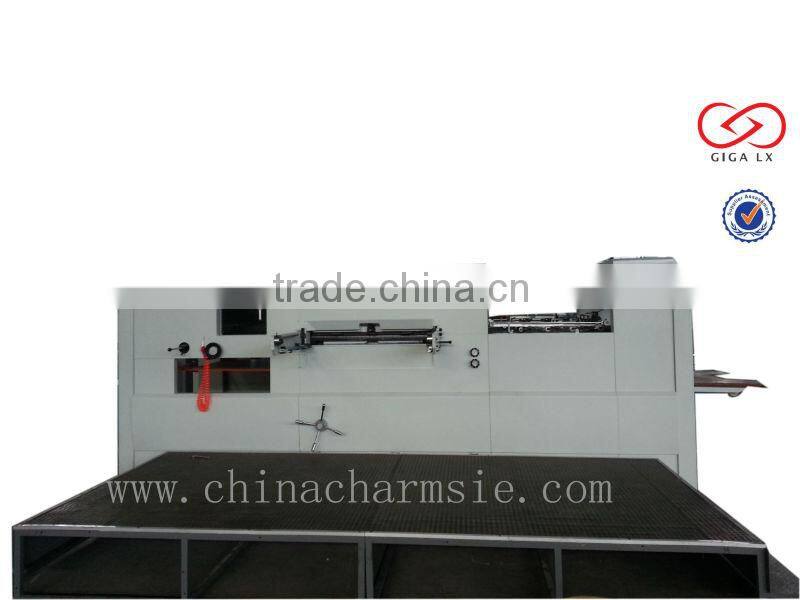

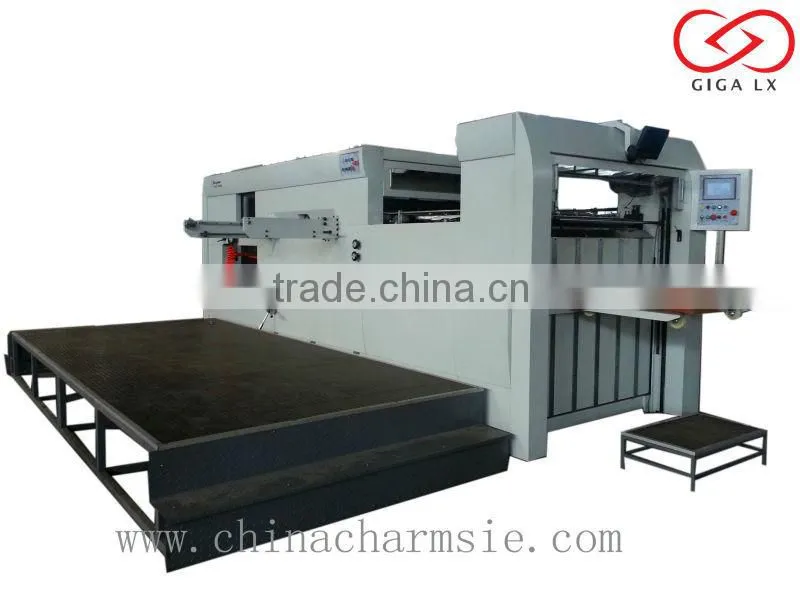

GIGA-LXMHC-1100/1300/1500/1650B SEMI-AUTOMATIC DIE CUTTING & CREASING MACHINE

GIGA-LXMHC-1100/1300/1500/1650B SEMI-AUTOMATIC DIE CUTTING & CREASING MACHINE photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Food, Beverage, Medical, Chemical, Apparel, Textiles
Packaging Type:
Stand-up Pouch
Automatic Grade:
Semi-Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
port of China
Delivery Detail:
Delivery time depends on order quantity.
Application Food, Beverage, Medical, Chemical, Apparel, Textiles
Packaging Type Stand-up Pouch
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage 380V
Place of Origin Shanghai, China
Brand Name GIGA-LX
Model Number LXFG-1200
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Transducer is adopted to control the main motor in achieving step-less speed variation.
2. Easy operation and maintain.

GIGA-LXMHC-1100/1300/1500/1650B SEMI-AUTOMATIC DIE CUTTING & CREASING MACHINE



GIGA-LXMHC-1100/1300/1500/1650B SEMI-AUTOMATIC DIE CUTTING & CREASING MACHINE

GIGA-LXMHC-1100/1300/1500/1650B SEMI-AUTOMATIC DIE CUTTING & CREASING MACHINE

GIGA-LXMHC-1100/1300/1500/1650B SEMI-AUTOMATIC DIE CUTTING & CREASING MACHINE



GIGA-LXMHC-1100/1300/1500/1650B SEMI-AUTOMATIC DIE CUTTING & CREASING MACHINE



GIGA-LXMHC-1100/1300/1500/1650B SEMI-AUTOMATIC DIE CUTTING & CREASING MACHINEGIGA-LXMHC-1100/1300/1500/1650B SEMI-AUTOMATIC DIE CUTTING & CREASING MACHINE





This semi-automatic die-cutting machine’s development is combined with advantages of similar products in domestic and over seas, is a special equipnment for packing products such as cartons and paper boxes.Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal,back and side registration mechanism ensure great precision of die-cutting.Other parts are adopted such as intermittent mechanism with high precision, air cluth, pneumatic locking mechanism,programmable controller and man-machine interface.The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc.It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving step-less speed variation.



                     1100×790          1290×940          1500×1100           1650×1210

Max. paper size        (mm)                (mm)               (mm)                 (mm)

                             400×350           550×480           550×480             650×550

Min.paper size         (mm)                (mm)               (mm)                 (mm)

                               1070×770         1280×930          1490×1090            1620×1190

Max.die-cutting size     (mm)                (mm)               (mm)                 (mm)

                                    5000               4000                4000                  3200

ing speed       s/h                 s/h                 s/h                   s/h

                                11                 13.5                13.5                  19.7

Rated power            kw                  kw                 kw                   kw

                                      250                250                 300                  300

ing pressure     (t)                  (t)                  (t)                   (t)

                                  13                  15                  17                   28

Machine weight          (t)                  (t)                  (t)                   (t)

                       4500×3020×2085   6050×3220×2085    6270×3450×2150    6610×3767×2270

Overall dimension       (mm)                (mm)               (mm)                 (mm)



5-27.15
