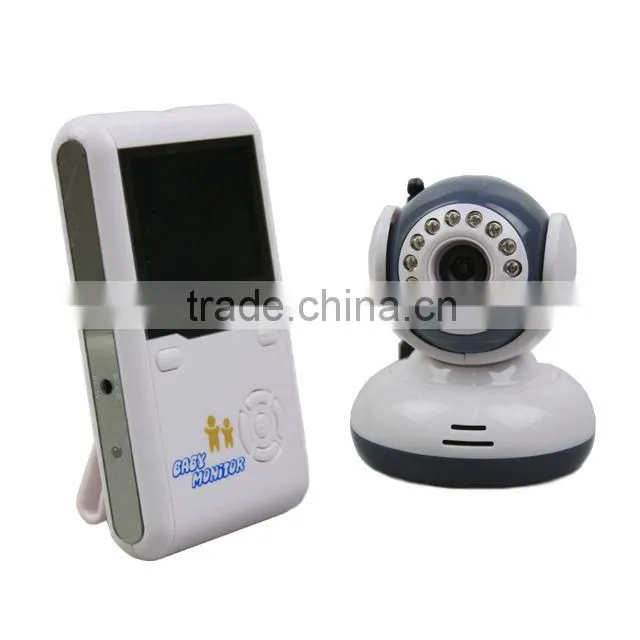

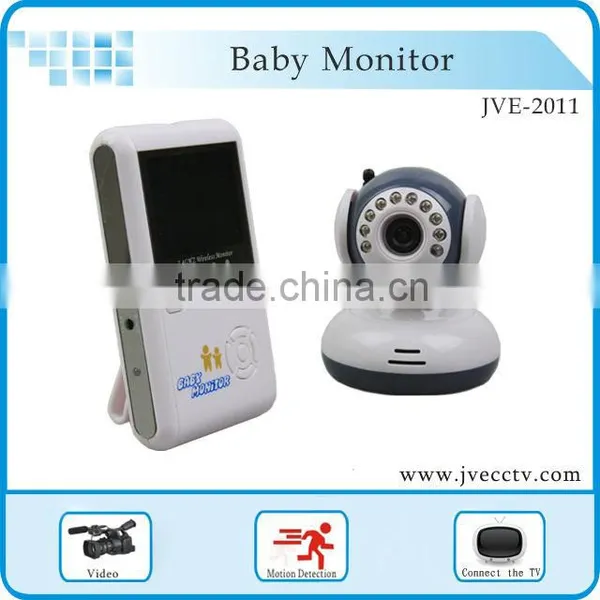

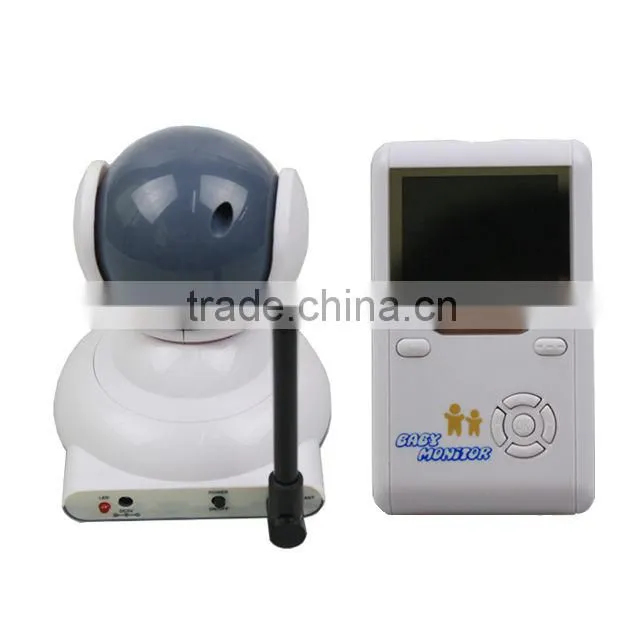

vivid image baby monitor 2-way communication, real time monitor, infrared night vision,rechargeable battery TV Out JVE-2011

Specifications

Products Descriptions

l  Main Features: 2-way communication, real time monitor, infrared night vision, rechargeable battery, TV Out

l  Transmission Frequency: 2400MHz-2480MHz

l  Transmission Power: 12dBm

l  Operating Frequency: 2450MHz

l  Unobstructed Effective Range: 250m

l  Operating Temperature: 0°C-60°C

l  Storage Temperature: 25°C

l  Operating Humidity:20%-80%RH

l  Accessories:2.4G Wireless camera, 2.4” Wireless LCD

 Monitor, 5V DC Adapters*2pcs, AV Cable, User Manual

Detailed Parameters

Baby Unit

l  Image Sensor: 1/4 COMS

l  Picture Total Pixels: 628*582(PAL),510*492(NTSC)

l  Horizontal Resolution: 360 Line

l  View Angle: 60 degree

l  Minimum Illumination: 1.5Lux

l  IR Night Vision Range: 3-5m

l  Battery: 3 AAA batteries

l  Motion Detection Distance: > 5m

l  Consumption: 150mA+15mA

l  Power: DC 5V

l  Dimension: 100*86*86mm

l  Weight: 141g

Parent Unit

l  Receiving Sensitivity: -85dBm

l  Color Configuration: R.G.B

l  Consumption: 150mA+15mA

l  Video System: NTSC/PAL

l  Power: DC 5V

l  Built-in Battery: Polymer battery 750mAh

l  Effective Pixels: 320*240

l  Dimension: 120*70*22.8mm

l  Weight: 137g
