CE MINI portable cement mixer 500L
- 300 Set / Sets per Month
- Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
- Rotating Drum Cement Mixer
- Small Electric Cement Mixer Mini Portable Concrete Mixer
- concrete mixer,cement mixer machine,self loading mixer
- Simple Operation Electric Powered Friction Cement Mixer with Low Cost
- cement mixers,cement mixer electric,cement mixer machine
- JS500 automatic cheap concrete mixer for sale,cement mixer in china,mixer concrete
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Wante |
Model Number: | JS500 mixer | Motor Power: | 27.45KW | Mixing Power: | 18.5KW |
Charging Capacity: | 500L | Reclaiming capacity: | 800L | Speed of Mixing Drum: | 31R/MIN |
Water Supply Mode: | automatic | Working Cycle Period: | 72s | Discharge Way: | Automatic |
Outline Dimension: | 3030x2520x2880mm | After-sales Service Provided: | No overseas service provided |
Packaging Details
1,Nude package in container
2.Plywood package in less than one container
Product Description

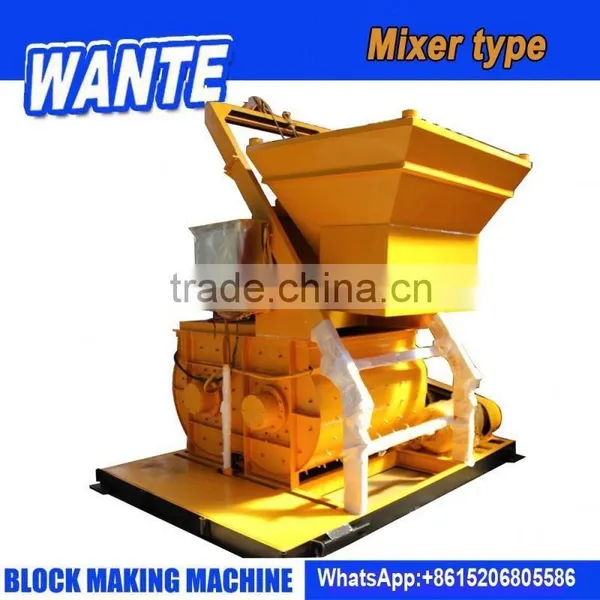

JS500 CE MINI portable cement mixer 500L
1. CE MINI portable cement mixer 500L Introduction
JS500 CE MINI portable cement mixer 500L is twin-shaft compulsory concrete mixer, which can mix subarid rigid concrete, plasticility concrete, flolwability concrete, light aggregate concrete and various mortar. Drum sets with wear resistant cast liner and mixing blade, which is durable and easy to replace. Once JS500 concrete mixer is combined with various models batching machine, batching plant will come into being, which applies to various kinds of large & medium scale prefabricated factories and all kinds of construction sites.
Feature:
1 Easy to install and move
2 Fully automatic operation .
3 Low price and golden service
4 Short mixing time, good homogeneity .
5 The shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace
Parameters:
Model | JS500 |
Discharge volume | 500 L |
Theoretical capacity | ≥25 m3/h |
Aggregate sizes | 60/80 mm |
Working circle | 60 s |
Hopper lifting speed | 18 m/min |
Aggregate weighing range | 4000 kg |
Total power | 25.5 kw |
We also have the other type for you choose for JS500 CE MINI portable cement mixer 500L :
Double horizontal shafts forced concrete mixer JS 500/750/1000/1500 | ||||
Model | JS 500 | JS 750 | JS 1000 | JS 1500 |
Discharge capacity | 500 L | 750 L | 1000 L | 1500 L |
Charge capacity | 800 L | 1200 L | 1600 L | 2400 L |
Mixing time | 35-45 S | 35-45 S | 35-45 S | 35-45 S |
Rated output | 25-30m3/h | 37-45m3/h | over 50m3/h | 65-75m3/h |
Main motor power | 18.5KW | 30KW | 2x18.5/37KW | 2x30KW |
Hoisting | 5.5KW | 7.5KW | 18.5KW | 22KW |
Water pump power | 1.1KW | 1.1KW | 3KW | 3KW |
Maximum size of aggregate | 60/80mm | 60/80mm | 60/80mm | 60/80mm |
Overall dimension (mm) ( L x W x H ) | (T) 2786x3003x2151 | 3636 x 2805 x 2630 | 4500 x 2400 x 2165 | 5200 x 2480 x 3150 |
(W)4448x3003x5634 | 4950 x 3636 x 6260 | 9500 x 3800 x 8605 | 11700 x3880 x 9010 | |
Total weight | 4100 Kg | 6400 Kg | 11000 Kg | 12000 Kg |
We also can provide the all kinds of block machine as below ,any interst ,Please contact us .
1. Help buyers choose the suitable machine .
2. We can offer the invitation if the buyers want to visit our facotry.
3. Inform the buyers about the produce process timely.
4. Offer the manual book and machine video when delivery.
5. 24 hours on line, buyers can talk to us any time.
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry.
Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation.
Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service.
We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
