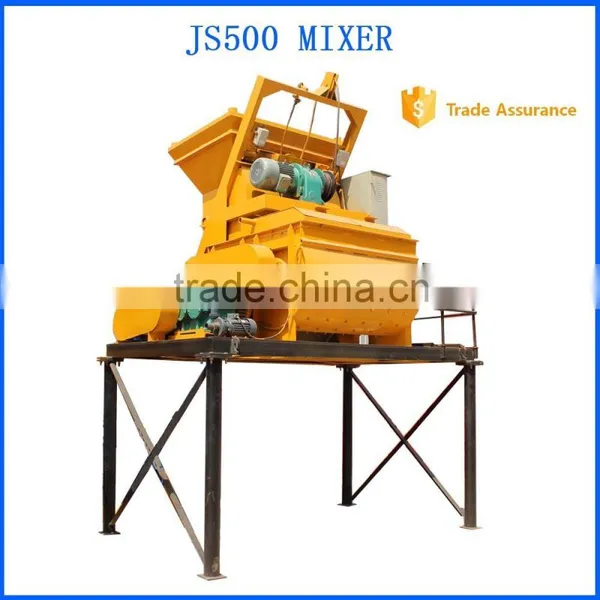

JS500 Concrete Mixer
Simple introduction
JS 500 concrete mixer is twin axis compulsory concrete mixing machine, which has two mixing
shafts inside the mixing drum. When the mixer is working ,both the two shafts are running.JS500
can work independently, also can be composed the concrete batching plant .
Technical specifications
Model | JS500 | |
Charging Capacity (L) | 800 | |
Discharging Capacity (L) | 500 | |
Production Capacity (m3/h) | ≥25 | |
Max Aggregate Diameter mm | ≤40/60 | |
Cycle Time (s) | 72 | |
Stirring Vane | Rev Speed (r/min) | 31 |
Quantity | 2×7 | |
Stirring Motor | Model |
|
Power (KW) | 18.5 | |
Lifting Motor | Model |
|
Power (KW) | 5.5 | |
Pump Motor | Model |
|
Power (KW) | 0.75 | |
Dimensions ( mm) | Travel State | 3030×2520×2880 |
Operation State | 5025×3100×5680 | |
Total weight (Kg) | 3500 | |
Applications of JS500 concrete mixer
Applied to preordered construction element plants in medium-and-large scale and construction
departments for industrial and civil architectural engineering of highways, bridges, water conserv
ancy, ports and decks in mixing hard concrete, plastic concrete, liquid concrete, lightweight aggre
gate concrete and all kinds of mortar. It features Besides operating as an independent machine,
it can either combine with PL1800 or PL1200 batching machine to form a mixing plant, or serve as
the matching principal machine of commercial concrete batching plant.

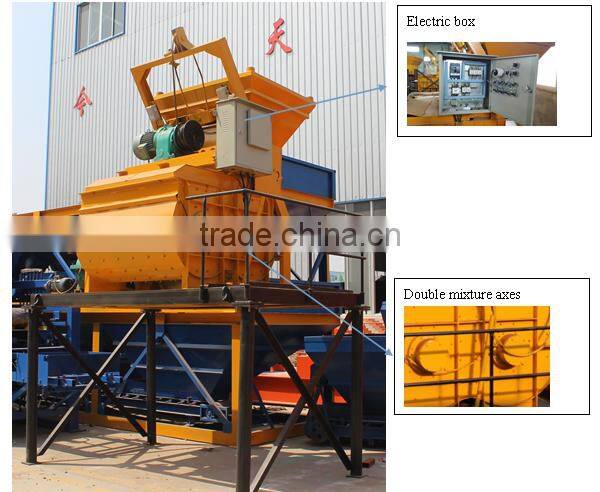

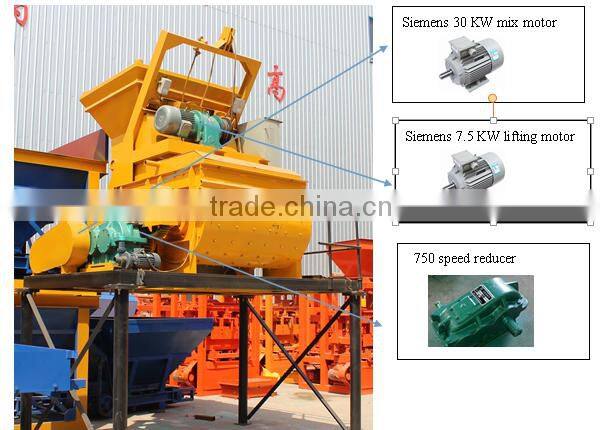

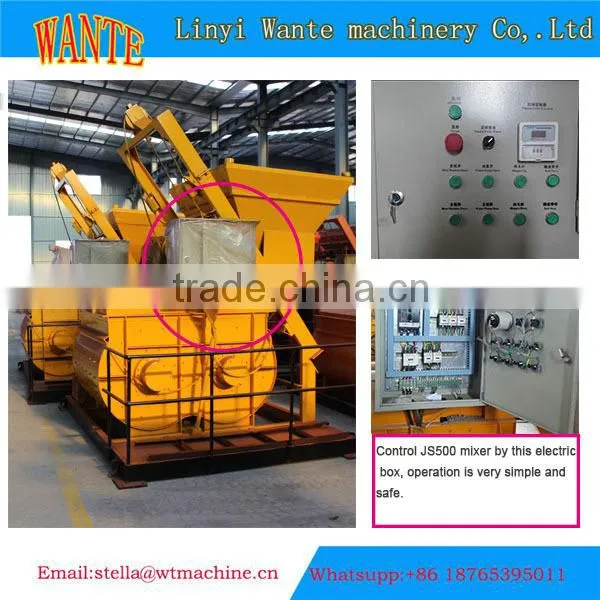

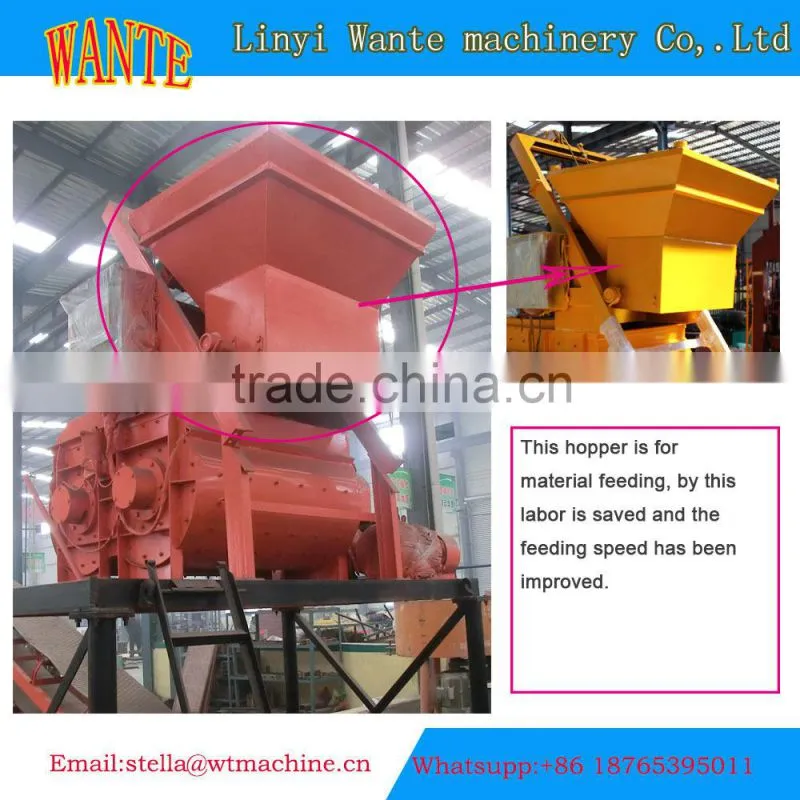

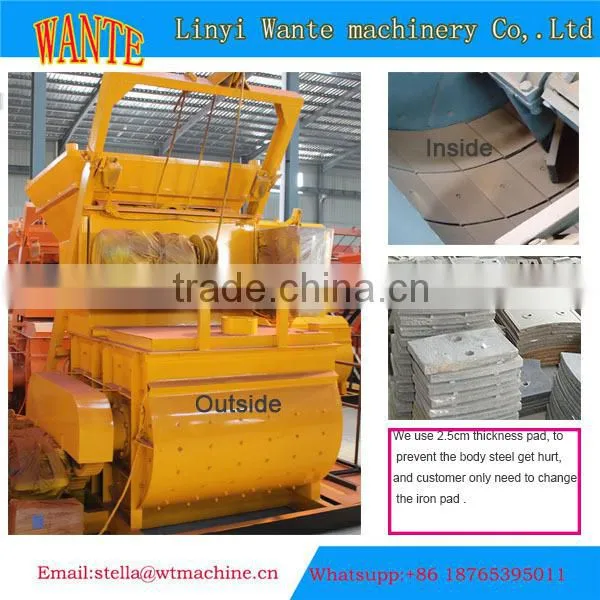

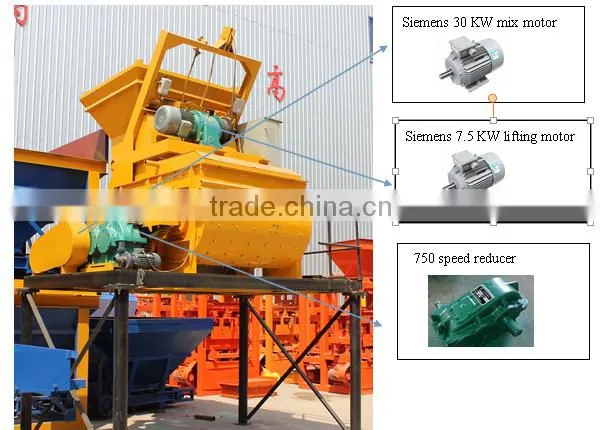

Feautures of JS500

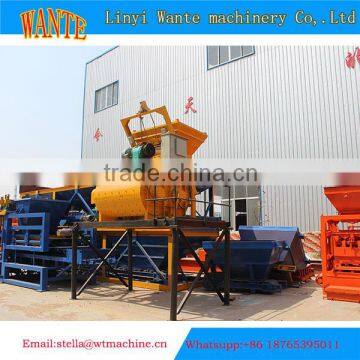

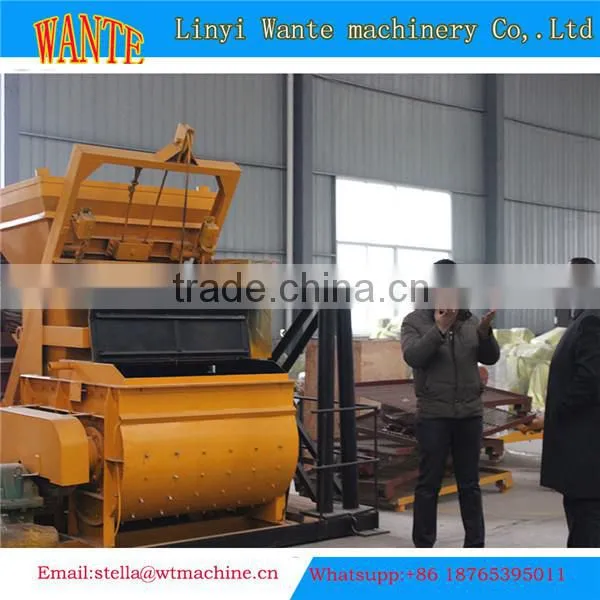

Customers of JS500

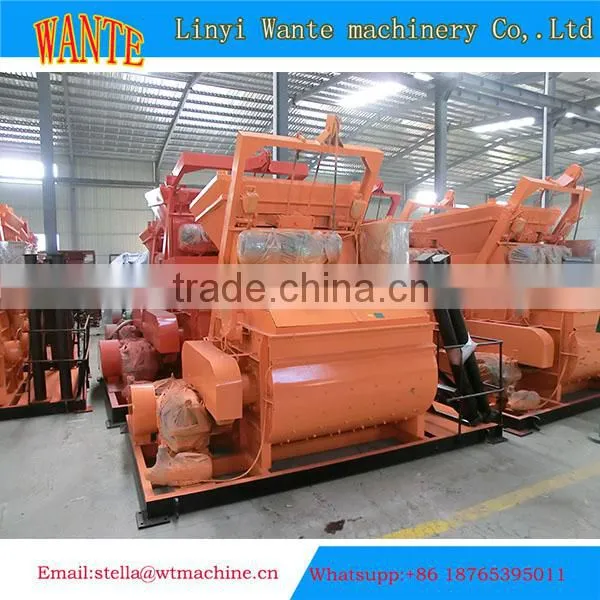

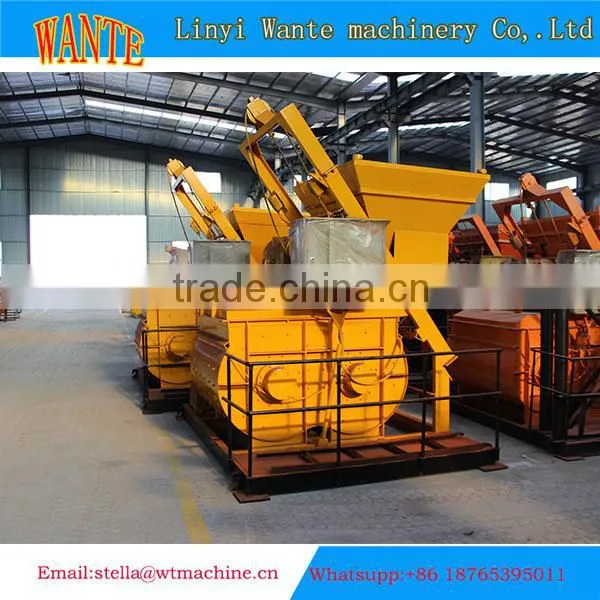

Machines in stock
Packing and shipping
Our services
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line anytime,if you need, we can Make inVitation card for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix,and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time,keep well communication with each other.
