Trade Assurance JS500 Concrete Mixer With Pump/Mixer For Mixing Concrete

Name: Trade Assurance JS500 Concrete Mixer With Pump/Mixer For Mixing Concrete
Brand: WANTE
SKU: 111998545
Availability: InStock

US$ 4,188 - 5,120 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

WANTE

Linyi Wante Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name WANTE

Model Number JS500

Motor Power 18.5kw

Mixing Power ≥25 m3/h

Charging Capacity 800L

Reclaiming capacity 500L

Speed of Mixing Drum 30r/min

Water Supply Mode water pump

Working Cycle Period 72s

Discharge Way Pneumatic or manual

Outline Dimension 5025x3100x5680

After-sales Service Provided Engineers available to service machinery overseas

Working Principle

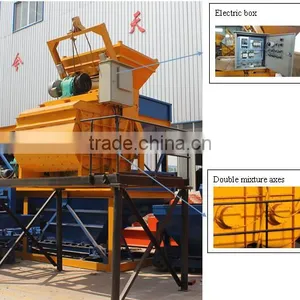

Mixing system is composed of electric motor, reducer, exposed gear, and lubrication system.
There are two horizontal mixing shafts in the mixing drum, and the mixing blades are fixed at
the two mixing shafts.
The reducer with double gear is driven by electric motor, and the two shafts driven by exposed
gear are rotating in the opposite direction at the same speed.
There is one discharge gate at the bottom of the mixing drum, discharging by manual handle
or pneumatic device.

Advantage-- JS500 Concrete Mixer

The twin shaft concrete mixer has strong mixing ability, the mixing quality is better and the production-efficiency is high.

Equipe with multiple shaft end sealing protection device and wind pressure sealing protection device and effectively avoid leakage absolutely;
Monitoring system of mixer can working condition of monitor reduction box,dischage pump and lubricating pump;
Equip with special-purpose motor lubricate oil pump, and four separate pump core respectively feeds oil to four axial heads directly,without using by-pass valve;
Multi pipes & way water injecting system can make sure that water can injected uniformly;
Heavy design and stable running.

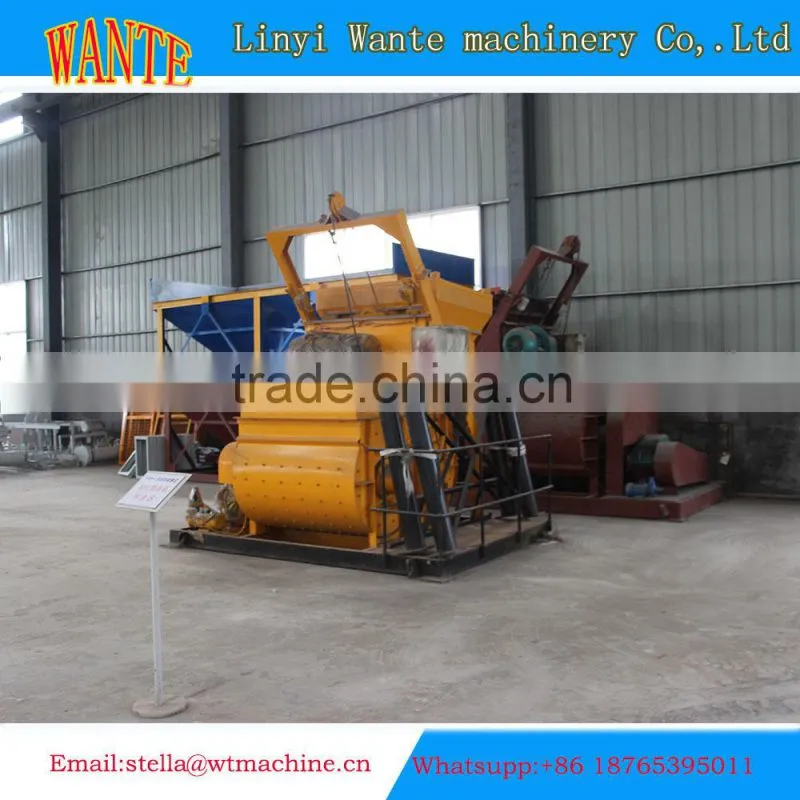

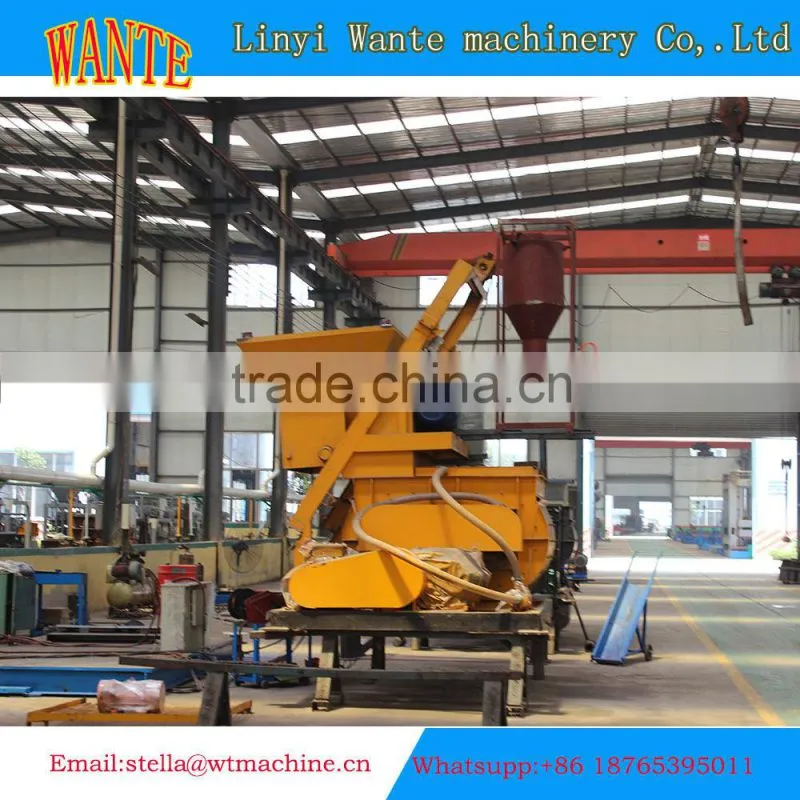

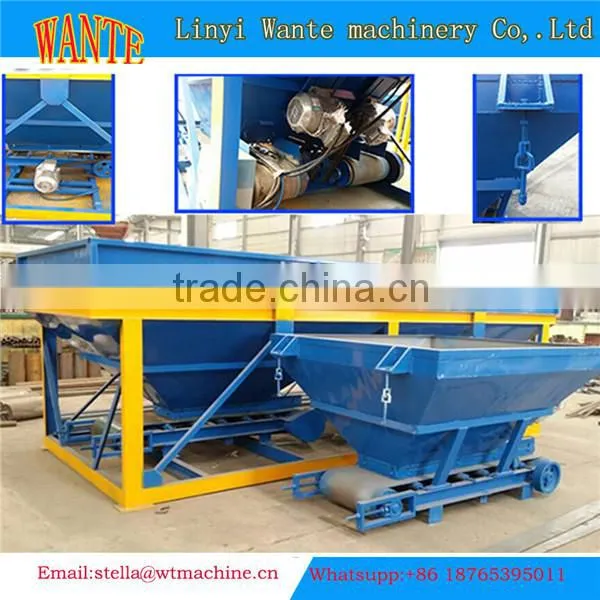

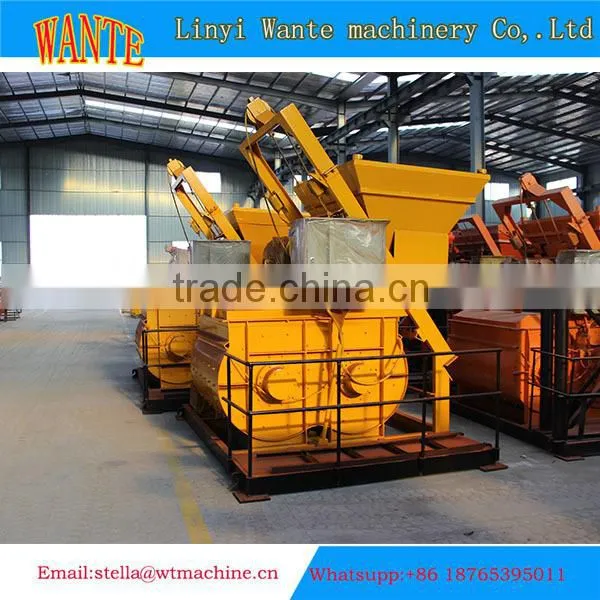

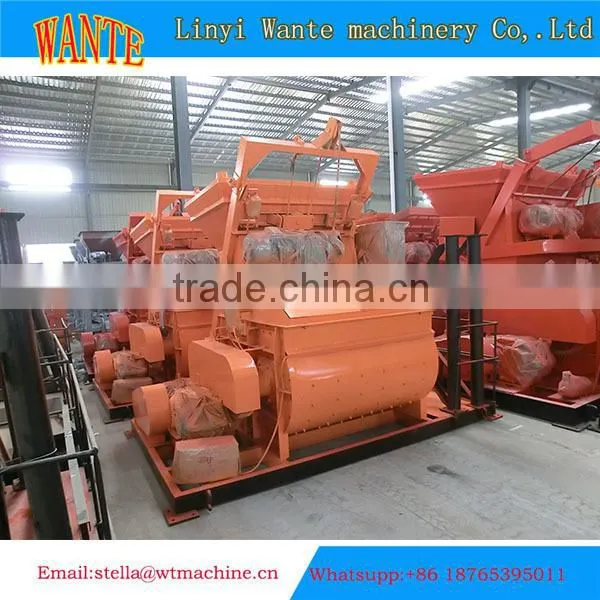

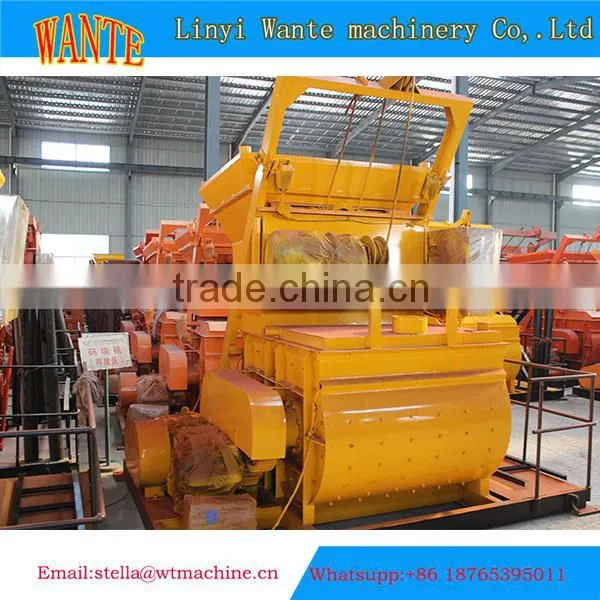

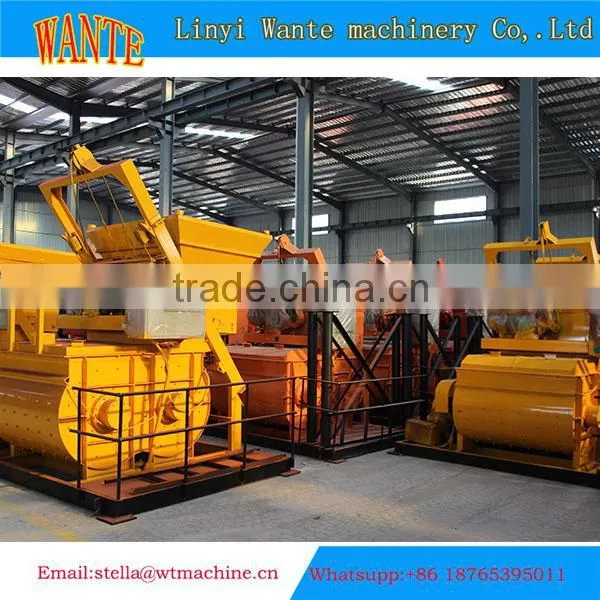

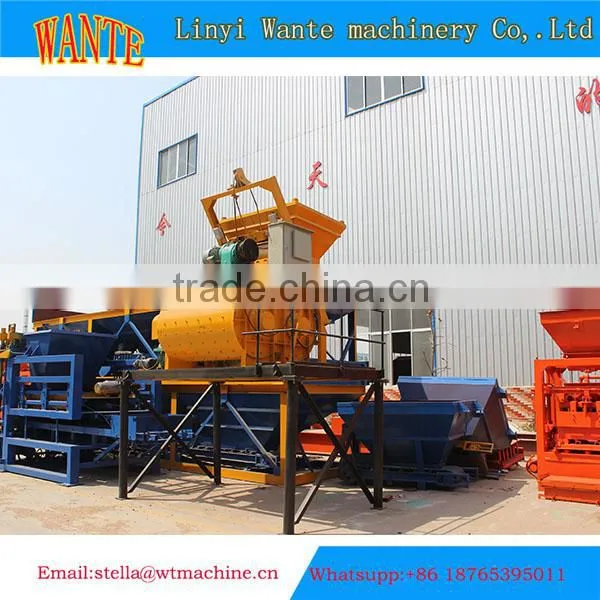

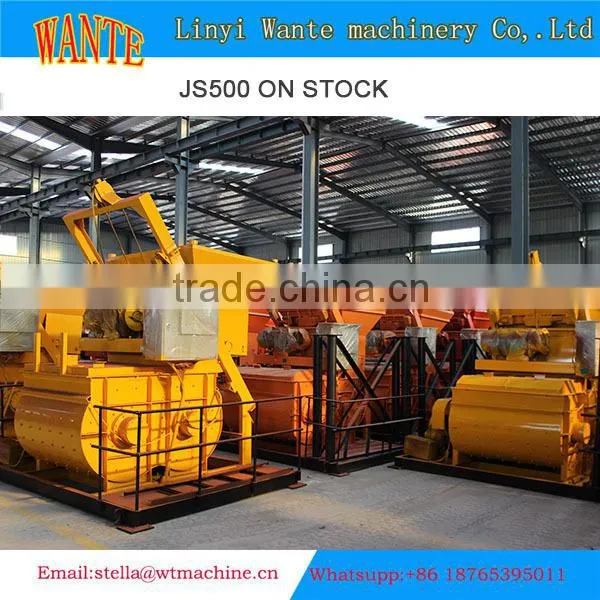

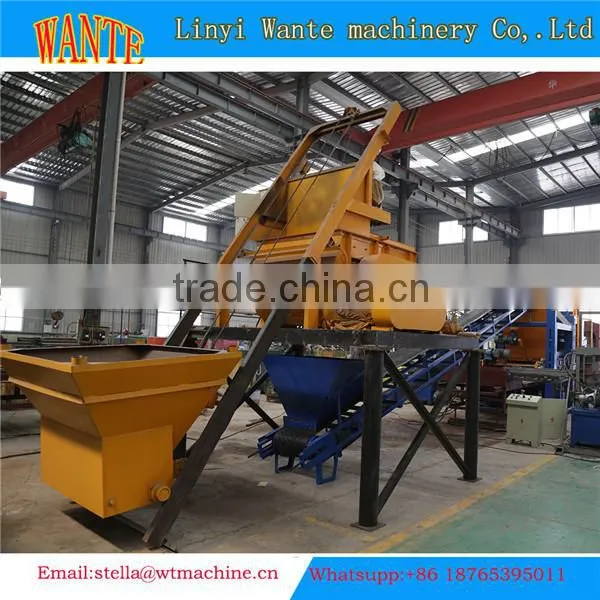

Products show
