Help CenterAluminum PCB Hard Gold Finger Au 30 U'' Soft and Rigid Combination Board
Related Products
-
Android Mobile Phone Motherboard Pcb Soft and Rigid Combination Board Split Flexible PCBs Hard and Soft Binding PlateUS$ 0.001 - 199MOQ: 10 Pieces -
Rigid Flex Pcbs in ChinaUS$ 0.1 - 1,000MOQ: 1 Piece
-
PCB Manufacturer With Rigid Flex PCB BoardUS$ 0.1 - 1,000MOQ: 1 Piece
-
PCB for Digital ScaleUS$ 0.1 - 1,000MOQ: 1 Piece
-
am fm Radio Pcb Circuit Board Dvr Pcb Oem Pcb in High QualityUS$ 1 - 100MOQ: 1 Piece
FR4 94vo UL&ROHS circuit board, rigid pcb, rigid pcb board Aluminum PCB hard gold finger Au 30 U'' DS-7106 A pcb Prototyping Peripheral Board PB30 (3 Pack) Hard and soft combination circuit board Copper Inlay PCBs HDI PCBs with blind and buried vias soft and rigid combination board
Production lead time is 2-7 days
FR4 pcb manufacturer
Advanced pcb equipement
pcb factory located in Shenzhen
UL,ISO,ROHS passed pcb
NO MOQ
pcb details:
Specifications |
Details |
Material Type |
FR-4, CEM-1, CEM-3, Aluminium Clad,Arlon*,Teflon,Taconic, Rogers*, Polyimide*, Kapton,Dupont |
Material Thickness ( in inches) |
0.062”, 0.080”, 0.093”, 0.125”, 0.200”, 0.047”, 0.031”, 0.030”, 0.005" |
Layer count |
1 to 8 Layers |
Max. Board Size |
6000mm*1000mm |
IPC Class |
Class II, Class III , Class 1 |
Annular Ring |
5 mil/side or Greater (Min. Design) |
Finish Plating |
Solder(HASL), Lead Free Solder(HASL), ENIG (ELectroless Nickel Immersion Gold), OSP, Immersion Silver,Immersion Tin, Immersion Nickel, Hard Gold, Other |
Copper Weight |
0.5OZ-7OZ |
Trace/Space Width |
3 Mils or Greater |
Drill Clearance |
0.1mm(laser drilling) |
Plated Slots |
0.036 or Greater |
Smallest Hole (Finished) |
0.1mm or Greater |
Gold Fingers |
1 to 4 Edge (30 to 50 Micron Gold) |
SMD Pitch |
0.080” - 0.020” - 0.010” |
Soldermask Type |
LPI Glossy, LPI-Matte, SR1000 |
Soldermask Color |
Green, Red, Blue, Black, White, Yellow, |
Legend Color |
White, Yellow, Black, Red, Blue,green,Matte green,matte green |
CNC Route Point |
Any |
Minimum Route Width |
0.031” |
Scoring |
Straight Lines, Jump Scoring, Panel Edge to Edge, CNC* |
Body Gold |
HARD*, IMMERSION* (up to 50 MICRON GOLD) |
Data File Format |
Gerber 274x with embedder aperture |
Fab. Drawing Format |
DXF, HPGL, DWG, PDF, Gerber |
E.T Testing |
Flying Probe, Single Sided, 1up Plate, Clampshell, Net List |
Counter Sink / Counter Bore |
Availiable up to 0.250 Diameter |
Control Impedence |
Yes |
Blind Vias / Buried Vias |
Yes |
Peelable Mask |
Yes |
Carbon |
Yes |

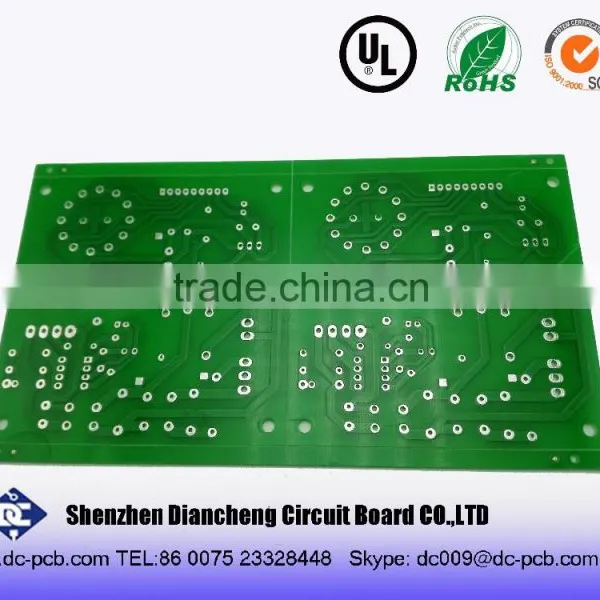

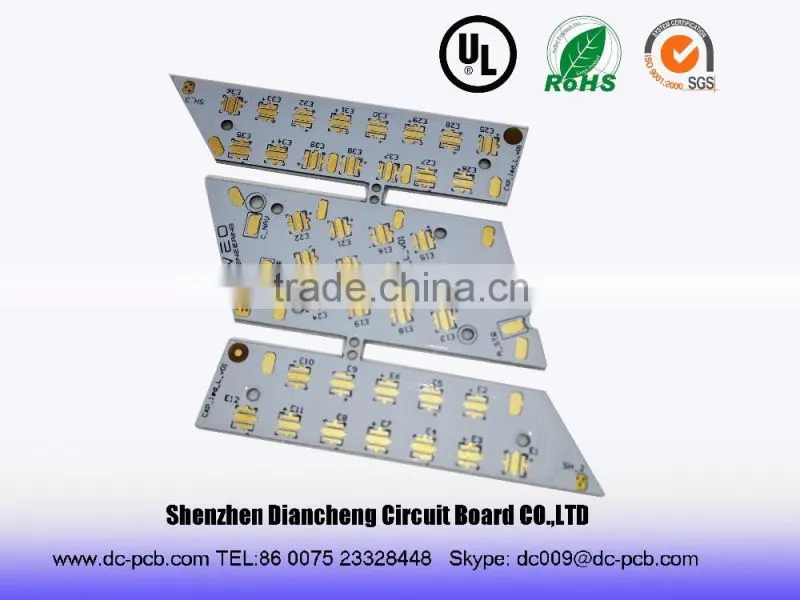

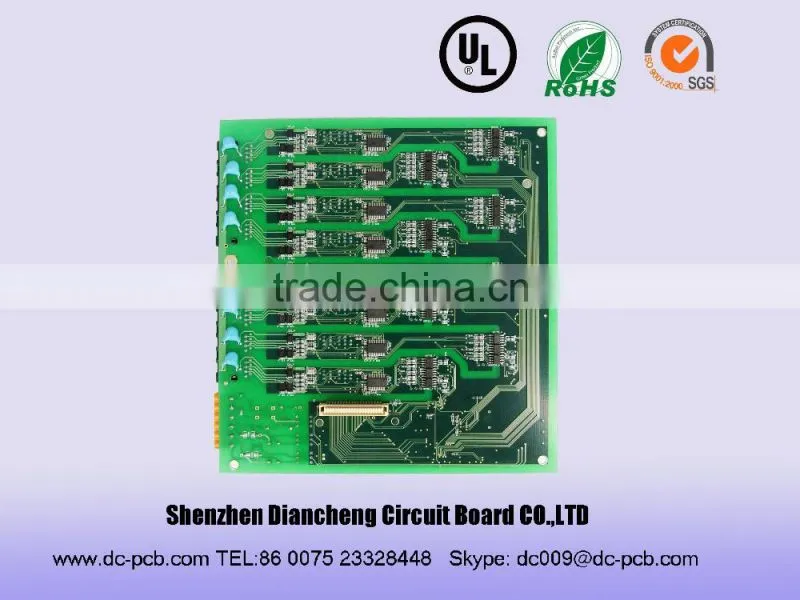

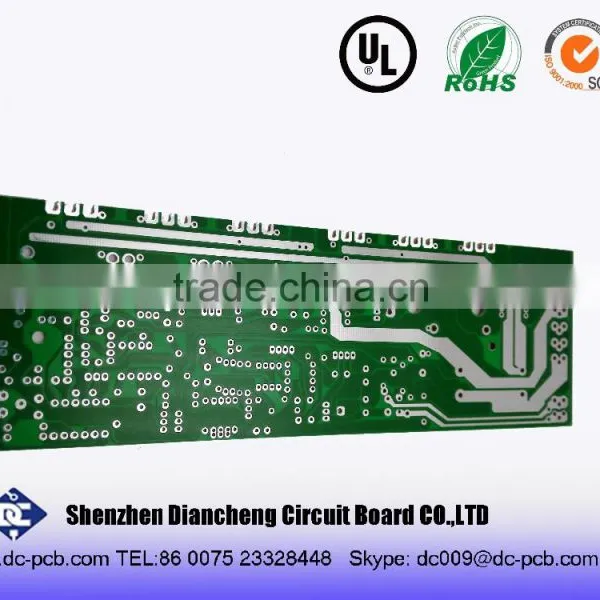

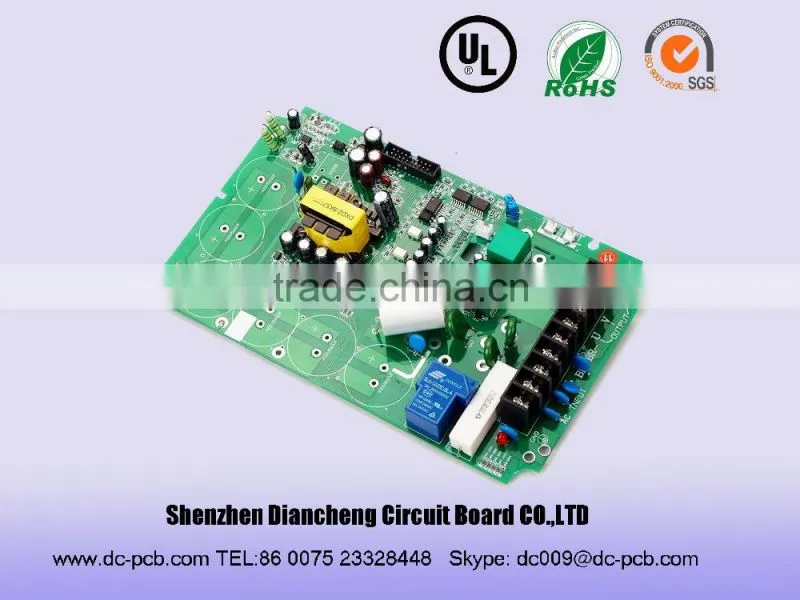

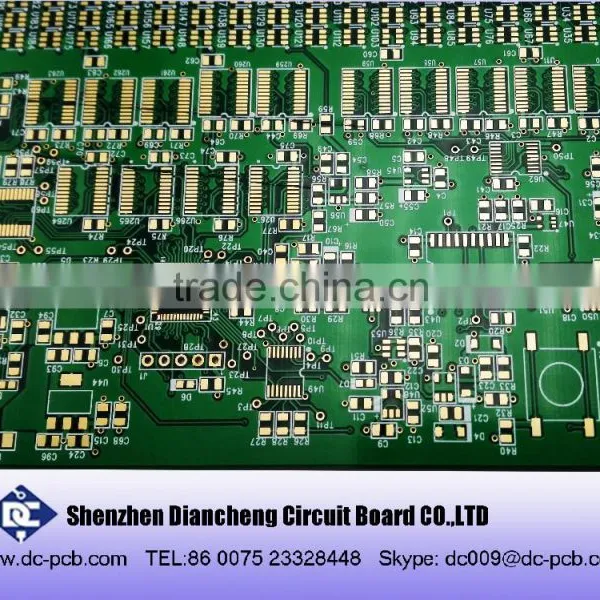

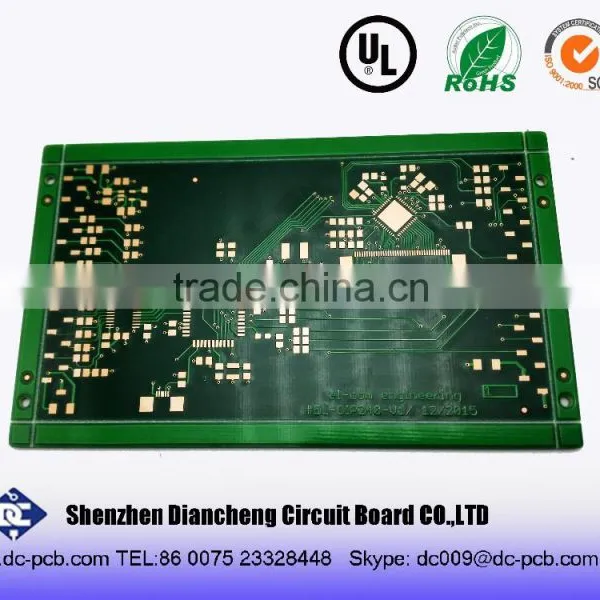

pcb picture:
Packaging Detail: |
Anti-static bag, bubble pack, carton box,Vacuum... |
Delivery Detail: |
10-15Days, delivery just-in-time |
Shenzhen Diancheng Circuit Board Co. Ltd is a hightech enterprise specialized in high precision doublesided and multilayer board manufacturing. We were established in 2006 and located in Shajing Street, Shenzhen, China. We have a highquality professional technical management, and strong quality assurance team and over 250 employees. Our monthly capability is 15,000 square meters. Our products are widely used in computers, peripheral devices, telecommunications, domestic appliances, instruments, apparatus, industrial equipment, automobile, microelectronics, LCDs, LEDs and other fields.
Our company occupies 5,000squaremeter modern production plant, has advanced professional production and inspection/testing equipment imported from Europe, the US and Japan, and operates standard management system strictly. We have established particular research system and long-term scientific development plan, and thoroughly implements ISO 9001:2000 and 5S management system.
Send Inquiry to This Supplier
