Specifications

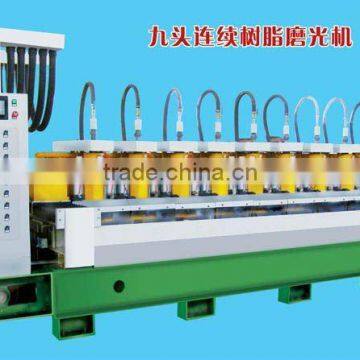

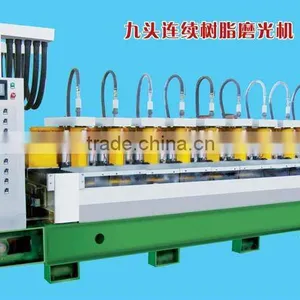

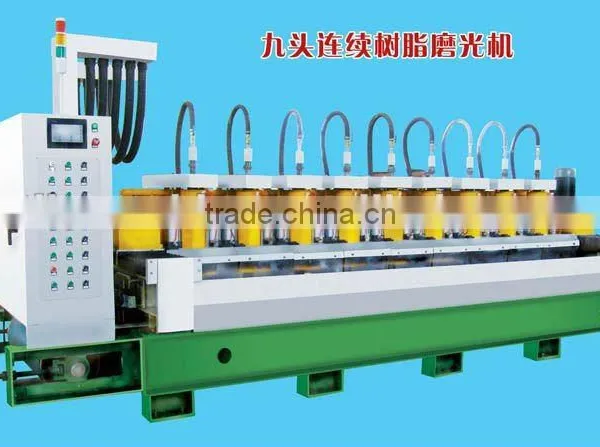

KBJX 12 heads linear multihead polishing machineKBJX 12 heads linear multihead polishing machine
This series continue resin abrasive polishing machine with 9-12 head, This machine is mainly for slab polishing. The structure is reasonable, steady performance, high work efficiency. With the import PLC controlling system, text display is controlled intelligence.
1. Out airbag, long life using, lower hazard rate, lower maintenance cost, etc advantage.
2. With the best quality belt with famous brand, thickness accord, promise the thickness of the slab.
3. Belt move and bridge move is controlled with the automatic controlling system
4. With lower power (7.5kw single head), lower cost, cost is only 0.6USD per square meter, Capacity is 38 square meter per hour. The brightness for G3786 can catch up 85 degree.
Technical data
Processing width: max 900mm
Processing thickness: max30mm
Grinding Heads: 9-12
Capacity: 150-300 square meter per 8hours
Total power: 72kw
Grinding head power: 9-12x7.5kw
Belt move power1.5kw
Bridge move power 3kw
Belt move speed:600-2200mm/min
Pressure: 0.6-0.8Mpa
Cooling water pressure: in 0.15Mpa
Consumption water for single grinding:25L/min
Machine size:6000*2200*2100mm
