Specifications
WKR700 doube drum vibrating rollerHydraulic drive,Japan imported pump
Weight:680-710kg
Force: 12KN
CE

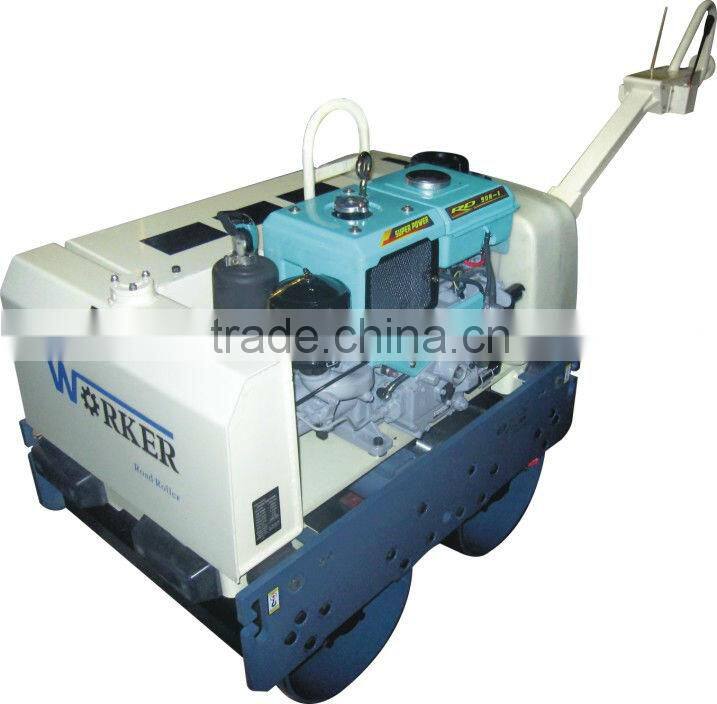

With KAMA diesel engine
With Kipor diesel engine
With water cooled diesel engine
With Honda GX390 engine
Side view

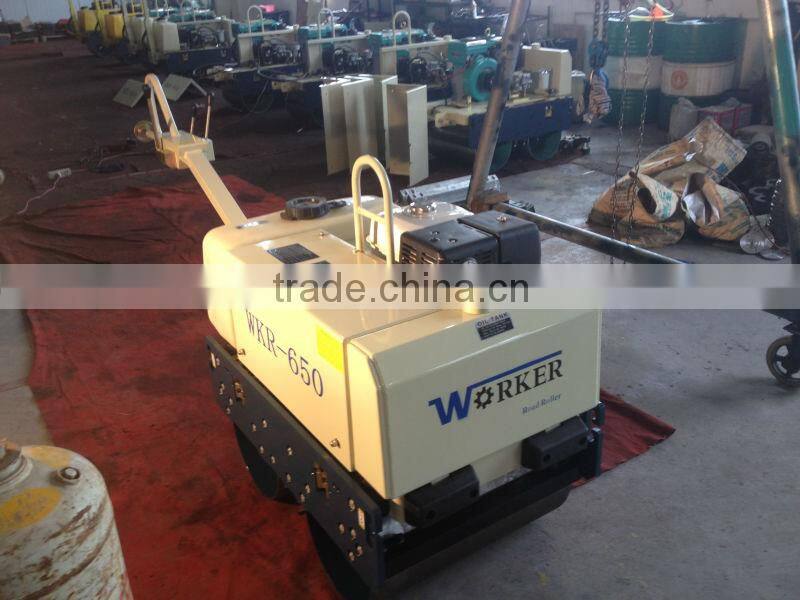

WKR650 doube drum vibrating roller
Hydraulic drive,Japan imported pump
Weight: 680-710kg
Force: 12KN
CE
Features
1.Hydraulic drive ,imported hydraulic pump from Japan
2.Handled by joystick,effort saving and smooth opeartion
3.Custom made watercooled diesel engine,with good heat dissipation and great power
comparing to gasoline engine, especially fits for running in burning hot areas.
4 Drum and body steel material is C45,better tensile strength than Q235,long service life
5.Steel cutting by lazer,no deformation from twisting and bending,high demension accuracy
comparing to flame cutting
6.The rollers can wokr long time with high capacity water tank
7.CE certificaiton
Japan IMPORTED hydraulic pump,TUFF TORQ,KPL-13,output 13cc/rev.
Hydraulic conctrol unit

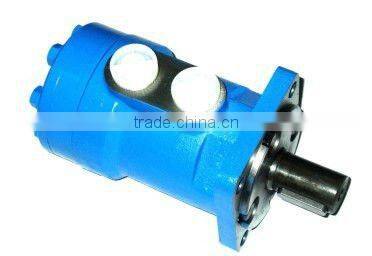

EATON hydraulic motor,JH-6,output 125cc/rev.
Specification
| Model No. | WKR650-1 | WKR650-2 | WKR650-3 |
| Engine Model | Honda GX390 | Kipor 186F | RD 90N |
| Maximum output | 8.7kw(11.7HP) | 6.3kw(8.5HP) | 6.62kw(9HP) |
| Displacement | 0.389 L | 0.406 L | 0.487 L |
| Fuel tank capacity | 6.1L | 5.5 L | 5.8 L |
| Weight | 650kg | 680kg | 710 kg |
| Travel speed | 0-4 km/h | ||
| Vbiration frequency | 60 Hz | ||
| Centrifugal force | 12 KN | ||
| Compact width | 650 mm | ||
| Roller diameter | 360 mm | ||
| Climb ability | 0-30 ° | ||
| Water tank capactity | 40 L | ||
| Oil tank capacity | 25 L | ||

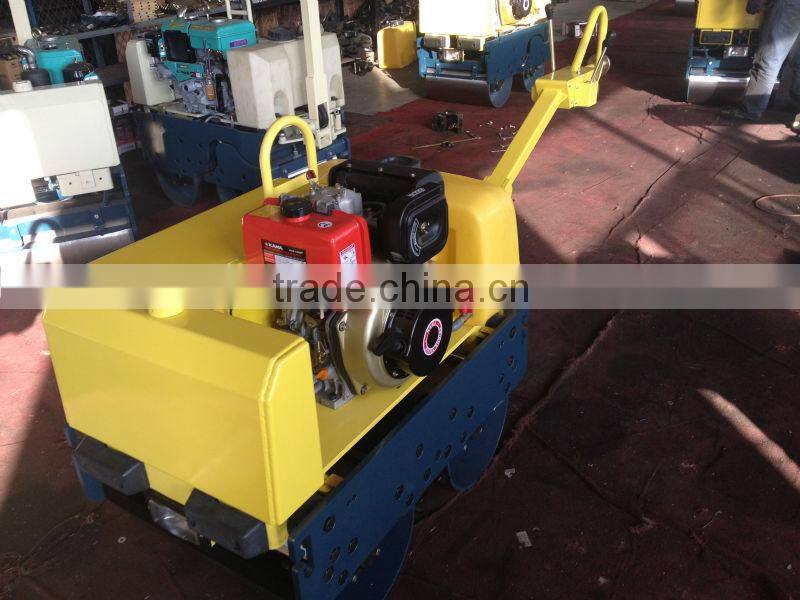

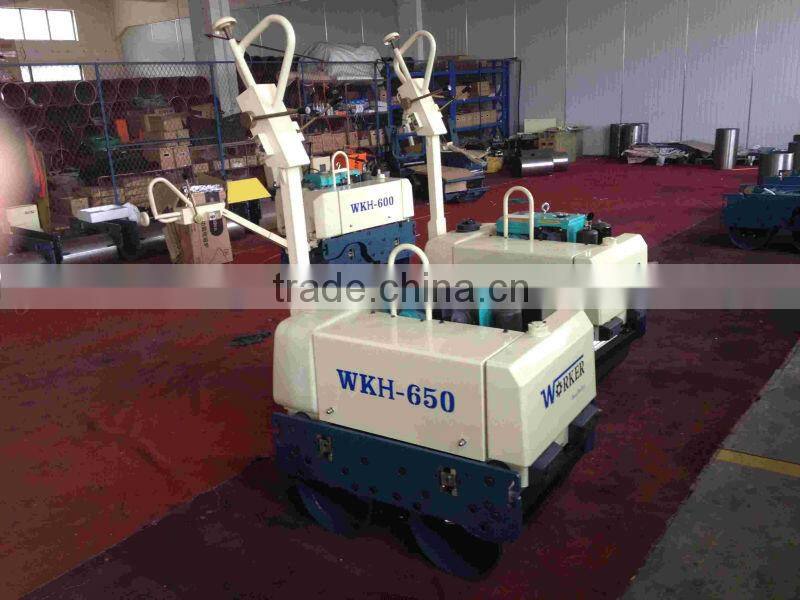

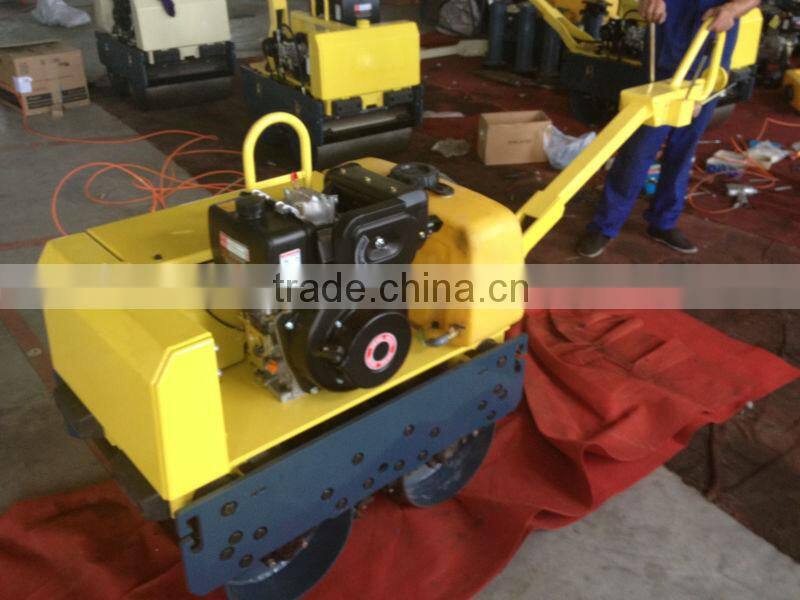

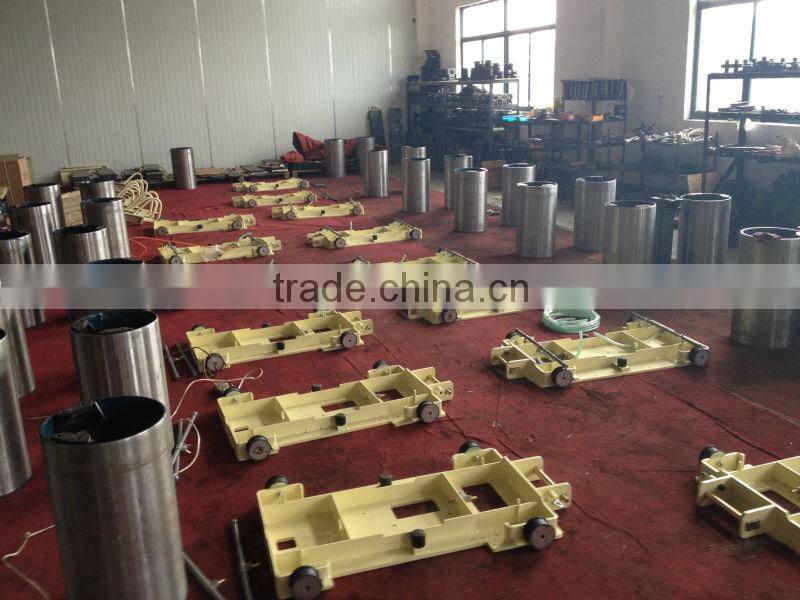

Workshop photos

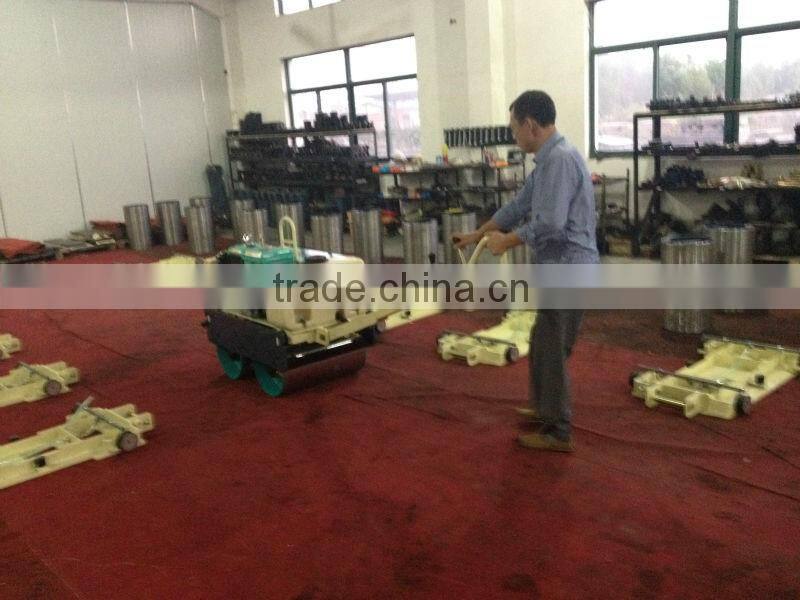

100% test run before shipment

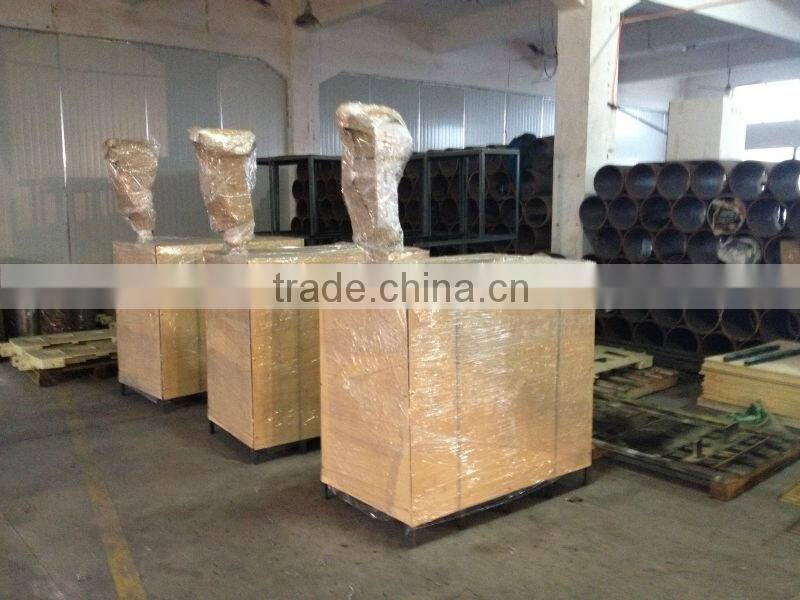

Package

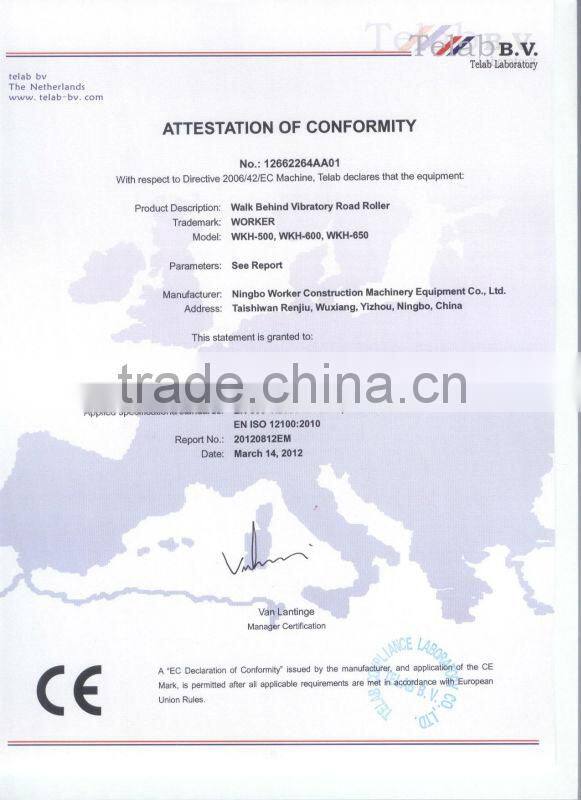

CE certificate
