Specifications
KB-125E/600 high quality cleaning terrazzo floor machinemake 300*300mm, 400*400mm, 600*600mm... available
easy operate
KB-125E/600 high quality cleaning terrazzo floor machine
(terrazzo tile making making, concrete tile machine, tile making machine)
Raw material:
Raw materials should be mixed with grinding mixer for 5~10 mins. This production line is equipped with KBMJ-400 or KBMJ-600grinding mixer. ( exceeding capacity 350L, dia1300mm, 12rpm)
Raw materials | Specification | Ratio(kg) | Notes |
Cement | P.O or P.S 32.5# | 50 |
|
Additive | Water-reducing agent | 0.5~1.0 | optional |
Fly ash | Should be qualified | 10~30 | optional |
KB-125E/600 cleaning terrazzo floor machine also has following data:
Equipment type | Model 400 | Model 500 | Model 600 |
moulding speed | 6-8pcs/min | 5-6pcs/min | 5-6pcs/min |
main frame power | 7.5kw | 7.5kw | 7.5kw |
main frame weight | 5T | 7T | 8T |
external dimension | 2700*1600*2480mm | 3300*1680*2700mm | 3460*1830*2750mm |
our KB-125E/600 cleaning terrazzo floor machine also has following charactor:
-- KB125E also can make roof tiles. includes main tile, ridge tile, end tile...etc
- KB125E also can make TURBSTONE with length reach 100cm more. sand, cement, cobblestones and water.
-- each kind tile has module, we can open any modules of designs from customers
-- about tile, single layer & double layers are both available
-- very easily operated by workers. one machine need 2-3 people. workers need 2-3 hours are able to learn completely.

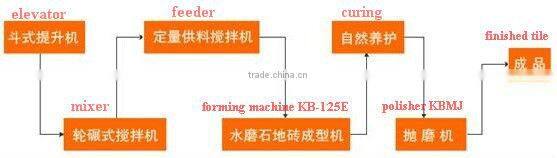

Production process of KB-125E/600 cleaning terrazzo floor machine
1. Moulding
Water will be got rid of during production, the pressure should be over 100tons((The pressure gauge indicates over 13MPa) and the pressing time should not be less than 3 seconds.
Change the filter net on lower mould in time, usually 2~3 times each shift. If water polluted and muddy, then filter net should be changed, otherwise tile’s quality will be affected.
2. Curing
Generally, wet tiles should be naturally cured 24 hours on the pallets, and humidity and temperature should be controlled at the same time. Take away pallets when tile surface solid, water tiles everyday in the first week, and water amount subject to humidity. It’s better to put tile in vertical way and 28- day curing time is needed before on sale
3. Color Painting
Color is painted after tile completely dried and dusted (water moisture content not over 2%). First painting for bottom layer with temperature range 50°C~60°C, after dried then paint the surface layer.
floor tiles samples for KB-125E/600 cleaning terrazzo floor machine :
KB-125E/600 cleaning terrazzo floor machine WALL TILES:
functional products of KB-125E/600 cleaning terrazzo floor machine by changing modules
details equipment of KB-125E/600 cleaning terrazzo floor machine
for details information, pls feel free to contact with me of following, if have time, welcome to visit our factory.
