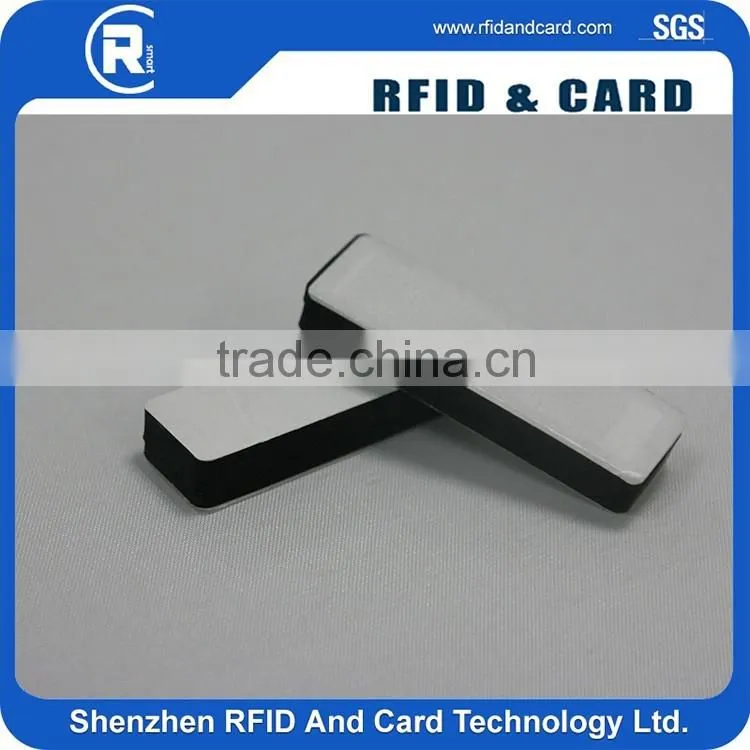

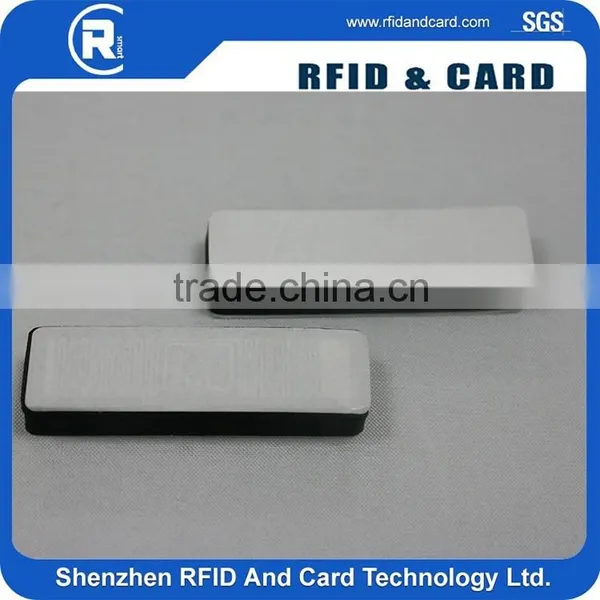

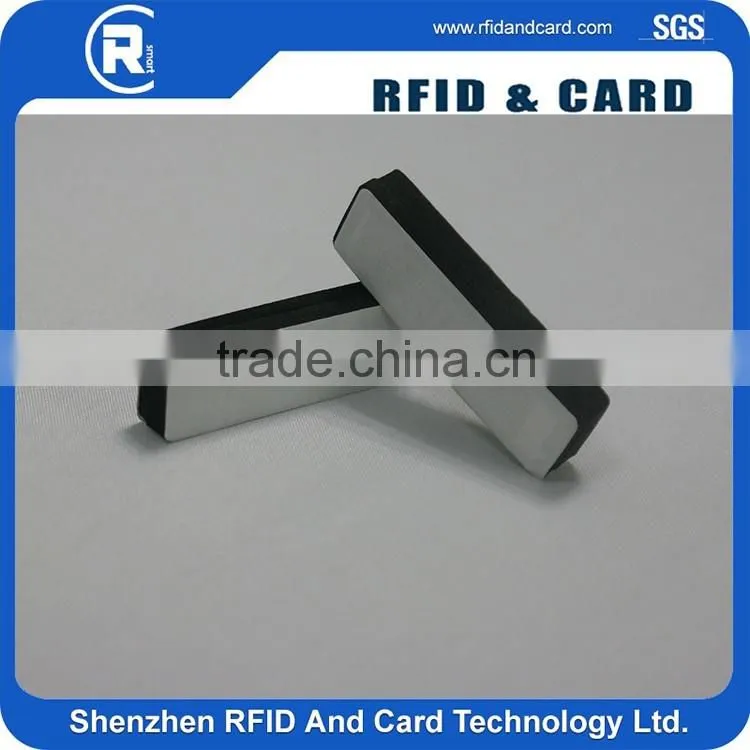

Long range EPC Class 1 Gen 2 ISO-18000-6C UHF RFID Metal tag with Foams

FOB Price

USD $0.17 - $0.17 / Piece

1000 Pieces(Min.Order)

Product Details

Place of Origin:

China

Model Number:

RFID

Product code	Long range EPC Class 1 Gen 2 ISO-18000-6C UHF RFID Metal tag with Foams
Product Category	Passive RFID antenna
Antenna Material	paper+foams
Chip	H3
Frequency	860--960MHz
RF Protocol	ISO-18000-6C EPC Class 1 Gen 2
Capacity	512 User Bits
Working life	100000 times / 10 years
Antenna size	17*70mm
tag size	73*23mm
Thickness	0.8+-0.04mm
Weight	0.1g
Working temperature	-5~60 / 20% ℃ ~80% RH
Storage temperature	20~30 / 20% ℃ ~60% RH
Packing	by customized
Read Distance	up to 5m depending on antenna geometry and reader configuration
Shelf life	1 year in anti-static bag at 20~30 / 20% ℃ ~60% RH)
Application	Smart advertisement, Goods and device authentication, Call request, SMS, Call to action,Voucher and coupons, Bluetooth or Wi-Fi pairing, Connection handover, Product authentication, Mobile companion tags, Electronic shelf labels, Business cards

Handling

Inlays with ink marks are defective, do not use.
RFID Inlays or labels are sensitive product, do not bend or stretch
Static-free bag will be use for packing; always keep environmental static charge to a minimum.
Unico solution reserves the right to modify, change, supplement or discontinue product offerings at any time without notice
All products from Unico Solution should be tested by the customer/user thoroughly to ensure the product meets the particular requirements. Unico Solution does not represent that this product is fit for any particular purpose or use.

Packaging & Shipping

Packaging Details:	pices in bag
Delivery Detail:	5workingdays
