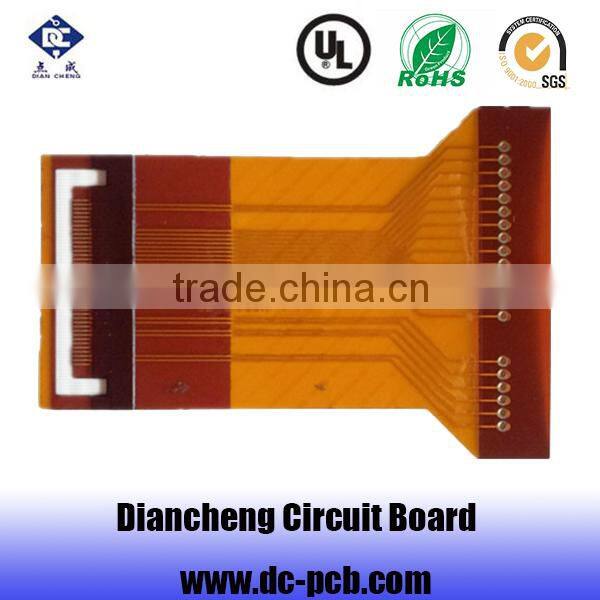

Help CenterWhirlpool Washing Machine Pcb Assy Lna Smd Wireless Ultrasonic Transducer
Related Products
-
Pcb Mount ac dc Gps Tracker Pcb Board Film Capacitor Capacitor CoverUS$ 0.01 - 199MOQ: 1 Piece -
Printed Circuit Board Assembly by Pcb ManufacturerUS$ 0.1 - 1,000MOQ: 1 Piece
-
Circuit Board of Welder Sony Ccd Pcb Board by Pcb ManufacturerUS$ 0.1 - 1,000MOQ: 1 Piece
-
Top 10 Pcb Suppliers in China by Pcb ManufacturerUS$ 0.1 - 1,000MOQ: 1 Piece
-
Amplifier Pcb Board by Pcb ManufacturerUS$ 0.1 - 1,000MOQ: 1 Piece
flexible pcb for led pcb board for led light bar single sided pcb for scooter CEM-1 pcb KB-5150 pcb NanoBoard 3000 Modular Enclosure (Grey) Semiflexible PCBs FR1-R8700 pcb HDI Rigid Flex PCBs Rigid-flex PCBs Split flexible PCBs
"Meet what customer need" is our service principle and "Quick response, Professional Service & Strive for the best" is our service guideline.
Our sales and customer service team is always ready to answer your questions-provide quotation within 4 hours after receiving quotation information, track and report the status of product whenever, on-time shipping etc.
Lead free HASL PCB
-Lead free HASL Surface finish required to meet ROHS compliant
-FR4 material with 0.2mm-3.2mm boards thickness
-Copper weight:0.5OZ,1OZ,2OZ,3OZ
-4-4mils track width spacing
-0.2mm min finished hole size
-Certificate: UL, ROHS, T/S16949
-Company management: ISO9001:2000
-Markets: Europe, America, Asia
Specifications | Details |
Material Type | FR-4, CEM-1, CEM-3, Aluminium Clad,Arlon*,Teflon,Taconic, Rogers*, Polyimide*, Kapton,Dupont |
Material Thickness ( in inches) | 0.062”, 0.080”, 0.093”, 0.125”, 0.200”, 0.047”, 0.031”, 0.030”, 0.005" |
Layer count | 1 to 8 Layers |
Max. Board Size | 6000mm*1000mm |
IPC Class | Class II, Class III , Class 1 |
Annular Ring | 5 mil/side or Greater (Min. Design) |
Finish Plating | Solder(HASL), Lead Free Solder(HASL), ENIG (ELectroless Nickel Immersion Gold), OSP, Immersion Silver,Immersion Tin, Immersion Nickel, Hard Gold, Other |
Copper Weight | 0.5OZ-7OZ |
Trace/Space Width | 3 Mils or Greater |
Drill Clearance | 0.1mm(laser drilling) |
Plated Slots | 0.036 or Greater |
Smallest Hole (Finished) | 0.1mm or Greater |
Gold Fingers | 1 to 4 Edge (30 to 50 Micron Gold) |
SMD Pitch | 0.080” - 0.020” - 0.010” |
Soldermask Type | LPI Glossy, LPI-Matte, SR1000 |
Soldermask Color | Green, Red, Blue, Black, White, Yellow, |
Legend Color | White, Yellow, Black, Red, Blue,green,Matte green,matte green |
CNC Route Point | Any |
Minimum Route Width | 0.031” |
Scoring | Straight Lines, Jump Scoring, Panel Edge to Edge, CNC* |
Body Gold | HARD*, IMMERSION* (up to 50 MICRON GOLD) |
Data File Format | Gerber 274x with embedder aperture |
Fab. Drawing Format | DXF, HPGL, DWG, PDF, Gerber |
E.T Testing | Flying Probe, Single Sided, 1up Plate, Clampshell, Net List |
Counter Sink / Counter Bore | Availiable up to 0.250 Diameter |
Control Impedence | Yes |
Blind Vias / Buried Vias | Yes |
Peelable Mask | Yes |
Carbon | Yes |
| Lead Time (working day) | 1 layer | 2 layers | 4 layers | 6 layers | 8 layers | 10 layers | |
| Sample | Fastest | 1 wd | 1 wd | 2 wd | 3 wd | 3 wd | 5 wd |
| Standard | 3 wd | 4 wd | 6 wd | 7 wd | 8 wd | 10 wd | |
| Production | Standard | 6 wd | 7 wd | 12 wd | 13 wd | 14 wd | 16 wd |
Packaging Detail: | Anti-static bag, bubble pack, carton box,Vacuum... |
Delivery Detail: | 10-15Days, delivery just-in-time |
Shenzhen Diancheng Circuit Board Co. Ltd is a hightech enterprise specialized in high precision doublesided and multilayer board manufacturing. We were established in 2006 and located in Shajing Street, Shenzhen, China. We have a highquality professional technical management, and strong quality assurance team and over 250 employees. Our monthly capability is 15,000 square meters. Our products are widely used in computers, peripheral devices, telecommunications, domestic appliances, instruments, apparatus, industrial equipment, automobile, microelectronics, LCDs, LEDs and other fields.
Our company occupies 5,000squaremeter modern production plant, has advanced professional production and inspection/testing equipment imported from Europe, the US and Japan, and operates standard management system strictly. We have established particular research system and long-term scientific development plan, and thoroughly implements ISO 9001:2000 and 5S management system.
Q1:What is the Minimum Order Quantity (MOQ)?
A1: Sample order or small order is acceptable.
Q2:How much do I need to pay for your OEM service?
A2:No need to pay extra cost if order quantity over 500 pieces.
Q3:What is the lead time?(How long will it take to prepare my goods?)
A3:2-3days for sample orders, 10-15 days for bulk orders.(The exact time will be based on the requirements)
